All stock codes associated to this product
990FXEXTREME3, MBDASR990EX3

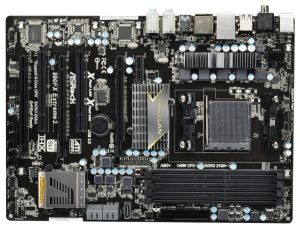

990FX Extreme3
- ASRock DuraCap (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors
- Digi Power, Supports AM3+ Processor, 8-Core CPU
- Supports Dual Channel DDR3 2100(OC)
- Supports AMD Quad CrossFireX , 3-Way CrossFireX and CrossFireX
- Supports NVIDIA Quad SLI and SLI
- 2 x USB 3.0, 5 x SATA3, 1 x eSATA3
- Supports XFast USB, XFast LAN Technologies
- Supports On/Off Play Technology, Graphical UEFI BIOS, AXTU, APP Charger, SmartView, Turbo UCC
- 7.1 CH HD Audio with Content Protection, supports THX TruStudio
- Free Bundle : CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite, 1 x 3.5mm Audio Cable
Features
XFast LAN Technology
ASRock XFast LAN is a smart productivity tool to help you manage your priorities of internet applications, simplify your digital life and accomplish more. The innovative features include : Internet Application Prioritization, Lower Latency in Game, Traffic Shaping and Real-Time Analysis of Your Data. It's the smartest way to control your web programs.
LAN Application Prioritization
You can configure your application priority ideally and/or and new programs.
Traffic Shaping
You can watch YouTube HD video and download files simultaneously.
Lower Latency in Game
After setting online game priority higher in XFast LAN, it can lower the latency in game.
Real-Time Analysis of Your Data
With the status window, you can easily recognize which data streams you are currently transferring.
ASRock XFast USB Technology - Faster Than Your Imagination!
ASRock XFast USB Technology redefines the new standard in high performance computing. Proving once again to be the pioneer in motherboard industry, ASRock XFast USB Series Motherboards integrate with the latest XFast USB Technology which delivers the world's fastest USB data transfer speed. According to the below graph, it shows that the ASRock XFast USB technology can even boost USB 3.0 performance up to 302.99%!
AM3+ 8-Core Processor Support
This board is designed to build up the most powerful system and delivers the most demanding technology for users nowadays. Just enjoy next generation computing with ASRock 8-Core CPU Ready motherboard.
Digi Power
By adopting digital pulse-width modulation (PWM), the ASRock motherboard can provide CPU Vcore voltage more efficiently and smoothly. Compared to analog PWM, digital PWM can optimize the CPU power solution and provide a proper and stable Vcore for the processor.
C.C.R. (Combo Cooler Retention Module)
The unique combo cooler retention module greatly improves heat dissipation and is backward compatible with AMD previous AM3/AM2+ coolers.
On/Off Play Technology
Even when the system is powered off (in ACPI S5 mode), On/Off Play Technology still allows users to enjoy the great audio experience from the portable audio devices through the PC speaker.
NVIDIA® SLI Ready
SLI is a brand name for NVIDIA® multi-GPU solution. The technology allows a pair of graphics cards to be used in a single computer to improve graphics performance.
ATI™ CrossFireX Technology
CrossFireX is a brand name for ATI™ Technologies multi-GPU solution. The technology allows a pair of graphics cards to be used in a single computer to improve graphics performance.
Graphical UEFI The Revolutionary BIOS Interface
Unified Extensible Firmware Interface (UEFI) is a revolutionary BIOS utility which offers tweak-friendly options in an advanced viewing interface. Compared with traditional BIOS design, the latest UEFI utility provides lots improved functions. The major features of UEFI include:
1. Graphical Visual Experience UEFI provides an improved visual interface with colorful icons and makes your computing environment more versatile to replace the traditional dull BIOS page.
2. Mouse Enabling Besides keyboard control, you can freely use mouse to select your ideal settings in UEFI as well.
3. Supports 3TB bootable HDD - UEFI breaks the limitations of 2TB bootable HDD on traditional BIOS. With UEFI, you can enjoy 3TB bootable HDD size.*
Free Bundle - Cyberlink MediaEspresso 6.5 Trial
CyberLink MediaEspresso 6.5 trial now supports hardware transcoding and is optimized to accelerate conversion of all your favorite media files for your favorite portable players. Now you can easily display your favorite movies, songs and photos on iPhone, iPad, PSP, Xbox, Youtube, Facebook etc. Compile, convert and enjoy images and songs as much as you want and enhance your videos to new levels with TrueTheater Technology. Try it today!
THX TruStudio
THX TruStudio is specially designed to bring the same great audio experience found in live performances, films, and recording studios to the PC.
MAGIX Multimedia Suite
The ultimate solutions to enhance your media experience. From music management, music creation, video editing to photo management. Simply do more with your media than you ever thought possible.
mufin playerThe next generation music player plays all standard audio formats, manages large music collections, helps you discover music, offers a free online hard drive and more.
Music Maker SilverThe easiest way to arrange, remix, record and create your own music. Develop your musical style now - without any prior skills.
Video easy SEWith this program you can easily edit your movies, add transitions, text and background music, and even quickly enhance image and sound quality.
Photo Manager 10Put an end to your digital photo chaos and organize your photo collection with ease. The program is fully equipped for fast import, photo and video clip management, photo editing and presentation.
AXTU - The All-in-1 Tuning Software
ASRock Extreme Tuning Utility (AXTU) is an all-in-one software to fine-tune different features in an user-friendly interface, which includes Hardware Monitor, Fan Control, Overclocking, OC DNA and IES. In Hardware Monitor, it shows the major readings of your system. In Fan Control, it shows the fan speed and temperature for you to adjust. In Overclocking, you are allowed to adjust the CPU frequency, ratio and some voltages for optimal system performance. In OC DNA, you can save your OC settings as a profile and share with your friends. Your friends then can load the OC profile to their own system to get the same OC settings. In IES (Intelligent Energy Saver), the voltage regulator can reduce the number of output phases to improve efficiency when the CPU cores are idle without sacrificing computing performance.
Turbo UCC
One Click for All-in-One Function!
Turbo UCC technology provides you an all-in-one solution to unlock the hidden cpu cores in the CPU, get the amazing system performance boost by auto-overclocking, and running the system in a certainly lower power consumption level as well. When you press "X" when switch on the computer, the system will automatically reboot itself, after that, the system will execute the Turbo UCC function. Enabling Turbo UCC, it will automatically help you to unlock the extra CPU core to enjoy an instant performance boost, and the system performance will boost up by overclocking CPU frequency, memory frequency and all related voltage settings! Different from normal high-energy consumption for overclocking or system upgrading process, ASRock Turbo UCC can allow an energy-saving overclocking or system upgrade computing operation!
Product Specifications
General |
CPU |
- Support for Socket AM3+ processors - Support for Socket AM3 processors: AMD Phenom II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors - Supports 8-Core CPU - Supports UCC feature (Unlock CPU Core) - Digi Power Design - 4 + 1 Power Phase Design - Supports CPU up to 140W - Supports AMD's Cool 'n' Quiet Technology - FSB 2600 MHz (5.2 GT/s) - Supports Untied Overclocking Technology - Supports Hyper-Transport 3.0 (HT 3.0) Technology |
Chipset |
- Northbridge: AMD 990FX - Southbridge: AMD SB950 |
Memory |
- Dual Channel DDR3 memory technology - 4 x DDR3 DIMM slots - Supports DDR3 2100(OC)/1866/1600/1333/1066/800 non-ECC, un-buffered memory - Max. capacity of system memory: 32GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
|
BIOS |
- 32Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 1.1 Compliance Wake Up Events - Supports jumperfree - SMBIOS 2.3.1 Support - CPU, VCCM, NB, SB Voltage Multi-adjustment |
Audio, Video and Networking |
Graphics |
- n/a |
Audio |
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) - Premium Blu-ray audio support - Supports THX TruStudio |
LAN |
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Broadcom BCM57781 - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
Expansion / Connectivity |
Slots |
- 3 x PCI Express 2.0 x16 slots (PCIE2/PCIE3 @ x16 mode; PCIE4 @ x4 mode) - 1 x PCI Express 2.0 x1 slot - 2 x PCI slots - Supports AMD Quad CrossFireX , 3-Way CrossFireX and CrossFireX - Supports NVIDIA Quad SLI and SLI |
SATA3 |
- 5 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5 and RAID 10), NCQ, AHCI and "Hot Plug" functions |
USB 3.0 |
- 2 x Rear USB 3.0 ports by Etron EJ168A, support USB 1.0/2.0/3.0 up to 5Gb/s |
Connector |
- 5 x SATA3 6.0 Gb/s connectors - 1 x IR header - 1 x COM port header - 1 x HDMI_SPDIF header - 1 x Power LED header - CPU/Chassis/Power FAN connector - 24 pin ATX power connector - 8 pin 12V power connector - Front panel audio connector - 3 x USB 2.0 headers (support 6 USB 2.0 ports) |
Rear Panel I/O |
I/O Panel - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x Coaxial SPDIF Out Port - 1 x Optical SPDIF Out Port - 6 x Ready-to-Use USB 2.0 Ports - 2 x Ready-to-Use USB 3.0 Ports - 1 x eSATA3 Connector - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
Other Features / Miscellaneous |
Unique Feature |
- ASRock Extreme Tuning Utility (AXTU) - ASRock Instant Boot - ASRock Instant Flash - ASRock APP Charger - ASRock SmartView - ASRock XFast USB - ASRock XFast LAN - ASRock On/Off Play Technology - Hybrid Booster: - CPU Frequency Stepless Control - ASRock U-COP - Boot Failure Guard (B.F.G.) - Turbo 50 / Turbo 60 CPU Overclocking - Turbo UCC |
Support CD |
- Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, AMD Fusion, AMD Fusion Media Explorer, ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; ASRock MAGIX Multimedia Suite - OEM) |
Accessories |
- 1 x ASRock SLI_Bridge_2S Card - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables (optional) - 1 x 3.5mm Audio Cable (optional) |
Hardware Monitor |
- CPU Temperature Sensing - Chassis Temperature Sensing - CPU/Chassis/Power Fan Tachometer - CPU Quiet Fan - CPU/Chassis Fan Multi-Speed Control - Voltage Monitoring: +12V, +5V, +3.3V, Vcore |
Form Factor |
- ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm - All Solid Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors) |
OS |
- Microsoft Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit compliant |
Certifications |
- FCC, CE, WHQL - ErP/EuP Ready (ErP/EuP ready power supply is required) |
