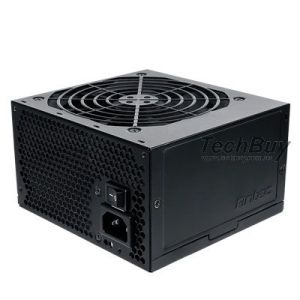

VP650P
BASIQ SERIES
The VP650P is crafted for quality, performance and incredible value. This entry-level solution gives you everything you need in a power supply. No twinkly lights or glittery paint jobs - a 120 mm fan for effective and quiet cooling, dual +12V rails for amazingly stable power and heavy-duty protection circuitry for peace of mind, no matter how demanding your system. And it comes with all the assurance of Antec's AQ2 Antec Quality 2 year limited warranty. All the features, none of the waste: for builders that are strictly business, the VP650P is strictly power.
- 650 WATT ATX12V V2.3
- 120mm Fan
- Continuous Power
- Active PFC
- 82% Efficiency
SPECIFICATIONS:
- 650 Watts of Continuous Power
- Up to 85% efficiency
- Up to 92% power available on +12V rails
- 120 mm fan delivers quiet, reliable cooling
- ATX12V version 2.3 compliant
- Dual +12V rails ensure greater system stability
- ErP Lot 6: 2010 compliant assuring efficiency and low standby power consumption
- Active Power Factor Correction with PF: 0.99 for higher efficiency and less power grid pollution
- Heavy-duty protection circuitry on all rails prevents damage from a variety of dangers:
- Over current protection (OCP)
- Over voltage protection (OVP)
- Short circuit protection (SCP)
- Over power protection (OPP)
- Over temperature protection (OTP)
- AQ2 – Antec Quality 2 year limited warranty on parts and labor
- MTBF: 100,000 hrs
INPUT:
Voltage: 230VAC ±10%
Frequency Range: 47Hz – 63Hz
Current: 5A @ 230VAC
Efficiency: Up to 85%
OUTPUT:
Voltage: +5V, +3.3V, +12V1, +12V2, 12V, +5VsB
Max. Load: 24A, 24A, 35A, 35A, 0.5A, 2.5A
+12V1, 12V2 Maximum combined output: 600W (50A)
+3.3V and +5V Maximumum combined output: 135W
Total Continuous Power: 650W
ENVIRONMENT:
Safety Approvals: CE, TUV, CB, C-Tick, CCC, Gost-R,KCC
Net Weight: 4.1 lbs / 1.9 kg
Size: 3.4” (H) x 5.9” (W) x 5.5” (D), 86 mm (H) x 150 mm (W) x 140 mm (D)
POWER SUPPLY CONNECTORS ASSORTMENT:
1 x 24(20+4)-pin
1 x 8(4+4)-pin ATX12V/EPS12V
2 x 8(6+2)-pin PCI-E
6 x SATA
4 x Molex
1x Floppy
