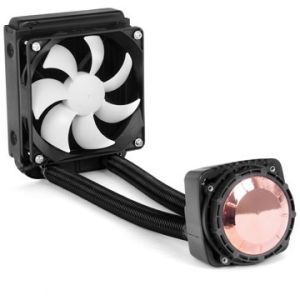

ThermalTake BigWater A80 All In One Liquid Cooling System - Universal Socket Support, High Performance Waterblock, High Efficiency Radiator, VR Control Knob

No Longer Available

Part Number:

181841

(?) Brand:

ThermalTake Web Site

Manuf No:

CLW0214

Shipping Weight:

3 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

CLW0214, CFANCLW0214, CFAN-CLW0214

Features

Ideal Thermal Mechanical Design Maximizes Cooling Performance
- Powerful fan blows the heat of radiator out to the chassis to maximize cooling performance.
- Fan duct design ensures that heats can be expelled from chassis entirely.
- High performance cold-plate accelerates the heat conductivity.
- The high reliability pump provides quick heat change to lower temperature.
- The VR function fan (1200~2500rpm) allows users to adjust speed with different needs.

All-In-One Liquid Cooling Solution Provides the Convenience of Installation
- Pre-filled coolant offers good ability of heat conductivity.
- Low evaporation tube decreases the loss of coolant effectively.
The high-tech sealed circulation system prevents leaking issue.

Universal Socket Compatibility & Accessory Package
- All-in-one back-plate design, support all Intel and AMD platform
- Universal socket support:
Intel: LGA2011, LGA1366, LGA1156, LGA1155, LGA775
AMD: FM2, FM1, AM3, AM2+, AM2

Features


High Performance Waterblock	High Reliability Pump	High Efficiency Radiator

Powerful Cooling Fan	VR Control Knob

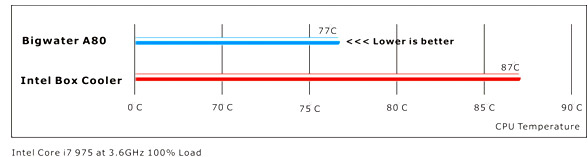

Performance

Installation

Intel LGA 1366/1156/1155/775 Installation		AMD AM3/AM2+/AM2 Installation
Step 1		Step 1

Before Installation, please verify the CPU platform and select the appropriate holes for your CPU socket.		When you install an AMD CPU, please make sure that the back plate side facing away from the motherboard shows AMD.
Step 2		Step 2

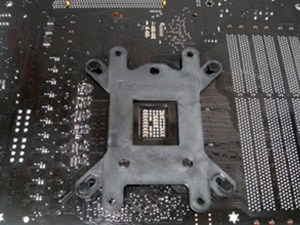

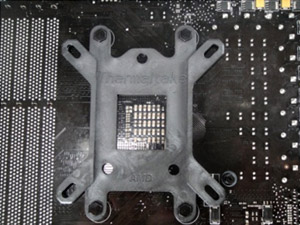

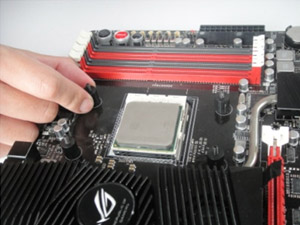

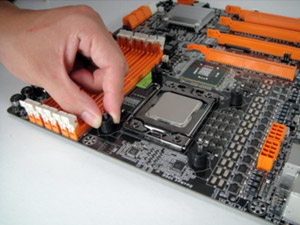

When you install an Intel CPU, please make sure that the back plate side facing away from the motherboard shows INTEL. From beneath the motherboard, carefully attach the back plate and insert the posts through the motherboard mounting holes. Fasten the plastic spacers over each post.		From beneath the motherboard, carefully attach the back plate and insert the posts through the motherboard mounting holes. Fasten the plastic spacers over each post.
Step 3		Step 3

Remove protective cover from waterblock before attaching on the CPU.		Fasten the AMD mounting clips on waterblock with screws.
Step 4		Step 4

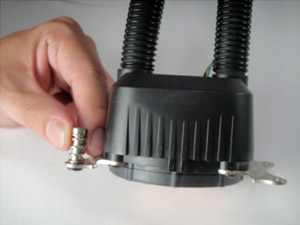

Fasten the Intel mounting clips on waterblock with screws. Assemble screws, retention springs and mounting clips with rubber rings together.		Assemble screws, retention springs and mounting clips with rubber rings together.
Step 5		Step 5

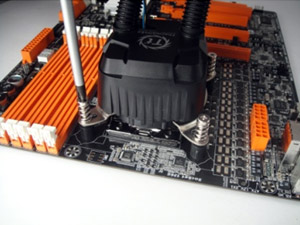

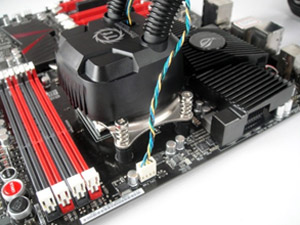

Place the assembled waterblock onto the CPU and tighten it on each posts.		Place the assembled waterblock onto the CPU and tighten it on each posts.

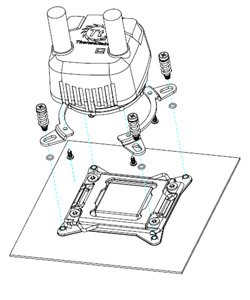

Intel LGA 2011 Installation

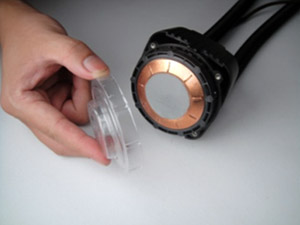

Remove protective cover from waterblock before attaching on the CPU.

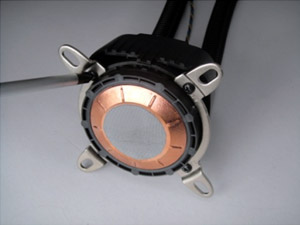

Fasten the Intel mounting clips on waterblock with screws.

Assemble screws, retention springs and mounting clips with rubber rings together.

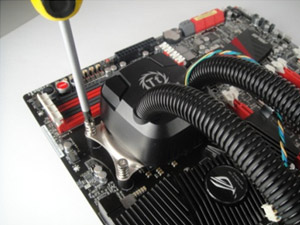

Place the assembled waterblock onto the CPU and fasten it on motherboard.

Fan and Pump Connection		Install Radiator

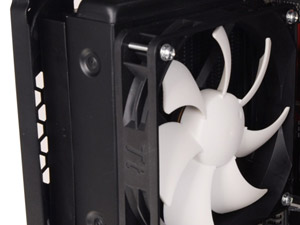

Connect the fan and pump connectors to free headers on motherboard. Installation complete.		Mount radiator to fan housing and secure with screws.
