HOME / Back -> Cooling -> CPU Coolers -> Thermolab

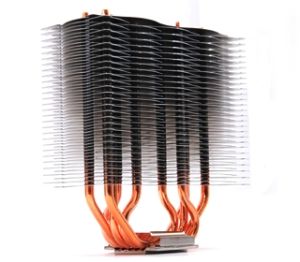

Thermolab Baram Air Flow CPU Cooler - Intel LGA1366/LGA775, AMD AM3/AM2+/AM2 - Heatsink Only(Fans Not Included)

IMG 1 of 1
No Longer Available
Part Number:
182063
(?) Brand:
Thermolab Web Site
Manuf No:
TL-BARAM
TLBARAM
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Date Added:
21/11/2011
Details Files Images & Video
All stock codes associated to this product
TLBARAM, TL-BARAM
BARAM
  • BARAM (wind), the 'air flow' is Korean, which means, expect the best cooling performance is a product for a cooling mania

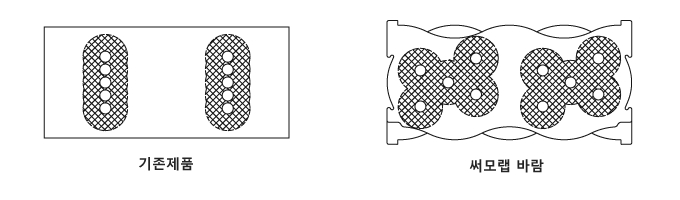

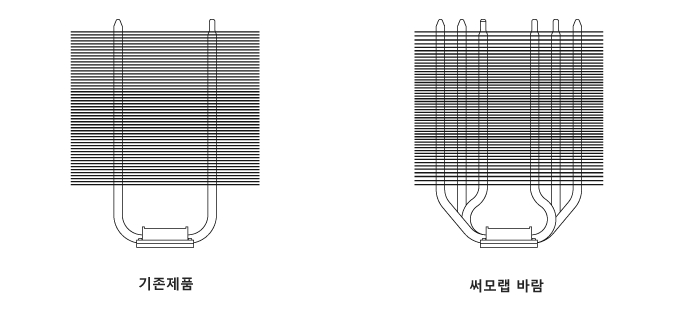

Effective as an array of heat pipes maximizes heat distribution effects.

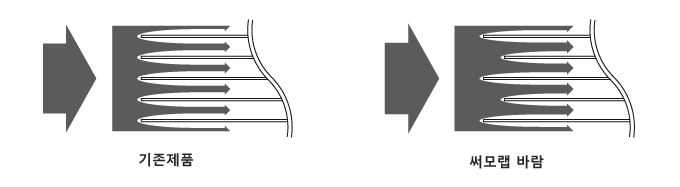

Minimize the resistance of the air entering.


Chukdonghyeong optimized pin spacing is designed to be a fan.

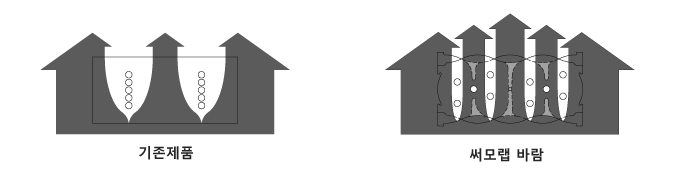

Fins laminated air tunnel formed inside will accelerate the flow of air.



CPU can be applied

  • Socket specifications: Intel Socket 1155, 1156, 1366, 775CPUs / AMD Socket FM1, AM3, AM2 +, AM2 CPUs
  • CPU's heat output: up to 250 Watt

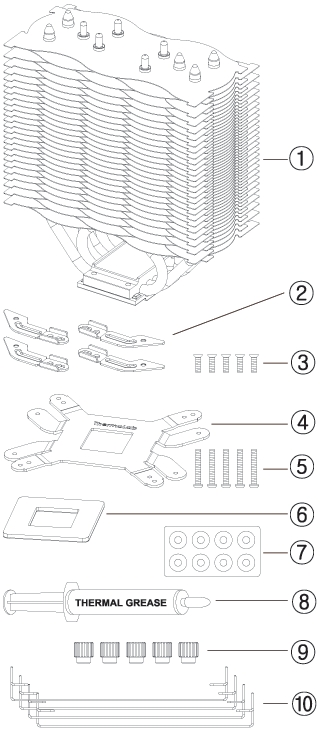

Components of the product

  • Heatsink assembly: 1SET (BARAM)
  • Smart Clips: 4 (2 x 2 reviews)
  • Smart Clip fixing bolts: 5 (4 + 1 extra).
  • Backplate: 1
  • Heatsink mounting bolts: 5 (4 + 1 extra).
  • Rubber pads: 1 (LGA775, AM2, AM2 +, AM3 only)
  • Isolation Washers: 5 (4 + 1 extra).
  • Thermal grease: 1
  • Hand Nuts: 5 (4 + 1 extra).
  • Fan wire clip: 4 (2 sets)

* This product does not contain a fan. To normal performance 120mm fan must be purchased separately.

Product Specifications

Product baram
Shape 67 132 160 (L x W x H) mm
Weight 625g
Material Pure Copper and Aluminum
Dissipation Area 7,580 cm

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1-year Manufact.

Full manufacturers warranty details are available at the manufacturers (Thermolab) web site.
