All stock codes associated to this product
LF22TSCTBAN/XY, 1795086, 8806071804422
TS220C
S-Series 22” all-in-one LED Zero Client (HDX)
End User Computing Made Simple
With the Samsung Zero Cilent Station Citrix
Samsung S Series is built with great features and capabilities. The S series is an innovative approach to monitor stand design due to its ability to house circuitry and other devices within its casing. This facilitates a slim design and minimises the amount of loose cables and wires. The S series can also be wall mounted, providing businesses with great versatility and interior design options. The S series model comes in three different screen sizes and two different models to suit individual business needs.

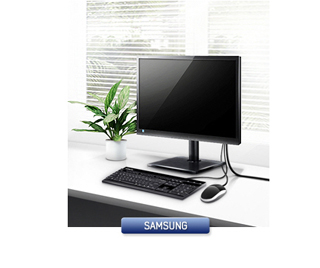

All-in-one design
Samsung's innovative Cloud Display integrates a thin client into the LED* screen. Its contemporary and innovative design ensures that keeping your work environment clean and tidy is simple. The benefit of not having a separate thin client box is that you can use your desk space in a productive manner. These innovative features come together perfectly for an all-in-one design that increases desktop space.
* Samsungs LED TVs utilise LCD Screens with LED edge lights.

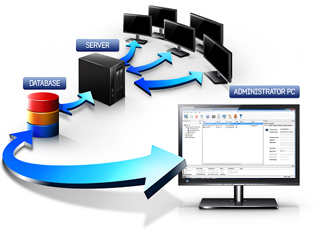

Remote management S/W
Samsungs Cloud Monitor delivers amazing levels of convenience by using the remote management software of MagicRMS Pro. It delivers a centralised operation and saves administrators the time and hassle associated with physically having to visit each device for routine checks. Other benefits include real-time device status monitoring, an inventory process and finally remote upgrading of firmware to all devices. With so many standout benefits for day-to-day operations, the MagicRMS software helps to make the office environment productive.
Security you can trust
Consolidate almost all of your resources on the data centre and deliver your applications and data over LAN/WAN via and encrypted protocol HDX to your zero client. Access your critical data and applications while they are maintained and controlled in the data centre.

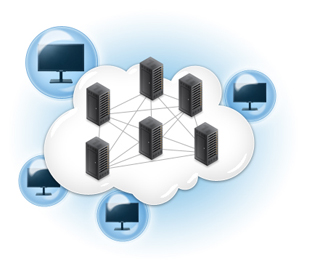

Little Maintenance
Because all software and data is stored on the centralised host platform. The network is easy to install and easy to maintain.
|
Features and specifications are subject to change without prior notification.
|
| Display |
Screen Size |
21.5" |
| Type |
LED Display |
| Brightness |
250cd/m |
| Contrast Ratio |
1,000:01 |
| Resolution |
1,920 x 1,080 |
| Response Time |
5 minutes |
| Viewing Angle (Horizontal/Vertical) |
170 / 160 |
| Color Support |
16.7 Million |
| Interface |
D-Sub |
1ea |
| DVI |
1ea |
| USB |
6ea |
| Audio In/Out |
Headphone / line out, MIC in |
| Special |
RJ45 |
| General Feature |
Embedded Function |
[OS] LINUX [Client SW] Citrix Zero Client |
| Additional PC S/W |
Magic RMS Pro |
| Energy/Environment Mark |
TCO, Engergy Star |
| Design |
Color |
Black |
| Stand Type |
Swivel / Pivot / Height Adjustable |
| Wall Mount |
100 x 100mm |
| Power |
Power Supply |
100 - 240V (50 / 60Hz) |
| Power Consumption |
Max: 50W, Typical: 30W |
| Power Consumption (Stand-by) |
Less than 2.7W |
| Type |
14V 4.5A 63W External Adapter |

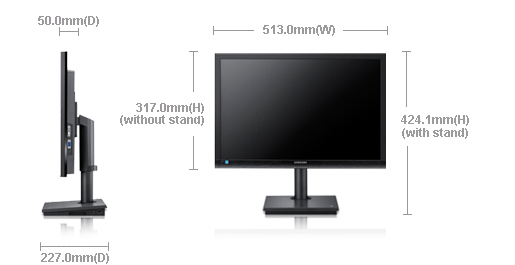

| Dimension |
Set Dimension with Stand (WxHxD) |
513.0 x 424.1 x 227.0mm |
| Set Dimension without Stand (WxHxD) |
513.0 x 317.0 x 50.0mm |
| Package Dimension (WxHxD) |
576 x 382 x 179mm |
| Weight |
Set Weight with Stand |
4.87kg |
| Package Weight |
6.74kg |
| Accessory |
Cables |
DVI, Power Cable, Power Cord |
| Others |
User Manual, Quick Setup Guide, Warranty Card |
