All stock codes associated to this product
BDL5530EL, 1826639
Philips

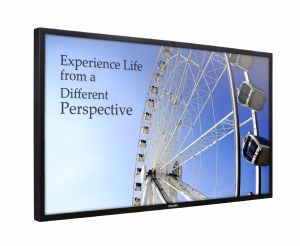

LED Display
140 cm (55")
multimedia Full HD
BDL5530EL
Enthrall your audiencewith the narrow bezel, full HD LED display
Deliver startlingly clear images in a more eco-friendly way with the edge LED display. High on performance and reliability, yet low on power consumption, it is ideal for projects where no compromise is accepted.
Operational flexibility
Edge LED Backlight
Smart insert in the backcover to place a small pc
Lower total cost of ownership
SmartPower for energy saving
Brightness automatically adjusts with ambient conditions
Advanced anti image sticking function
Optimized for public viewing
Full HD LCD display, 1920x1080p
Enhanced zoom feature supports tiled matrix applications
Sustainable and safe
Temperature sensor measures the health condition
Complies with RoHS standards to care for the environment
Highlights
Edge LED Backlight
Experience an even dispersion of light with cutting edge LED technology. White LED's (light emitting diodes) are positioned around the rim of the panel to give a more even spread of light. This results in even lower power consumption, less heat to dissipate, and a true, uniform color range.
SmartPower
The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.
Zoom function for tiled matrix
The internal zoom function enables easy implementation of a video wall matrix, without the need for expensive external equipment. Capable of a vidiwall of 25 displays by dividing up to 5 displays each horizontally and vertically.
Advanced anti image sticking
Static images left on-screen for extended periods of time may leave a "ghost image" or image sticking effect on LCD displays. Although image sticking in LCD displays is not permanent, you want to prevent this to happen, especially in locations where content is shown 24/7.
Automatic brightness control
The adjustment of display settings to correspond with ambient light without user intervention.
Full HD LCD display 1920x1080p
This display has a resolution that is referred to as Full HD. The state-of-the-art LCD screen technology has the full high-definition widescreen resolution of 1080 progressive lines, each with 1920 pixels. This allows the best possible picture quality for HD input signals with up to 1080 lines. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.
brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.
Compliant with RoHS standards
Philips designs and produces display products in compliance with strict Restriction of Hazardous Substances (RoHS) standards that restrict lead and other toxic substances that can harm the environment.
Temperature sensor
This public dispay contains a temperature sensor to monitor the internal health condition. In case the internal temperature surpasses the preset threshold, automatically two internal fans will be activated to cool down the display to normal conditions.
Specifications
Picture/Display
Diagonal screen size: 54.6 inch / 138.6 cm
Panel resolution: 1920x1080p
Optimum resolution: 1920 x 1080 @ 60 Hz
Brightness: 400 cd/m²
Contrast ratio (typical): 4000:1
Response time (typical): 6.5 ms
Aspect ratio: 16:9
Viewing angle (H / V): 178 / 178 degree
Pixel pitch: 0.21 x 0.63 mm
Display colors: 1.07 Billlion
Picture enhancement: 3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement
Supported Display Resolution
Computer formats
Resolution
Refresh rate
640 x 480
60, 67, 72, 75Hz
800 x 600
56, 60, 72, 75Hz
1024 x 768
60Hz
1280 x 768
60Hz
1280 x 800
60Hz
1360 x 768
60Hz
1366 x 768
60Hz
1440 x 900
60Hz
1600 x 1200
60Hz
1920 x 1080
60Hz
1920 x 1200
60Hz
Video formats
Resolution
Refresh rate
480i
60Hz
480p
60Hz
576p
50Hz
576i
50Hz
720p
50, 60Hz
1080i
50, 60Hz
1080p
50, 60Hz
Connectivity
PC: VGA-in D-Sub 15HD, VGA-out D-Sub 15HD, DVI-D x1, RS232 D-Sub9, RS232 D-sub9 output, 3.5 mm PC audio input x1
AV input: HDMI x1, Audio (L/R) x2, Composite (BNC) x1, S-video x1
Other connections: Component RCA x1
Convenience
Placement: Portrait, Landscape
Tiled Matrix: Up to 5 x 5
Screen saving functions: Pixel Shift, Low Brightness
Signal Loop Through:: RS232, VGA
Keyboard control:: Hidden, Lockable
Remote control signal:: Lockable
Ease of installation: AC Out, Carrying Handles, Smart Insert
Energy saving functions:: Ambient light sensor, Smart Power
Safety control functions:: Heat Control, Temperature Sensor
Packaging:: Reusable box
Network controllable: RS232
Dimensions
Bezel thickness: 24.6mm / 0.95"
Set dimensions (W x H x D): 1259.8 x 732.1 x 59 mm
Set dimensions in inch (W x H x D): 49.6 x 28.8 x 2.2 inch
VESA Mount: 200 x 400 mm
Operating conditions
Temperature range (operation): 0 - 40 °C
Relative humidity: 5 - 90 %
MTBF: 60,000 hour(s)
Power
Mains power: 90 - 264V AC, 50/60Hz
Consumption (On mode): 123W
Standby power consumption: <1W
Sound
Built-in speakers: 2 x 12W RMS
Accessories
Included accessories: Remote Control, Batteries for remote control, AC Power Cord, VGA cable, User manual on CD-ROM, Quick start guide
Miscellaneous
Bezel: Metallic Anthracite
Warranty: Europe/North America: 3 years
On-Screen Display Languages: English, French, German, Italian, Polish, Turkish, Russian, Simplified Chinese
Regulatory approvals: CE, FCC, Class B, CCC, RoHS, UL/cUL
