All stock codes associated to this product
BDL5545ET, 1820351
Philips
LCD monitor
140 cm (55")
multimedia Full HD

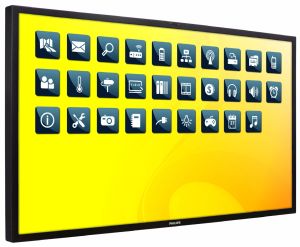

BDL5545ET
Find a new level of audience interaction
with the multi touch display
Get even closer to your audience than ever before with the touch screen LCD display. Fast, precise and extremely durable, its high performance is matched by excellent reliability and
functionality.
Operational flexibility
Optical Multi-touch screen for additional user interaction
Display Port for faster graphics support
Open Pluggable Specification Slot
Smart insert in the backcover to place a small pc
Monitor is network controllable for remote management
Enhanced zoom feature supports tiled matrix applications
Lower total cost of ownership
SmartPower for energy saving
Advanced anti image sticking function
Brightness automatically adjusts with ambient conditions
Optimized for public viewing
Full HD LCD display, 1920x1080p
Slim bezel design for a stylish look
Highlights
Optical Multitouch
A brand new level of client interaction is now possible thanks to the integrated optical touch screen. The sensors on the edge of the screen give you perfect clarity whilst at the same time offering dual touch (multi-touch with Windows 7), opening up all kinds of possibilities for new, interactive applications.
Display Port
Enjoy crystal clear images with the high-bandwidth graphics support of the Display Port. As well as transmitting full high-definition video the Display Port will also transmit audio, thus eliminating the need for extra cables.
OPS Slot
Developed for the Digital Signage market, the Open Pluggable Specification (OPS) slot is designed to make changing or upgrading your media player mere child’s play. Simply plug your media player in to the display - and you’re ready. No matter whether you have an entry level, mid-range or high-end media player, OPS is fully compatible bringing you a lower TCO over the longer term.
Smart insert
Professional PC's are part of most public signage installations. Quite often they add additional depth to the public display and a lot of cable clutter. This public display contains a Smart insert in the backcover that will fit many professional small form factor PC's. In addition it offers provisions for efficient cable management.
SmartPower
The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.
Full HD LCD display 1920x1080p
This display has a resolution that is referred to as Full HD. The state-of-the-art LCD screen technology has the full high-definition widescreen resolution of 1080 progressive lines, each with 1920 pixels. This allows the best possible picture quality for HD input signals with up to 1080 lines. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.
Advanced anti image sticking
Static images left on-screen for extended periods of time may leave a "ghost image" or image sticking effect on LCD displays. Although image sticking in LCD displays is not permanent, you want to prevent this to happen, especially in locations where content is shown 24/7.
Automatic brightness control
The adjustment of display settings to correspond with ambient light without user intervention.
Network controllability: RS232
Network controllability allows user to control and adjust monitors remotely through RS232 protocol.
Slim bezel
A slim bezel design adds a stylish look to a public display to nicely blend in most environments. Furthermore this design is ideal for tiled matrix video walls.
Zoom function for tiled matrix
The internal zoom function enables easy implementation of a video wall matrix, without the need for expensive external equipment. Capable of 2x2, 3x3, 4x4 and 5x1 configurations.
Specifications
Picture/Display
Diagonal screen size: 55 inch / 139.7 cm
Panel resolution: 1920x1080p
Optimum resolution: 1920 x 1080 @ 60 Hz
Brightness: 500 cd/m²
Contrast ratio (typical): 5000:1
Response time (typical): 8 ms
Aspect ratio: 16:9
Viewing angle (H / V): 178 / 178 degree
Display colors: 1.07 Billion
Picture enhancement: 3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement
Supported Display Resolution
Computer formats
Resolution
Refresh rate
640 x 480
60, 67, 72, 75Hz
800 x 600
56, 60, 72, 75Hz
1024 x 768
60Hz
1280 x 768
60Hz
1280 x 800
60Hz
1280 x 1024
60Hz
1360 x 768
60Hz
1366 x 768
60Hz
1440 x 900
60Hz
1600 x 1200
60Hz
1920 x 1080
60Hz
1920 x 1200
60Hz
Video formats
Resolution
Refresh rate
480i
60Hz
480p
60Hz
576p
50Hz
576i
50Hz
720p
50, 60Hz
1080i
50, 60Hz
1080p
50, 60Hz
•MAC 640 x 480: 60 Hz
•MAC 832 x 624: 60 Hz
•MAC 1152 x 870: 60 Hz
Connectivity
PC: DVI-D x1, RJ45, VGA-in D-Sub 15HD, VGA-out
D-Sub 15HD, RS232 D-Sub9, RS232 D-sub9 output, 3.5 mm PC audio input x1
AV input: HDMI x1, Component (BNC) x1
AV output: Audio (L/R) x1
Other connections: OPS, Display Port, AC-out
Audio output: Audio L/R x1
Convenience
Tiled Matrix: Up to 5 x 5
Picture in picture:: PBP, PIP, POP
Signal Loop Through:: RS232
Keyboard control:: Hidden, Lockable
Remote control signal:: Lockable
Ease of installation: AC Out, Carrying Handles, Smart Insert
Energy saving functions:: Ambient light sensor, Smart Power
Packaging:: Reusable box
Network controllable: RS232
Monitor Controls: Touch screen
Picture performance: Advanced color control
Placement: Landscape, Portrait
Operating conditions
Temperature range (operation): 0 - 40 °C
Relative humidity: 0 - 90 %
MTBF: 60,000 hour(s)
Power
Consumption (On mode): 350W (Max)
Standby power consumption: <1W
Mains power: 90 - 264 V/AC, 50/60Hz
Sound
Built-in speakers: 2 x 7W (RMS)
Output power (RMS): 2 x 7W
Accessories
Included accessories: Remote Control, Batteries for remote control, AC Power Cord, VGA cable, User manual on CD-ROM, Quick start guide
Optional accessories: Fixed wall mount, Flexible wall mount, Ceiling mount
Miscellaneous
Bezel: Metallic Anthracite
On-Screen Display Languages: English, French, German, Italian, Polish, Turkish, Russian, Simplified Chinese
Regulatory approvals: CE, FCC, Class B, UL/cUL, CCC, RoHS
Packaging dimensions
EAN: 87 12581 60489 9
Number of products included: 1
Packaging type: Carton
Dimensions
Bezel thickness: 41 mm/1.6"
Set dimensions (W x H x D): 1299 x 769.8 x 143.7 mm
Set dimensions in inch (W x H x D): 51.1 x 30.3 x 5.7 inch
Product weight: 49.2 kg
Product weight (lb): 108.5
VESA Mount: 400 x 200 mm/400 x 400 mm
