All stock codes associated to this product
BDR207DBK, BDR-207DBK, PI71641, BDR207DBKS, 10BDR207DBKS

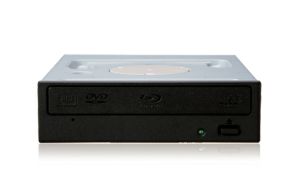

BDR-207DBK
12x Internal BD/DVD/CD Burner. SATA Interface
- Up to 12x writing speed on BD-R & BD-R DL media
- Write up to 50Gbytes on one BD-R DL disc
- QuickStart - Its ready 42% faster than BDR-206DBK
- Backwards compatible with DVD and CD media
OVERVIEW
Need a powerful drive? Already have software? Then the BDR-207DBK is the drive for you. The BDR-207DBK drive is perfect for system builders, for those looking to upgrade to a Blu-ray burner, or for those who already have software.
The BDR-207DBK is an internal SATA drive. It can burn up to 12x on BD-R (25GB) and BD-R dual layer (50GB) media, which is the fastest write speed available! The drive is also backwards compatible, so it can read and write to most DVD and CD formats. Click on the "Specifications" tab to see all supported media formats, as well as the read and write speeds achievable.
Want to watch Blu-ray 3D titles? Well the BDR-207DBK drive is 3D capable. All you need is 3D playback software and a 3D display system and you're ready to go.
Running out of hard drive space? Afraid of losing your valuable files when your hard drive crashes? With Blu-ray BD-R dual layer (DL) discs, you can store the equivalent of 10 single layer DVDs. Now you can have a backup you can trust and with as few discs as possible.
The BDR-207DBK drive has features such as a QuickStart which enables the disc to be ready 42% faster, a Noise Suppression design to minimize noise, an Anti-Dust design to increase durability, and Precision Writing Technology to minimize write errors. And of course being a Pioneer drive, the BDR-207DBK drive supports a wide range of blank media.
DRIVE FEATURES
Faster burning
First in the industry to realize 12x writing on BD-R discs, Pioneer can now achieve 12x writing on BD-R Dual Layer (DL) discs.
Watch 3D movies
The drive is 3D capable. All you need is 3D playback software and a 3D display system.
Get to your files faster
The amount of time between inserting a disc, and that disc being ready has been reduced by 42%.
A quieter drive
With our redesigned disc tray structure, the airflow in our drives is smoothed and operational noise reduced. Enhancements such as tunnel-like air intakes and ducts, plus a smoother interior to the drive suppress noise and provide a quieter experience.
Increased life expectancy
The sound barrier design that traps noise inside the drive also works to keep dust outside the drive. This makes the drive much more dust resistant than previous models and drive failure due to dust is practically nonexistent.
Wide blank media support
Pioneer strives to have best in class performance over a wide range of media – our drives achieve this for a large variety of BD and DVD media. Refer to the drive’s media support list for all supported media and the write speed that can be achieved.
Top quality writing
Our chassis' design maximizes disc stability and write quality by reducing warping at high speed caused by disc vibration, especially on the outer areas of the disc.
WRITE SUPPORT
| BD |
BD-R, BD-R DL, BD-RE, BD-RE DL |
| DVD |
DVD-R, DVD+R, DVD-R DL, DVD+R DL, DVD+RW, DVD-RW |
| CD |
CD-R, CD-RW |
READ SUPPORT
| BD |
BD-ROM, BD-ROM DL, BD-R, BD-R DL, BD-RE, BD-RE DL |
| DVD |
DVD-ROM, DVD-ROM DL, DVD-R, DVD+R, DVD-R DL, DVD+R DL, DVD+RW, DVD-RW |
| CD |
CD-ROM, CD-R, CD-RW |
WRITE SPEED
| BD-R |
BD-R SL/DL = 12x, BD-R LTH = 6x |
| BD-RE |
BD-RE SL/DL = 2x |
| DVD-R |
16x |
| DVD - RW |
6x |
| DVD + R |
16x |
| DVD + RW |
8x |
| DVD + R (Double Layer) |
8x |
| DVD - R (Double Layer) |
8x |
| CD - R |
40x |
| CD - RW |
24x |
READ SPEED
| BD-R |
BD-R SL = 10x, BD-R DL = 8x, BD-R LTH = 6x |
| BD-RE |
BD-RE SL = 10x, BD-RE DL = 6x |
| BD-ROM |
BD-ROM SL = 10x, BD-ROM DL = 8x |
| DVD-ROM (Single) |
16x |
| DVD-ROM (Dual) |
12x |
| DVD-R, DVD-RW |
DVD-R = 16x, DVD-RW = 12x |
| DVD+R, DVD+RW |
DVD+R = 16x, DVD+RW = 12x |
| CD-ROM |
40x |
| CD-R |
40x |
| CD-RW |
24x |
OTHER SPECIFICATIONS
| Data Buffer |
4 MB |
| Mounting Orientation |
Horizontally or Vertically |
| Interface |
Serial-ATA (SATA) |
DIMENSIONS
| Dimensions (inches) |
5.83 (W) x 7.09 (D) x 1.67 (H) |
| Dimensions (mm) |
148 (W) x 180 (D) x 42.3 (H) |
| Weight |
1.65 lbs / 750 g |
