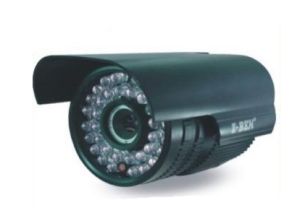

Generic 9008D Security Day & Night Camera - 1/4" Sharp Colour CCD, 420 TVL, 4mm Fixed Lens, Waterproof Housing Design, Metal - Black

IMG 1 of 1
No Longer Available
Part Number:
184987
(?) Brand:
Generic
Manuf No:
9008D
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Date Added:
6/1/2012
Details Files Images & Video
All stock codes associated to this product
9008D, CAM9008D, CAM-9008D
Security Day & Night Camera 4mm Fixed Len, 1/4" Sharp Color CCD, 420 TVL, 36 LED, 50m IR, Metal

Features

  • Waterproof housing design;
  • 8 LED 36pcs
  • IR distance:15-30m.

Specifications:


Imaging Sensor
 1/4 Sharp Color CCD
Effective Pixels(HV) PAL:500582 NTSC:510492
Horizontal Resolution 420TVL
Signal System PAL / NTSC
Horizontal System PAL:15.625KHZ / NTSC:15.734KHZ
Clock FrequencyMHZ PAL:19.3125 / NISC:19.0699
Scanning system 2:1 Interlace
Minimum Illumination 0LUX
Sync.System Internal
S/N ratio =50dB(AGC off)
Electronic shutter PAL:1/50-1/100,000s;NTSC:1/60-1/100,000
Gamma Character 0.05-1.00 Adjustable
Video out 1.0Vp-p,75O
AGC Auto
White Balance ATW/AWB/AWC-set/Manual/Indoor/Outdoor
Built-in lens 8mm
LED(IR distance)

8 LED 36pcs,IR distance 50m
Power supply 12V DC
Currency <400mA
Dimension(mm) 173(L)100(W)91(H)mm
Weight(kg) 0.664kg
Operating temperature -10-50oC
Color Black

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
