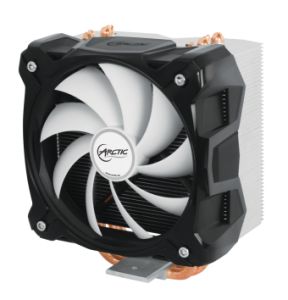

Arctic Cooling Freezer A30 CPU Cooler - AMD FM1, AM3+, AM3, AM2+, AM2, 120mm Fan, 400-1350rpm, 74CFM, 0.3dBA

IMG 1 of 5
No Longer Available
Part Number:
185466
(?) Brand:
Arctic Cooling
Manuf No:
UCACO-FA30001-GB
UCACOFA30001GB
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Date Added:
13/1/2012
Details Files Images & Video
All stock codes associated to this product
UCACOFA30001GB, UCACO-FA30001-GB, ACFRZERA30, AC-FRZER-A30
Freezer A30

AMD CPU Cooler for Enthusiasts

Description

The Freezer A30 is an enthusiast-grade CPU cooler for the AMD socket FM1, AM3+, AM3, AM2+ and AM2. Patented technologies, direct touch heatpipes, precision machining, a fan vibration absorption and a brand new mounting system offers you plenty of overclocking headroom at a minimal noise level.

easy installation

4 Mounting Directions

The Freezer A30 can be mounted in all 4 directions in order to satisfy different air flow preferences due to various PC case and hard ware configurations.

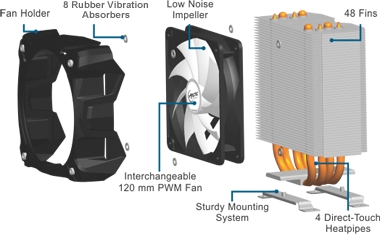

Direct Touch Heatpipe Heatsink

The Freezer A30 heatsink consists of 4 double-sided direct touch heatpipes, 8mm in diameter. A patented process (20 2011 000 71.8) allows us to pack the heatpipes without gaps and thus increase the contact surface and achieve better flatness by precision machining - both leading to an improved heat transfer.


Efficient Heat Dissipation


As a combined result of the 4 direct touch heatpipes, 48 Aluminum fins, an interchangeable 120 mm PWM Fan (ARCTIC F12 PWM), and the famous ARCTIC MX-4 thermal compound (included), the Freezer A30 offers superior cooling performance with a maximum cooling capacity of 320 Watts and lots of headroom for overclocking.

Airflow Direction


Cooling Performance at AMD FX-8150

Freezer A30 (at 1,350 RPM)

37.4 oC*

Boxed Cooler (at 2,850 RPM)

74.7 oC*

Better

Ambient temperature: 25oC | *Heat spreader temperature

Virtually Silent

Due to the low-noise impeller of the ARCTIC F12 PWM fan and the rubber vibration absorbers, the Freezer A30 generates a negligible noise level of only 0.3 Sone even at full speed (1,350 RPM). Furthermore, as controlled by PWM signal, this fan runs only at the optimized speed based on actual needs, which in turns minimizes the noise level further.

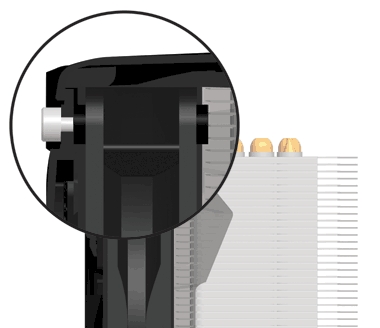

Rubber Vibration Absorbers


Noise Level at AMD FX-8150

Freezer A30 (at 1,350 RPM)


0.3 Sone


Boxed Cooler (at 2,850 RPM)

0.8 Sone

Better


Sturdy Mounting Mechanism

There is no need to worry about the weight of this muscular, yet gentle cooler. The Freezer A30 applies a durable steel mounting clip and a back-plate*. As a result it has an excellent mounting stability and is fully transport-proof.

Interchangeable Fan

Not that you have to replace the fan, but that flexibility is offered!



Technical Data

Max. Cooling Capacity 320 Watts
Heatpipe Direct-Touch 8 mm x 4 (double-sided)
Heatsink Material Aluminum fins x48, 0.5 mm thick
Fan (mm) ARCTIC F12 PWM:
120 mm, 400 1,350 RPM (PWM controlled)
Airflow 74 CFM / 125.7 m/h
Bearing Fluid Dynamic Bearing
Noise Level 0.3 Sone (@1,350 RPM)
Current, Voltage 0.22A, 3.5 - 12V
Dimensions (Product) 100 (L) x 139 (W) x 161 (H) mm
Dimensions (Packaging) 123 (L) x 161 (W) x 187 (H) mm
Net Weight 0.9 kg
Limited Warranty 6 years
itemnumber UCACO-FA30001-GB
UPC 0872767005044
Gross Weight 1.1 kg

Compatibility

AMD

Series Socket Chip
Phenom II X6 AM3
1100T (Black) ,
1090T ,
1075T ,
1065T ,
1055T ,
Phenom II X4 AM3
B95 ,
B93 ,
970 (Black) ,
965 ,
955 ,
945 ,
925 ,
910e ,
910 ,
905e ,
900e ,
820 ,
810 ,
805 ,
630 ,
Phenom II X4 AM2+
940 ,
920 ,
Phenom II X3 AM3
B75 ,
B73 ,
720 ,
710 ,
705e ,
700e ,
Phenom II X2 AM3
B55 ,
B53 ,
565 ,
560 (Black) ,
555 ,
550 ,
545 ,
Phenom X4 AM2+
9950 (140W) ,
9950 (125W) ,
9850 ,
9750 ,
9650 ,
9600 ,
9550 ,
9500 ,
9450e ,
9350e ,
9150e ,
9100e ,
Phenom X3 AM2+
8850 ,
8750 ,
8650 ,
8600 ,
8450e ,
8450 ,
8400 ,
8250e ,
Athlon II X4 FM1 uPGA
631 ,
Athlon II X4 AM3
840 ,
645 ,
640 ,
635 ,
630 ,
620e ,
620 ,
615e ,
610e ,
605e ,
600e ,
Athlon II X3 AM3
460 ,
455 ,
450 ,
445 ,
440 ,
435 ,
425e ,
425 ,
420e ,
415e ,
405e ,
400e ,
Athlon II X2 AM3
B28 ,
B24 ,
B22 ,
270u ,
265 ,
260u ,
260u ,
260 ,
255 ,
250u ,
250e ,
250 ,
245e ,
245 ,
240e ,
240 ,
235e ,
220 ,
215 ,
210e ,
Athlon X2 AM3
5200+ ,
Athlon X2 AM2+
7850 ,
7750 ,
7550 ,
7450 ,
5000+ ,
Athlon X2 AM2
BE-2400 ,
BE-2350 ,
BE-2300 ,
6400+ ,
6000+ (89W) ,
6000+ (125W) ,
5600+ (89W) ,
5600+ (65W) ,
5400+ (89W) ,
5400+ (65W) ,
5200+ (89W) ,
5200+ (65W) ,
5050e ,
5000+ (89W) ,
5000+ (65W) ,
4850e ,
4800+ (89W) ,
4800+ (65W) ,
4600+ (89W) ,
4600+ (65W) ,
4450e ,
4400+ (89W) ,
4400+ (65W) ,
4200+ (89W) ,
4200+ (65W) ,
4050e ,
4000+ (89W) ,
4000+ (65W) ,
3800+ (89W) ,
3800+ (65W) ,
3800+ (35W) ,
3600+ ,
Athlon FX AM2
FX-62 ,
Athlon AM2
LE-1660 ,
LE-1640 ,
LE-1620 ,
LE-1600 ,
4000+ (89W) ,
4000+ (62W) ,
3800+ (89W) ,
3800+ (62W) ,
3800+ (45W) ,
3500+ (89W) ,
3500+ (67W) ,
3500+ (62W) ,
3500+ (45W) ,
3500+ (35W) ,
3200+ (89W) ,
3200+ (67W) ,
3200+ (62W) ,
3000+ (89W) ,
3000+ (67W) ,
3000+ (62W) ,
Sempron AM3
150 ,
145 ,
140 ,
Sempron AM2
LE-1300 ,
LE-1250 ,
LE-1200 ,
LE-1150 ,
LE-1100 ,
3800+ ,
3600+ ,
3500+ ,
3400+ ,
3200+ ,
3000+ ,
2800+ ,
Dual-Core E2-Series FM1 uPGA
E2-3200 ,
Quad-Core A8-Series FM1 uPGA
A8-3850 ,
A8-3800 ,
Quad-Core A6-Series FM1 uPGA
A6-3650 ,
A6-3600 ,
A6-3500 ,
Dual-Core A4-Series FM1 uPGA
A4-3400 ,
A4-3300 ,
Bulldozer AM3+
FX-8150 ,
FX-8120 ,
FX-8100 ,
FX-6120 ,
FX-6100 ,
FX-4120 ,
FX-4100 ,
FX-3150 ,

No additional files, specification sheets, guides or documentation found for product.

Warranty: 6-year Manufact.

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
