All stock codes associated to this product
G540ST850FG0421, ST85FGEVO, ST85F-G-EVO
To make great power supplies even better, SilverStone engineers delved into the details with the Strider Gold series. In order to reduce the already low noise generated by the Strider Gold, they replaced the fan with SilverStones own Air Penetrator , which has superb cooling ability and is equipped with fluid dynamic bearing. This allowed for reprogramming of the fan controller to enable lower fan speed at any given loading condition compared to the predecessor. Various components were also re-tested and replaced with newer versions for minor boost in efficiency and performance. An excellent FF141 fan filter with magnets is even included in the package for use to reduce dust buildup.
With the fan and component upgrades, the Strider Gold Evolution series will again encompass wattage range from 750W to 1200W with 80 PLUS Gold level efficiency, 3% voltage regulation, 3% ripple & noise, and high amperage single +12V rail as its main features. For discerning users looking to get a top-notch power supply with all features covered and more, this is the perfect solution.
Features:

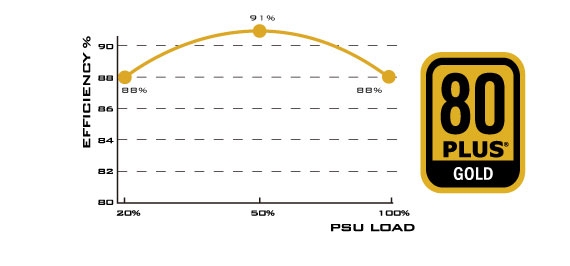

- 80 PLUS Gold certification with high efficiency 88%~91% at 20%~100% loading

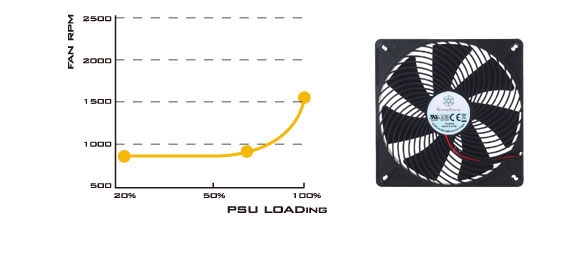

- Ultra silent 139mm Air Penetrator fan with fluid dynamic bearing

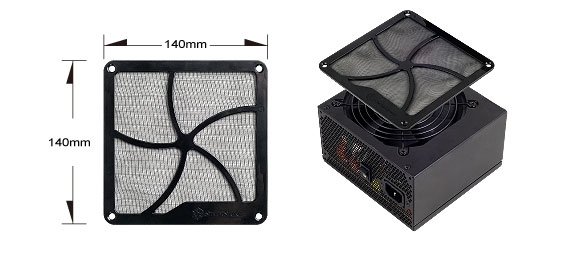

- FF141 magnetized fan filter included

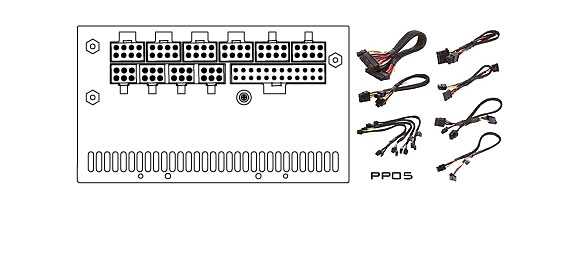

- 100% modular cables
- 850W (950W peak power) 24hour fully continuous power output with 40 operating temperature
- Class-leading single +12V rail with 70A

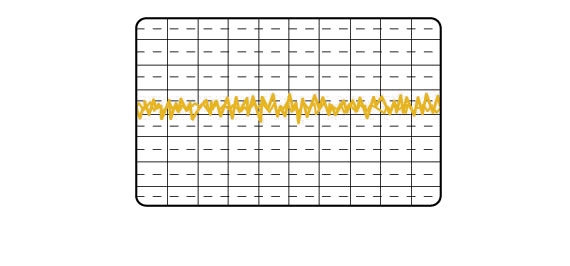

- Strict 3% voltage regulation and low ripple & noise
- Japanese main capacitors
- Dual EPS 8pin with multiple PCI-E 8pin and PCI-E 6pin connectors support
- Support ATX 12V 2.3 & EPS 12V
Specifications:
|
Model No.
|
SST-ST85F-G Evolution
|
|
Max. DC Output
|
850W (Peak 950W)
|
|
Load Range
|
|
|
+3.3V |
+5V |
+12V1 |
+5VSB |
-12V |
|
|
22A |
25A |
70A |
3.5A |
0.3A |
|
|
0.3A |
0.3A |
0.1A |
0.1A |
0A |
|
|
3% |
3% |
3% |
5% |
10% |
|
|
1% |
1% |
1% |
1% |
1% |
|
|
50mV |
50mV |
120mV |
50mV |
120mV |
|
|
combined +3.3, +5V
|
150W
|
|
combined +12V
|
840W / 70A
|
|
Input Voltage
|
90V~264V
|
|
Input Frequency Range
|
47Hz ~ 63Hz
|
|
PFC
|
Active PFC.PF>0.95 at Full Load
|
|
Efficiency
|
88%~91% at 20%~100% loading
|
|
MTBF
|
100,000 hours at 25Cat Full Load
|
|
Operating temperature
|
0C ~ 40C
|
|
Protection
|
Over Current Protection
Over Power Protection
Over Voltage Protection
Over Temperature Protection
Under voltage protection
Short Circuit Protection
No Load Protection
|
|
Connectors
|
1 x 24 / 20-Pin Motherboard connector 550mm
1 x 8 / 4-Pin EPS / ATX 12V connector 750mm
1 x 8 / 4-Pin EPS / ATX 12V connector 550mm
2 x 8/6-Pin PCIE connector 550mm
2 x 6-Pin PCIE connector 550mm
8 x SATA connector 600mm / 150mm / 150mm/150mm
6 x 4-Pin Peripheral connector 600mm / 150mm / 150mm
2 x 4-Pin Floppy connector 600mm / 150mm / 150mm / 150mm
|
|
Color
|
Black (scratch resistant and lead-free paint)
|
|
Cooling System
|
Ultra silent 139mm Air Penetrator fan with fluid dynamic bearing
|
|
Noise Level
|
17dBA-28dBA
|
|
Dimension
|
150 mm (W) x 86 mm (H) x 180 mm (D)
|
|
Weight
|
3.085 kg
|
|
Certification
|
80 PLUS Gold
|
|
Other
|
GPU Support list
|
