Camera
|
|
Image Sensor
|
1/2.5" progressive scan CMOS
|
|
Picture Elements
|
1920 (H) x 1080 (V)
|
|
Minimum Illumination
|
Color
|
1 Lux (1/30 sec), 0.5 Lux (1/5 sec)
|
|
Shutter Speed
|
Automatic, Manual (1/5 ~ 1/8000 sec)
|
|
White Balance
|
Automatic, Manual (2800 ~ 8500K)
|
|
Lens
|
|
Megapixel
|
Yes
|
|
Day/Night
|
Yes (electronic)
|
|
Lens Type
|
Fixed
|
|
Focal Length
|
3.35 mm
|
|
Maximum Aperture
|
F/2.4
|
|
Mount
|
M12 mm
|
|
Image Format
|
1/3"
|
|
Angle of View
|
Diagonal
|
142
|
|
Horizontal
|
131
|
|
Vertical
|
112
|
|
Operation
|
Focus
|
Focus
|
|
Zoom
|
Zoom
|
|
Iris
|
Iris
|
|
Operation
|
|
Video Compression
|
H.264, MPEG4, MJPEG
|
|
Video Stream
|
Stream 1 from H.264 and MJPEG
Stream 2 from H.264, MPEG4 and MJPEG
|
|
Frame Rate
|
30 fps at 1920 x 1080
* The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).
|
|
Image Setting
|
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed, Backlight Compensation
|
|
Audio Compression
|
G.711, AAC (16 kHz / 16 bit)
* AAC is only supported by GV-System V8.5 or later
|
|
Video Resolution
|
|
Main Stream
|
4:3
|
1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
|
|
16:9
|
1920 x 1080, 1280 x 720, 640 x 360, 448 x 252
|
|
5:4
|
1280 x 1024, 640 x 512, 320 x 256
|
|
Sub Stream
|
4:3
|
640 x 480, 320 x 240
|
|
16:9
|
640 x 360, 448 x 252
|
|
5:4
|
640 x 512, 320 x 256
|
|
Network
|
|
Interface
|
10/100 Ethernet
|
|
Ethernet Protocol
|
HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP)
|
|
Mechanical
|
|
Lens Mounting
|
M12 mm
|
|
Temperature Detector
|
Yes
|
|
Connectors
|
Power
|
DC Jack
|
|
Ethernet
|
Ethernet (10/100 Base-T), RJ-45
|
|
Audio
|
Built-in speaker & microphone
|
|
Local Storage
|
Micro SD/SDHC memory card slot (for Class 6 card or above)
|
|
LED Indicator
|
2 LEDs: Status, LAN
|
|
General
|
|
Operating Temperature
|
0 C ~ 50 C / 32 F ~ 122 F
|
|
Humidity
|
10% to 90% (no condensation)
|
|
Power Source
|
12V DC
|
|
Max. Power Consumption
|
4 W
|
|

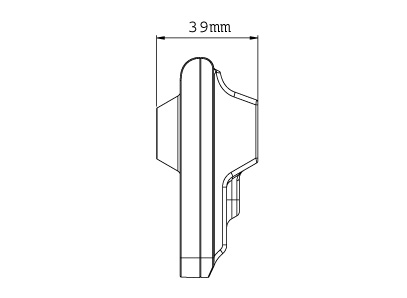

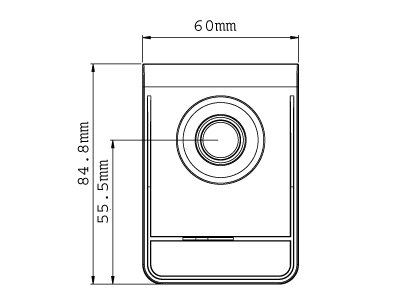

Dimensions
|
60 x 84.8 x 39 mm / 2.36 x 3.34 x 1.54 in
|
|
Weight
|
80 g / 0.18 lb
|
|
Regulatory
|
CE, FCC, C-Tick, RoHS compliant
|
|
Web Interface
|
|
Installation Management
|
Web-based configuration
|
|
Maintenance
|
Firmware upgrade through Web Browser or Utility
|
|
Access from Web Browser
|
Camera live view, video recording, change video quality, bandwidth control, image snapshot, audio, Wide Angle Lens Dewarping, Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, Text Overlay
|
|
Language
|
Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese
* Bulgarian, Dutch, Greek, Indonesian, Lithuanian, Norwegian, Persian, Romanian, Slovakian, Slovenian, Thai and Turkish are only supported in V1.07 or later.
|
|
Applications
|
|
Network Storage
|
GV-NVR, GV-System, GV-Backup Center, GV-Recording Server
|
|
Mobile Phone Support
|
GV-AView for Android Smartphone, GV-Eye HD for iPad, GV-Eye for iPhone and iPod Touch, GV-GView for Windows PDA, GV-MSView for Windows Smartphone, GV-SSView for Symbian Smartphone, 3G-enabled phone.
|
|
Live Viewing
|
IE , GV-MultiView
|
|
CMS Server support
|
GV-Center V2, GV-VSM, GV-Control Center
|
