Enables longer lifespan and lowers overall noise output by dramatically reducing bearing frictions
High Quality Japanese Made Electrolytic & Solid Capacitors
The unique fan blade shape increases airflow and reduce overall noise level.
The patented flower-shape fan edge reduces up to 3% of total noise output.

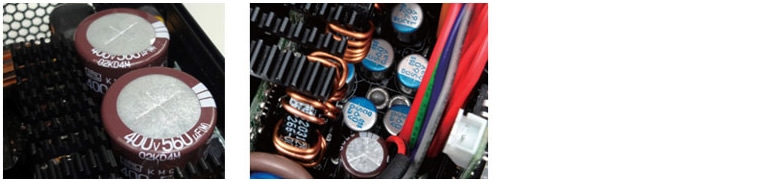

High Quality Japanese Made Electrolytic & Solid Capacitors
Toughpower Grand features 105C /221F Japanese made electrolytic capacitors & solid State capacitors with low ESR, which greatly improves the durability and offers the highest stability and reliability.

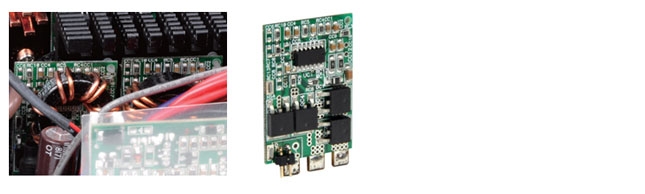

DC-DC Converter & Double Forward Circuit
Unparalleled DC to DC converters for 3.3V & 5V outputs reaches high efficiency
Robust & Dedicated +12V Output
Powerful dual +12V rail(s) to provide the best compatibility for your PC.
Components protected by Fan Delay Cool
keeps the 14cm PSU cooling fan running for 15-30 seconds after system shutdown to dissipate the remaining system heat, thereby prolonging system lifetime.
Hybrid SLI/Cross Fire X & Intel C6 State Mode Support
For best compatibility
For C6 state CPU & Hybrid GPU mode
C6 State CPU Mode
CPU load range from Max. to only 1W.
Nvidia & ATI/AMD multi graphic cards configuration
Hybrid mode will cause graphic cards load range from Max. to only 1W. Toughpower Grand series are able to maintain an ultra tight DC regulation to support the C6 state CPU mode and the hybrid graphic card power saving mode by its ZERO LOAD (0W) Design.
12V Rail Main Connector

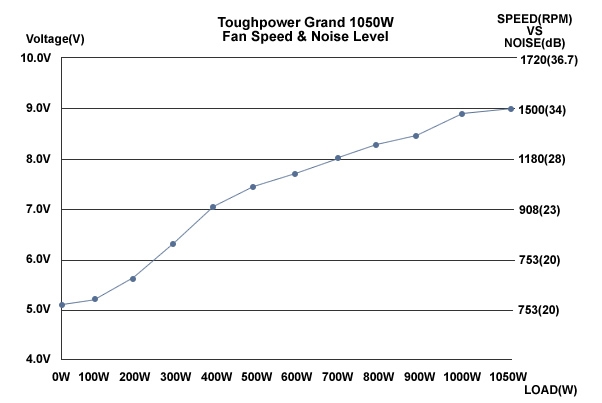

Fan speed & Noise Level
Eco Design
80 Plus Gold Certified

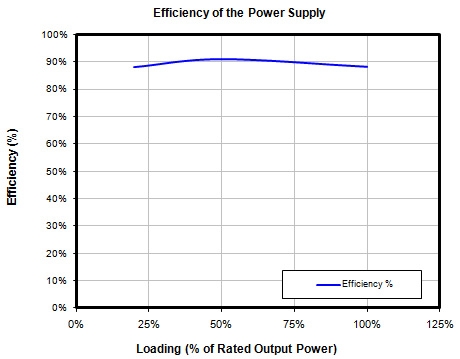

Toughpower Grand saves energy through its high energy efficiency of over 90% and is 80 PLUS Gold certified
ErP Ready
Toughpower Grand fulfils the EU guideline for ErP (Energy-related Products) that are scheduled to apply starting in 2010.
Supports Energy Star 5.0* energy standard:
Toughpower Grand is suitable for use in Energy Star-compatible computers.
Supports Intel Deep Power Down C6 Status:
Toughpower Grand helps your PC system operate more power efficiently.
Corresponds to the EU directives on WEEE and RoHS:
Thermaltake considers its full impact on the environment during manufacturing and maintains green facilities to ensure Toughpower Grand meets WEEE & RoHS requirements.
Output Specifications

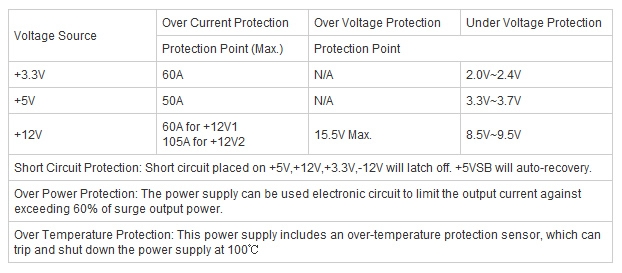

Total Protection

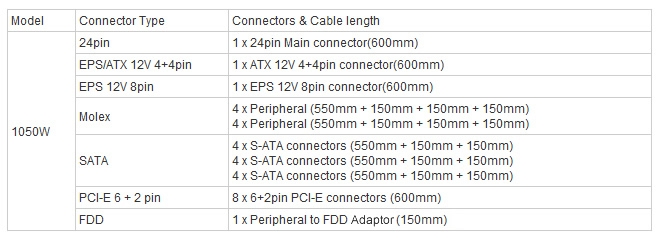

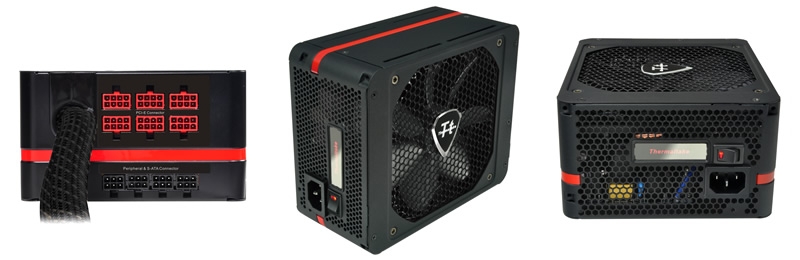

Total Output Connector
Main Power
Connector (24Pin) x 1
EPS/ATX 12V (4+4Pin) x 1
EPS 12V Connector (8Pin) x 1
PCI-E Connector (6+2 Pin) x 8
SATA connector (5Pin) x 12
Peripheral Connector (4Pin) x 8
FDD Adaptor x 1

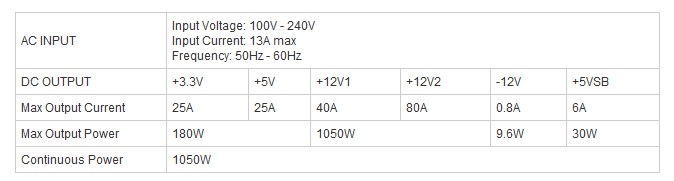

Output Table
General Information

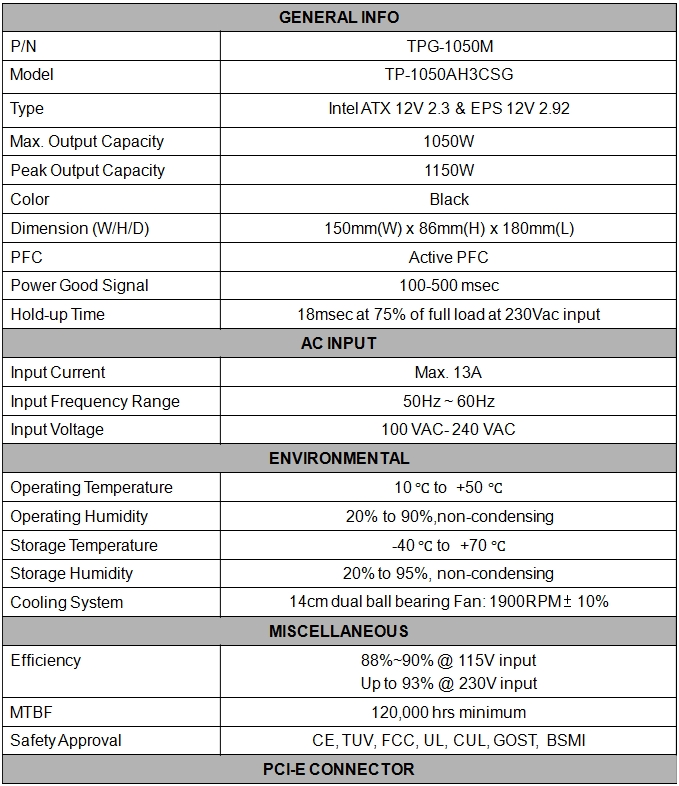

Specifications:
| GENERAL: |
| - Wattage |
1050 Watts |
| - Fan |
140 mm Dual Ball Bearing fan
1900RPM 10%
99.6 CFM
|
| - Efficiency |
up to 93% |
| - PFC |
Active PFC |
| - Hold-Up Time |
16 ms at 75% full @ 230 VAC input |
| - Switches |
ATX Logic on-off additional power rocker switch (with light indicator) |
| - Motherboard Connectors |
24-pin Main Connector
8-pin Power Connector
4+4-pin Power Connector
|
| - Power Good Signal |
100 - 500 ms |
| - Form Factor |
ATX 12V 2.3 & EPS 12V 2.92 |
| - Dimension |
7.08 x 5.9 x 3.4 inch (L)x(W)x(H)
180 x 150 x 86 mm (L)x(W)x(H)
|
| - Warranty |
7 Years |
| - Certifications |
ATI CrossFireX Certified
NVIDIA SLI Certified
80PLUS Gold Certified |
| AC INPUT: |
| - Input Voltage |
100 VAC ~ 240 VAC |
| - Input Current |
Max. 13A |
| - Input Frequency Range |
50Hz ~ 60Hz |
| - Inrush Current |
| - Operating Range |
| - MTBF |
120,000 |
| - RFI / EMI |
CE, TUV, FCC, UL, CUL, GOST, BSMI |
| DC OUTPUT: |
| - Output Table |
| ENVIRONMENT: |
| - Operating Temperature |
10 to 50 |
| - Storage Temperature |
-40 to 70 |
| - Operating Humidity |
20% to 90%, non-condensing |
| - Storage Humidity |
5% to 95%, non-condensing |
| PROTECTION: |
| - Over Voltage Protection |
Yes |
| - Over Current Protection |
Yes |
| - Over Load Protection |
Yes |
| - Over Termperature Protection |
Yes |
| - Under Voltage Protection |
Yes |
| - Short Circuit Protection |
Yes |
