NTC-5909

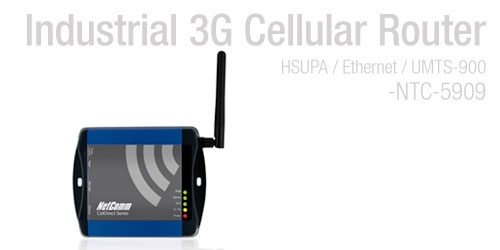

NTC-5909Industrial 3G Cellular Router - Ethernet
Industrial 3G connectivity for various networks and service types UMTS/HSDPA/HSUPA and GSM/GPRS/EDGE.
The NTC-5909 provides full routing capabilities for the support of point-to-point or point-to-multi-point communication links. It accommodates multiple communication interfaces and protocols to meet the requirements of diverse WAN applications. Fitted with a tri-band 3G module, the NTC-5909 supports data transfers over most of the world's 3G/HSPA cellular networks.
Key Features
- Data throughput of up to 7.2 Mbps downlink (HSDPA) and 5.76 Mbps uplink (HSUPA)
- Embedded multi-mode HSUPA/HSDPA/UMTS/EDGE/GPRS/GSM module with Qualcomm MSM6290 chipset
- Embedded Linux operating system and TCP/IP stack
- Auto-sensing Ethernet interface (RJ-45) for mobile broadband connectivity
- Supports PPPoE, RIP, VRRP, Dynamic DNS, DHCP/DHCP relay
- Small form factor, ruggedised enclosure with wall mount option
- DC power plug with screw terminal for easy field termination
- Wide operating temperature range -30C to 70C
- Wide Input voltage range 8 to 28V DC
- Removable SMA antenna
- RoHS compliant environment-friendly
| 3G Module |
Sierra Wireless MC8792V (Qualcomm MSM6290) |
| 3G Networks |
UMTS/HSDPA/HSUPA: Tri-Band 900/1900/2100 MHz |
| 2G Networks |
GSM/EDGE/GPRS: Quad-Band 850/900/1800/1900 MHz |
Benefits
- High data speeds allow for large file transfers in a timely manner
- Economical and flexible alternative to costly fixed-line connection
- Industrial grade product features - robustness suitable for use in demanding environments
- Small form factor for ease of integration into existing enclosures
- Wide input voltage provides flexibility for diverse environments and applications
- Remote diagnostics and configuration minimises field visits and lowers cost of operation
- Centralised user interface for easy configuration and management from any web browser
SPECIFICATIONS
MODELS: NetComm NTC-5909
CPU: Atmel AT91SAM9G20 Microcontroller (ARM9)
MEMORY: 8MB Flash / 32MB DRAM
OPERATING SYSTEM: Embedded Linux
MAXIMUM DATA SPEED: Downlink: 7.2Mbps, Uplink: 5.76Mbps
3G DATA MODEM MODULE CHIPSET: Sierra Wireless MC8792V, Qualcomm MSM6290
UMTS/HSDPA/ HSUPA: Tri-Band 900/2100/1900 MHz
GSM/ EDGE/ GPRS: Quad-Band 850/900/1800/1900 MHz
CONNECTIVITY: 1x 10/100Base-TX Ethernet RJ45 port with Auto MDIX
SIM CARD READER: Mini SIM Card Reader Plug-in/Removal
ANTENNA CONNECTORS: 1x SMA-F
LED INDICATORS: Power, Network Service Type, Tx/Rx Data Traffic, Data Carrier Connection, Network Signal Strength
MANAGEMENT: SNMP, MIB, Web-based Management, System Monitoring, Diagnostic Log Viewer, Firmware Upgradeable via Browser
ROUTING & OTHER FUNCTIONS: DHCP Server/Client/Relay, Static Route, DynDNS, NAT, DNS Masquerading, RIP, VRRP, PPPoE, PPP Dial-in and Dial-out Connections with PAP/CHAP Authorization, NTP, DMZ, NAT (port forwarding)
VPN: VPN pass through
OPERATING TEMPERATURE: -30°C to 70°C
INPUT SUPPLY VOLTAGE: 8 - 28 V DC
STANDBY INPUT CURRENT: 110mA @ 12V DC
3G ACTIVE INPUT CURRENT: 300mA @ 12VDC
MAXIMUM INPUT CURRENT: 560mA @ 12V DC
DIMENSIONS & WEIGHT: 127mm (L) x 103mm (W) x 29mm (D) 235g
REGULATORY COMPLIANCY: A-Tick, RoHS
PACKAGE INCLUDES: External Power Adapter with Captive Plug 100-240V AC to 12V DC/1.5A, Ethernet CAT-5E Cable, Quick Start Guide
