All stock codes associated to this product
AU1000RPO, AU-1000RPO, FSPAM1000PRO, FSP-AM-1000PRO
AURUM PRO GOLD 1000 (AU-1000PRO)
Description:
AURUM Pro Series power supply units is a single rail line-up of FSP Power Supply family with 80 PLUS Gold Certification (>90% efficiency). AURUM Pro Series combines premium quality and efficiency, making it the most ideal choice for those who seek for high performance, reliability and quality at the same time. AURUM PRO series power supply not only smaller in size but also offer best performance and protection to your system. AURUM Pro Series design with dual transformers to maximize efficiency and the arrow-shaped ventilation to provide remarkable air ventilation and super cooling performance. AURUMs sleek design and unique rugged Granite-Touch finishing makes it a Power Supply you can count on for years to come.
AURUM Pro 1000 provides true single rail 1000W output power, featuring 135mm PWM long life fluid dynamic bearing (FDB) fan for quiet operation and with Japanese capacitors for reliability. It also comes with Dual high efficiency transformers to deliver stable power and certifies with 80PLUS Gold rating for over 90% efficiency. For those of you that are active power users, system builders, and performance enthusiasts, FSP AURUM Pro 1000 is your ideal solution for your gaming system or current PC upgrade.
Features:
- 1000-WATT | ATX 2.3 | EPS 2.92 | SLI Certified
- Compatible with Latest Intel/AMD CPUs
- SUPPORTS Intel Core i3/ i5/ i7
- ATI CrossFireX Certified

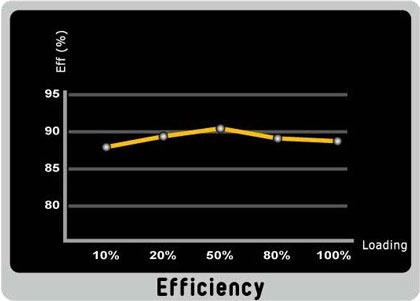

- 80 PLUS Gold Certified | High Efficiency > 90%
- Quiet, long lasting 135mm HDB(Hydro Dynamic Bearing) Fan
- Modular Cable Management System
- Low Profile Flat Cabling System
- True Single +12V output circuits
- Industrial Grade Components
- 105 C Japanese-Made Capacitor
- Arrow-Shaped Ventilation Holes
- Unique Rugged Granite-Touch Finishing
- Thermal Coated (Black) with Gold Crown
- 2x external fan connectors
- 8x 6+2pin PCI-Express graphic card connectors
- Ture Single Reail - Dual Transformer Matrix Design
- Complete Protections: OCP, OVP, SCP, OPP, OTP, UVP
- Energy Saver Standby @ 1-Watt
- Safety Approvals: : OCP, CE, FCC, CB, UL, TUV, GOST, CCC
Dual Transformer Matrix Design True Single Rail
- Dual Transformer Matrix Design minimizes energy loss, and maximizes efficiency and cooling.
- Evenly distributed load current sharing and output power sharing allow balanced utilization and heat dissipation.
- Reduced transformer sizes, and increased power density to optimize air flow and cooling.
Low Profile Flat Cabling System
Optimize airflow and neatness in chassis.
Arrow Flow Technology for Regulated Outward Airflow
Arrow-shaped ventilation makes use of Aero Dynamics and Physical properties of hot air to improve and speed up hot air extraction.
Hybrid Synergy 12V Rail Design
Hybrid Synergy Design on 12V rails with max loads pledges compatibility to graphics cards and systems.
Active PFC
Power factor .99

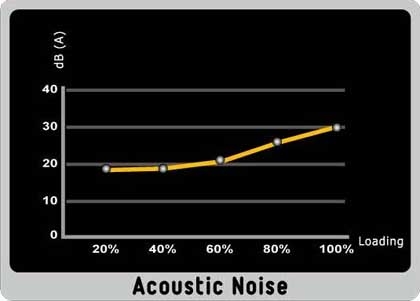

Quiet And Durable Cooling
Power by low noise & long-lasting Fluid Dynamic Bearing (FDB) fan
105 C Japanese-Made Capacitor
Makes prolonged life span possible
Full Safety Approvals
OVP/ UVP/ OCP/ SCP/ OTP/ OPP
S. B. Ready
Supports Intel Latest Platform
5-Year Warranty
Ensure the highest product dependability
Specifications:
GENERAL SPECIFICATIONS:
|
| COOLING Fan(s): |
Single, 135mm HDB Hydro Dynamic Bearing Fan |
| TOTAL POWER OUTPUT: |
1000W TOTAL CONTINUOUS OUTPUT @ 40C |

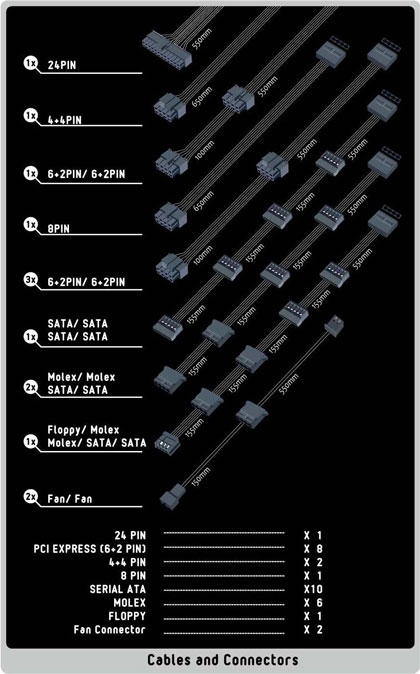

| OUTPUT CONNECTORS: |
MAIN 24PIN, (1)8-PIN, (1)4+4 PIN, (8)PCI-E 6+2Pin, |
| (10)SATA, (6)MOLEX 4-PIN, (1)FDD 4-PIN, (2)Fan Connector |
| NVIDIA SLI SUPPORT: |
YES |
| AMD/ATI CROSSFIRE SUPPORT: |
YES |
| 80PLUS CERTIFIED: |
YES |
| MODULAR CABLE: |
YES |
| SAFETY APPROVAL: |
OCP, CE, FCC, CB, UL, TUV, GOST, CCC |
| MTBF: |
100,000 HOURS @ TYPICAL |
| Unit Dimensions: |
5.90 (W) x 7.0 (D) x 3.37 (H) |
| 150mm(W) X 180mm (D) X 85.8mm (H) |
| Unit Weight: |
LB (S) |
| Retail Package: |
10.6" (W) x 14.1" (D) x 3.9" (H) @ 9 lbs |
INPUT SPECIFICATIONS:
|
| Input Voltage: |
115V AC to 230V AC, 47 ~ 63Hz |
| Power Factor Correction (PFC): |
ACTIVE PFC | FULL RANGE |
| Input Current: |
<14A @ 115 Vrms |
| <8A @ 230 Vrms |
| Input Protection: |
Patented Input Fuse Protection |
OUTPUT SPECIFICATIONS:
|
| +12V RAILS: |
1 |
| Output Voltage: |
+3.3V DC |
| +5V DC |
| +12V DC |
| -12V DC |
| +5Vsb DC (Standby) |
| Output Current: |
25A @ +3.3V DC |
| 25A @ +5V DC |
| 83A @ +12V DC |
| 0.8A @ -12V DC |
| 3.0A @ +5Vsb DC Standby |
| Output Protection: |
Complete OVP, OCP, SCP Protection |
