All stock codes associated to this product
RSA00SPM2D3, RSA00-SPM2D3, PSCORSA00SPM2D3

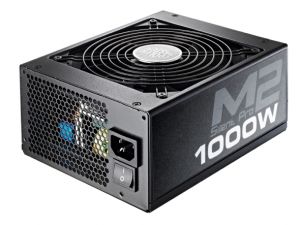

Silent Pro M2 1000W
(RS-A00-SPM2)
Introduction
The Silent Pro M2 is the 2nd Generation of Cooler Masters successful Silent Pro M Series. It features a powerful single 12V rail capable of powering a HighEnd PC with 8 Core CPUs and several VGAs running in SLI or X-Fire. Thanks to its skillfully crafted aluminum-copper heatsink combined with a 135mm Super Silent HDB fan it remains cool and virtually silent in typical operation. The modular cable system with flat wires helps you to create a neat and organized build with excellent airflow resulting in a cool and quiet System overall. The M2 series comes with no less than a 5 year warranty!
Features

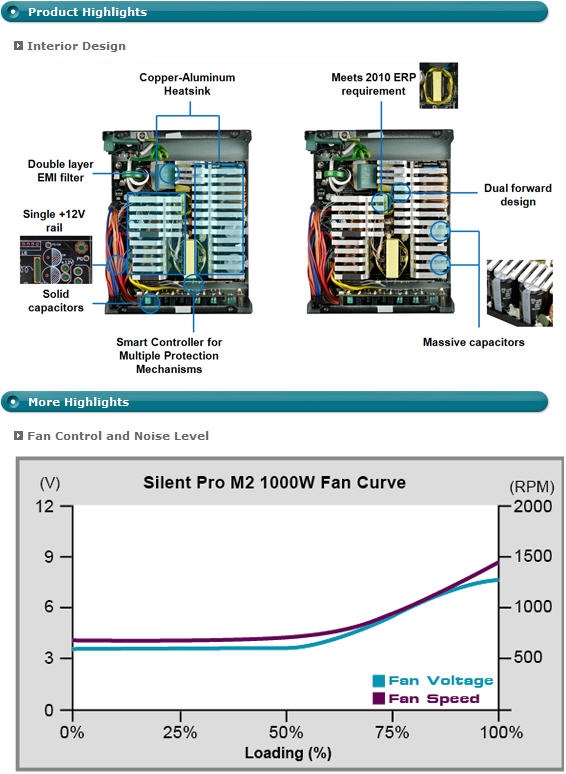

Copper-Aluminum Heat Sink
This slick CM design incorporates an expansive flat surface area for superior heat conductivity out to the aero-dynamic fins, therefore removing heat at an unprecedented rate.
Silent Operation
135 mm Hydraulic Dynamic Bearing Fan for quieter operation
Single 12V Power Rail
Single 12 V Power Rail Tackling challenges from the most power-intensive peripherals head on, this solitary 12 V power rail provides ample power and strong resistance to any overloading up to 80A.
Modularized Cabling
Neatly arranged connectors on the rear plate connect to flat internal cabling improve installment facility while allowing for greater airflow through the PSU.
Intel Compliant
Proficiently prepared to provide a stable power source and connectors for the latest ATX 12V v2.3 Intel processors.
Eco-friendly design: Erp Lot6 Ready!
A maximum 5Vsb current draw target in S5 off-mode of 0.1A for its motherboards and needed to ensure the system will consume < 1W in its off-mode
And More
Multiple updated connectors for all types of interfaces (PCIe, SATA etc.)
Double-Layer EMI Filter Dual protection from electromagnetic interference.
Multiple Protection Design (OVP/UVP/OPP/OTP/SCP)
High reliability with an MBTF of at least 100,000 hours of use.
Five Year Warranty.
Specifications:
| Model |
RS-A00-SPM2 |
| Type |
ATX 12V V2.3 |
| Dimension (W / H / D) |
150 x 180 x 86mm
5.9 x 7.1 x 3.4 inch |
| Input Voltage |
90-264Vac (Auto Range) |
| Input Current |
6 - 12A |
| Input Frequency Range |
47 - 63Hz |
| PFC |
Active PFC (>0.9) |
| Power Good Signal |
100-500ms |
| Hold Up Time |
>17ms |

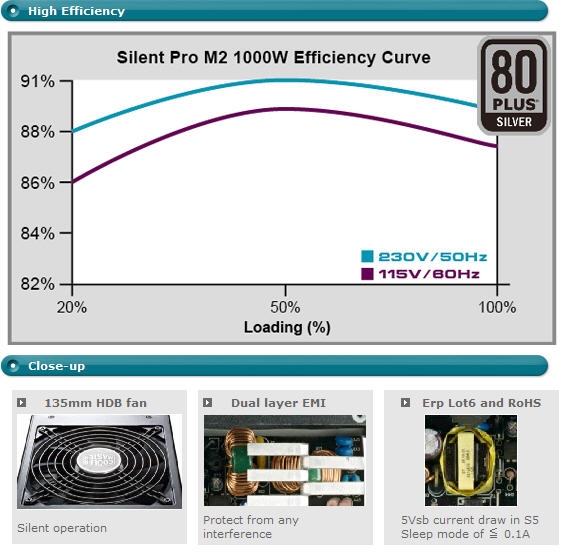

| Efficiency |
88% Typically |
| MTBF |
100,000 Hours |
| Protection |
OVP/UVP/OCP/OPP/OTP/SCP |
| Output Capacity |
1000W |
| Operation Temperature |
0~40C (Nominal Input Voltage) |
| Regulatory |
TUV / CE / UL / FCC / BSMI / GOST / C-tick / KC / CCC |
| Fan |
135mm Hydraulic Dynamic Bearings |
| Certifications |
80 Plus Silver |

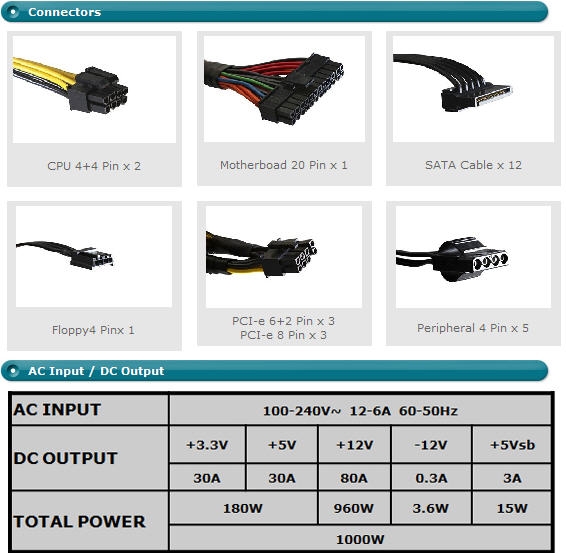

| Connector |
M/B 24 Pin Connector x 1
CPU 4+4 Pin x 2
PCI-E 8 Pin x 3
PCI-E 6+2 Pin x 3
SATA x 12
4 Pin Peripheral x 5
4 Pin Floppy x 1 |
