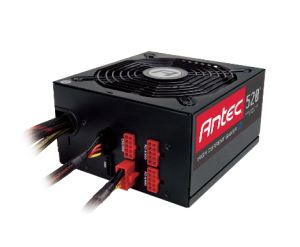

Elite power meets unrivaled performance
Antec's HCG M power supplies are the perfect combination of power and efficiency. The HCG M features special heavy-duty High Current connectors and cabling that supply extreme levels of power, and superb efficiency thanks to 80 PLUS Bronze certification and Active PFC. Highest-quality connectors, Japanese-brand capacitors, and a quiet 135 mm double ball bearing fan complete the package. The HCG-520M features High Current Cable Management and 10-pin modular connectors. If loads of power, High Current engineering and extreme efficiency are what you're after, the HCG M is the PSU for you.
Features:
- 520 watts of Continuous Power
- 80 PLUS Bronze certified up to 87% efficient
- High Current Hybrid Cable Management special 10-pin and 5-pin modular connectors for High Current rail
- Quiet 135 mm Double Ball Bearing cooling fan
- Stealth Wires: all wires darkened for minimal visibility in chassis
- All Japanese brand capacitors for reliability
- Thermal Manager: an advanced low voltage fan control for optimal heat & noise management
- Up to 90% power available on +12V rail
- ATX12V version 2.32 and EPS12V version 2.92 compliant
- Heavy-duty protection circuitry on all rails prevents damage from a variety of dangers:
- Over Current Protection (OCP)
- Over Voltage Protection (OVP)
- Under Voltage Protection (UVP)
- Short Circuit Protection (SCP)
- Over Power Protection (OPP)
- Surge & Inrush Protection (SIP)
- AQ5 Antec Quality 5 year limited warranty on parts and labor
- MTBF: 100,000 hrs
- POWER SUPPLY CONNECTORS ASSORTMENT:
- 1 x 24(20+4)-pin
- 1 x 8(4+4)-pin ATX12V/EPS12V
- 2 x 8(6+2)-pin PCI-E
- 5 x SATA
- 4 x Molex
- 1 x Floppy
- Safety Approvals: UL, cUL, CE, TV, CB, FCC, CCC, C-Tick, BSMI
- Net Weight: 1.8 kg / 4.0 lbs
- Size:
- 86 mm (H) x 150 mm (W) x 160 mm (D)
- 3.4" (H) x 5.9" (W) x 6.3" (D)
Certification:
Output table:
| |
|
+5V |
|
+3V |
|
+12V |
|
-12V |
|
5Vsb |
| Max. Load |
|
24A |
|
24A |
|
40A |
|
0.8A |
|
2.5A |
| |
|
|
|
|
|
|
|
|
|
|
+3.3V and +5V combined maximumm output: 130W
+12V1 maximum output: 40A(480W)
Total Continuous Power: 520W
Input
| Input Voltage |
|
100~240VAC 10% |
| Input frequency Range |
|
50Hz ~ 60Hz |
| Input Current |
|
8A @ 115VAC, 4A @ 230VAC |
| Efficiency |
|
Up to 87% |
