All stock codes associated to this product
ARSMARTREMOTE, AR-SMART-REMOTE
SMART REMOTE
- Package includes MCE Remote Controller and Multi-Angle CIR Receiver
- The world's only MCE Remote Controller supporting "Power On PC from ACPI S5"
- The Multi-Angle CIR Remote Receiver can receive infrared signal in different directions
MCE Remote Controller
The Microsoft MCE (Media Center Edition) function features an entire entertainment center which allows you to enjoy a more convenient way of viewing photos, playing DVDs, watching TV, listening to music, and so on. The MCE Remote Controller not only lets you enjoy the digital programs thoroughly but also allows you to power on/off the system more easily.
The most important is that it is the worlds first MCE remote controller which is able to power on your PC from ACPI S5 mode.
Multi-Angle CIR Remote Receiver

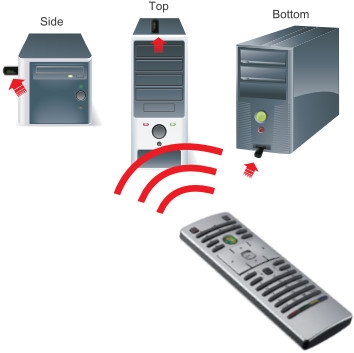

The MCE Remote Controller operates with this exclusive Multi-Angle CIR Remote Receiver. The CIR Remote Receiver is able to receive the multi-direction infrared signal (top, down and front), which is compatible with most of the chassis on the market.
Multi-Angle CIR Receiver
* OS support: Windows Vista / 7 (above Home Premium)
Quick Installation Guide for ASRock Smart Remote
ASRock Smart Remote is only used for ASRock motherboard with CIR header. Please refer to below procedures for the quick installation and usage of ASRock Smart Remote.
|
Step1 :
Find the CIR header located next to the USB 2.0 header on ASRock motherboard.
USB2.0 header (9-pin, blue)
CIR header (4-pin, white)
|
Step3 :
Install Multi-Angle CIR Receiver to the front USB port.
|
|
Step2 :
Connect the front USB cable to the USB 2.0 header (as below, pin 1-5) and the CIR header.
|
