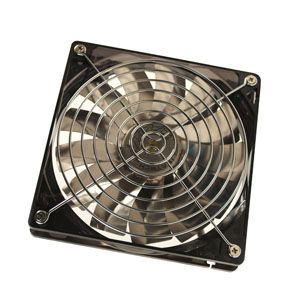

Prolimatech PT-AlVortex14 Fan - 140x140x25mm, Two Ball Bearing, 1600rpm, 65CFM, 15dBA - Black Layer Fan, Red LED

IMG 1 of 1
No Longer Available
Part Number:
188747
(?) Brand:
Prolimatech
Manuf No:
PT-AlVortex14
PTAlVortex14
Shipping Weight:
0.8 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
PTAlVortex14, PT-AlVortex14
Vortex Fan Aluminum Series(140mm fan/Red LED)

Introduction

Turbo fans are widely used for high-power required engines, like aerospace turbojets and auto racing engines.Prolimatech "Vortex Fan Aluminum Series" generates unparalleled airflow with its ultra-thin, high precision alloy of aluminum fan blades.

The excellent overlapped blade design creates formidable air power and minimize the noise level. With low rotation cables, you can not only have a ultra quite turbo fan but also satisfied cooling performance for your computer system. Its two-ball bearing provides long life span.

Features:

  • Thirteen ultra-thin, high precision alloy of aluminum fan blades.
  • Overlapped fan blade design provides extreme high statistic pressure.
  • For ruby red LED at the corners of fan frame.
  • Three choices of fan speed, 1600 RPM, 1200 RPM and 900 RPM.
  • Two ball bearing for longer life span.
  • Light weight at only 152g.(With fanguard:195g)
  • Finished Coating fan guard included for safety.

Specifications:

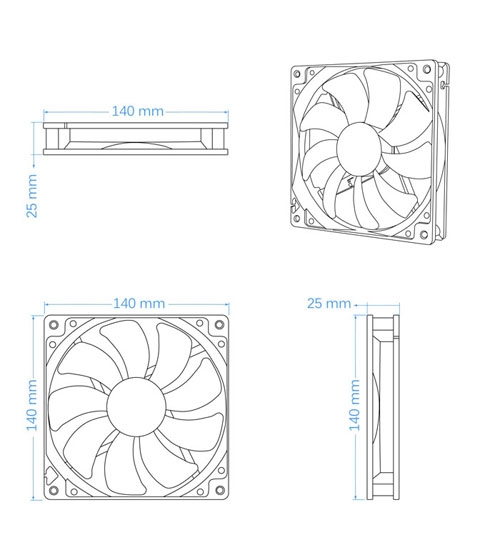

Dimension (L)140mm X (W)140mmX (H)25mm
Bearing Type Two Ball bearing
Rated Voltage 12 VDC
Operating Voltage Range 7~13.8 VDC
Rated Current 0.45A
Rated Input Power 5.4W
Rated Speed 1600RPM/1200RPM/900RPM
Airflow 127CFM/100CFM/65CFM0
Noise Level 28dBA/20dBA/15dBA
Net Weight 152g
LED Red
Accessories Fan Screw*4 3;4-Pin Adapter*1,
Low Rotation Adapter*2


No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base
