MCP35X2 Pump
Product Description
The MCP35X2 is the dualmotor version of Swiftech's flagship MCP35X pump.The product isdesignedto provideextreme flow rates in loops that includemultiple devices, for example multiple radiators and triple or quad SLI/Crossfire liquid cooled graphics cards;pump redundancy also providesmaximum safety in mission critical systems: if one pump fails,flow will continue to circulate thru the system thanks to the second pump.
The unit features:
Features & Benefits
-
Small Footprint: L4.9" x W2.8" x H1.6" (L126 x W72 x H41mm);
-
50,000 hours MTBF (Mean Time Between Failure) ;
-
12 Volts DC convenience: plugs into the computer power supply
-
Variable speed control via PWM thru the motherboard, from 1300 rpm for completely silent operation, to 4500 rpm for ultra high flow performance;
-
Simultaneous pump speed control using onePWM motherboard header is achieved usingthe included PWM splitter cable.
-
Superior head pressure and flow rate (in the useable range) to any pump in its footprint: the X2 features twice the head pressure as the MCP35X.
-
G1/4" ports standard for compatibility with a large assorment of fittings;
-
No maintenance when used with distilled water, and anti-fungal additives (our HydrX additive is recommended);
-
Quick installation with adhesive neoprene pad, or permanent installation with supplied hardware;
-
Optional "built-in" MCP35X-Res reservoir;
-
Ready for upcoming 5 1/4" bay reservoir solutions by Swiftech.
-
2 year warranty

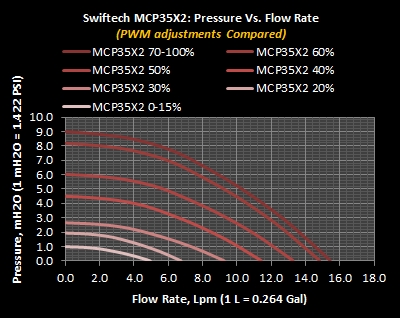

PQ Cuve at various speeds

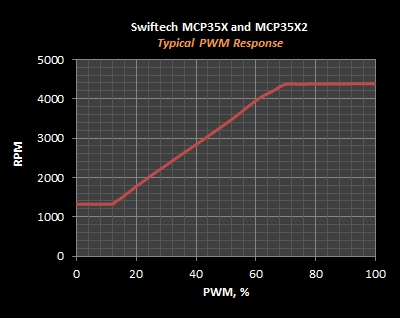

PWM response

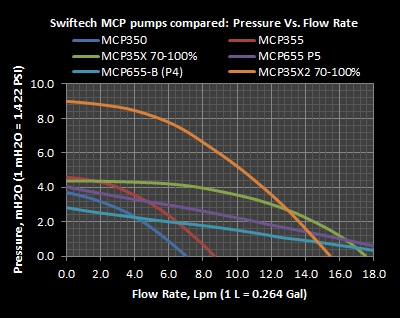

Comparative data against all Swiftech pumps

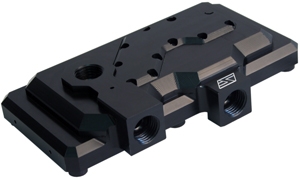

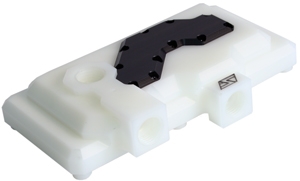

TheMCP35X2 housing is precision machined from either black or white POM, and is also available for sale separately. It is compatible with all previous MPC35 class pumps.
Technical Specifications
Motor type 2x Electronically commutated, brushless DC, spherical motors
Nominal voltage 12 V DC
Operating voltage range 9 to 13.4 VDC
Max. nominal power (@12 V) 18 W x 2
Max. nominal current (@12 V) 1.5 A x 2
Max. nominal head (@12 V) 27.9 ft (8.5m)
Max nominal discharge (@12 V) ~ 4.17 GPM (15.8 LPM)
Maximum pressure 22 PSI (1.5 BAR)
Temperature range Up to 140 °F (60 °C)
Electrical power connector 2x Molex 4 pin
PWM + RPM Signals 2x 4-pin connector
RoHS Compliant
Port thread standard G1/4
MTBF 50,000 Hours
Weight 15 oz

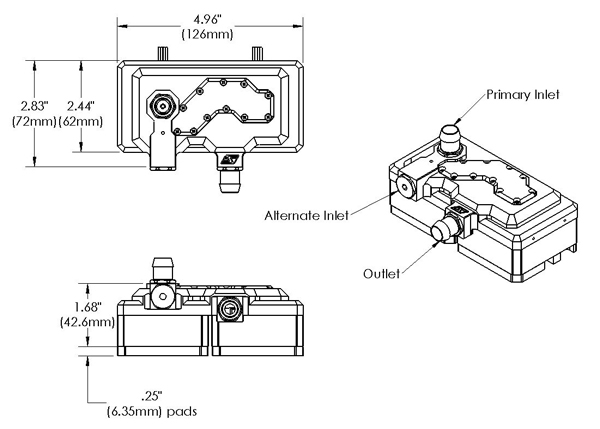

Dimensions (not including fittings) L4.9" x W2.8" x H1.6" (L126 x W72 x H42mm)
