VO200M6W2N
ARMOR REVO Snow Edition
VO200M6W2N
Features
- Wing Shape Aluminum Front Bezel
- Breath Lighting effect
- USB3.0 superspeed
- Top-mounted HDD hot swap Docking Station
- VGA TripleMax 33cm
- CableClear cable management
- Liquid cooling ready
- Innovative 5.25" & 3.5" tool-free design
- Combat Headset Holder
- Heightened footstand enhances intake airflow
Unique Design
Top HDD Docking Station
Wing Shape Aluminum Front Bezel

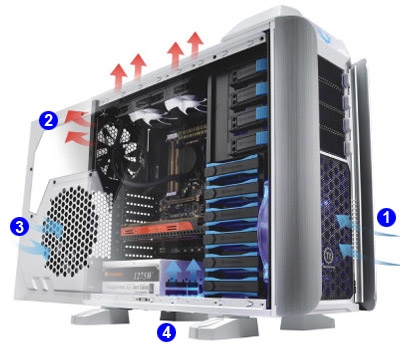

The Cooling System - Air Cooling
HDD Air Cooling System
1. Front (intake) : 200 x 200 x 30 mm Blue LED fan x 1 (600~800rpm, 13~15dBA)
CPU Air Cooling System
2. Top (exhaust) : 200 x 200 x 30 mm Blue LED fan x 1 (600~800rpm, 13~15dBA)
140 x 140 x 25 mm or 120 x 120 x 25 mm (Optional)
3. Rear (exhaust) : 140 x 140 x 25 mm Turbo Fan (1000rpm,16dBA)
VGA Air Cooling System
4. Side (intake) : Plug&Play 200 x 200 x 30 mm fan x 1 (600~800rpm, 13~15dBA)
5.Bottom (intake) : 120 x 120 x 25 mm fan (Optional)

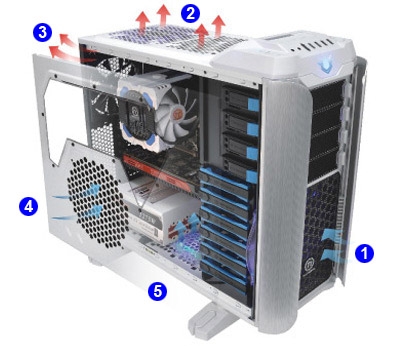

The Cooling System - Liquid Cooling (Optional)
HDD Air Cooling System
1. Front (intake) : 200 x 200 x 30 mm Blue LED fan x 1 (600~800rpm, 13~15dBA)
CPU Air Cooling System
2. Rear (exhaust) : 140 x 140 x 25 mm Turbo Fan (1000rpm,16dBA)
VGA Air Cooling System
3. Side (intake) : Plug&Play 200 x 200 x 30 mm fan x 1 (600~800rpm, 13~15dBA)
4.Bottom (intake) : 120 x 120 x 25 mm fan (Optional)
Specifications:
| P/N |
VO200M6W2N |
| Case Type |
Full Tower |
| Dimension (H x W x D) |
586 x 254 x 552 mm
(23.1 x 10 x 21.7 inch) |
| Net Weight |
11.5Kg / 25.35lb |
| Side Panel |
Transparent Window |
| Color |
Exterior & Interior : Black & White |
| Material |
SECC
|
| Cooling System |
Front (intake) :
200 x 200 x 30 mm Blue LED fan x 1 (600~800rpm, 13~15dBA)
Rear (exhaust) :
140 x 140 x 25 mm Turbo fan (1000rpm,16dBA)
Top (exhaust) :
200 x 200 x 30 mm Blue LED fan (600~800rpm, 13~15dBA)
140 x 140 x 25 mm or 120 x 120 x 25 mm (optional)
Side (intake) :
Plug&Play 200 x 200 x 30 mm fan (600~800rpm, 13~15dBA)
Bottom (Intake) : 120 x 120 x 25 mm (optional) |
| Drive Bays |
Accessible: 4 x 5.25, 1 x 3.5
(Converted from one 5.25 drive bay)
Hidden: 6 x 3.5 or 2.5
HDD Docking: 1 x 3.5 or 2.5 |
| Expansion Slots |
8 |
| Motherboards |
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX) |
| I/O Ports |
USB 3.0 x 2, USB 2.0 x 2, eSATA x 1, HD Audio x 1 |
| PSU |
Standard PS2 PSU |
| LCS Upgradable |
Supports 1/23/81/4 water tube |
| Other |
CPU cooler height limitation: 180mm
VGA length limitation: 330mm |
* Specifications are subject to change without notice.
* The product picture(s) is only for your reference, it may differ from the actual product.
