All stock codes associated to this product
RS812+, NASSYNU0812C, SY20080, RS812+
RS812+
High-performance & Scalable 4-bay Rackmounted NAS Server for SMB Users
Synology RackStation RS812+/RS812RP+ offers a high-performance, scalable, and full-featured rackmounted network attached storage solution that meets the needs of small and medium-sized businesses that require an efficient way to centralize data protection, simplify data management, and rapidly scale up storage capacity with minimal time spent on setup and management. The Synology RS812+/RS812RP+ is backed with Synologys 3-year limited warranty.
- Average 202.31 MB/sec Reading, 175.11 MB/sec Writing
- 2 LAN with Failover and Link Aggregation Support
- Fast Motherboard Swapping Design
- CPU Passive Cooling Technology & System Fan Redundancy
- Scale up to 8 Drives with Synology RX410
- Windows ADS and ACL Support
- VMware / Citrix / Hyper-V Compliance
- Running on Synology DiskStation Manager (DSM)
Overview
Experience High Performance Data Throughput
With the Link Aggregation enabled, Synology RS812+/RS812RP+ delivers an average 175.11 MB/sec writing speed under RAID 5 configuration in a Windows environment, and 202.31 MB/sec reading1. Synology RS812+/RS812RP+ bring you the high performance that your data-intensive applications demand for a storage system, and offer the ability to scale the storage capacity.
High Reliability for Critical Business Applications
Businesses need a strong foundation to face mission-critical tasks. Synology RS812+/RS812RP+ deliver high data availability to ensure access when its needed. The 2 LAN with failover support and hot-swappable drives will ensure continual service uptime should the drives need replacement or the unexpected LAN failure.
In the event of a hardware failure, the RS812+/RS812RP+ is made for easy maintenance without removing from the rack. The motherboard inside is made for easy access and replacement. No additional system re-configuring is needed, and RS812+/RS812RP+ can be brought back on the line with your existing data.
CPU is the heart of any system, and RS812+/RS812RP+ incorporates a passive cooling structure to avoid the dependency of a dedicated processor cooling fan, and mitigate any critical point of failure. When system detects fan fails, the built-in redundancy mechanism will spin up the functional fan(s) to properly ventilate the system, and support continuous operations until the replacement fan arrives. Therefore, potential system damages are minimized and system availability is maximized.
Fit to Business Environment
Windows ADS integration allows the Synology RS812+/RS812RP+ to quickly and easily fit in an existing business network environment with no need to recreate users accounts on the Synology RS812+/RS812RP+. The User Home feature minimizes the administrators effort in creating a private shared folder for a large amount of users.
Windows ACL support on RS812+/RS812RP+ provides much finer-grained access control and efficient privilege settings, allowing IT staffs to set up privileges to files and folders on RS812+/RS812RP+ through their familiar Windows user interface. The privileges set on Windows ACL will be applied to all access entries, including AFP, FTP, File Station, NFS and WebDAV. The secure privilege offers IT staff peace of mind, no worries about any loopholes.

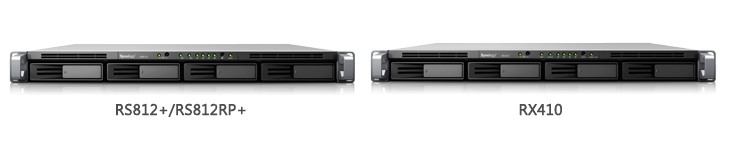

Robust & Affordable Scalability Up to 32 TB
When the storage capacity of the Synology RS812+/RS812RP+ is nearing its capacity limit, it can easily be expanded with the Synology RX410 expansion enclosure. The Synology RX410 securely connects to the Synology RS812+/RS812RP+ via an eSATA cable with specially-designed locking connectors. The Synology RX410 expands the existing storage on the Synology RS812+/RS812RP+ up to a maximum 32 TB capacity.
Rich Business Applications
Synology RS812+/RS812RP+ runs on the award-winning operating system, Synology DiskStation Manager (DSM), which offers comprehensive applications and features designed specifically for office and business workgroups.
Web Station with PHP/MySQL support allows a single Synology RS812+/RS812RP+ to host up to 30 websites and numerous 3rd party web applications, such as Content Management, Customer Relationship Management & e-Commerce system. The built-in mail server turns Synology RS812+/RS812RP+ into a dedicated mail service provider, while the add-on package, Mail Station 2, provides a webmail interface for users to access emails stored on Synology RS812+/RS812RP+.
Synology Surveillance Station offers a centralized interface to manage IP cameras deployed in your office or home, allowing users traveling miles away to safeguard the environment by watching live views, recording events, and taking snapshots with a computer or mobile device.
A wealth of add-on packages allows the Synology RS812+/RS812RP+ to replace several pieces of network hardware. VPN Server offers an easy VPN solution that turns your Synology RS812+/RS812RP+ into a VPN server, providing a secure way of connecting to a private LAN at a remote location. Directory Server allows Synology RS812+/RS812RP+ to host LDAP service with centralized access control, authentication, and account management, further enhancing your office management efficiency.
iSCSI and Virtualization Ready
With the iSCSI support in DiskStation Manager (DSM), the Synology RS812+/RS812RP+ provides a seamless storage solution for virtualization servers, such as VMware, Hyper-V, and Citrix. It is the ideal alternative to SAN solution for businesses. Affordable and cost-effective, iSCSI allows SMB users to consolidate storage into data center storage arrays while providing hosts with the illusion of locally-attached disks.
Energy Efficient Design
Synology DiskStations are designed and developed with energy efficiency in mind. Compared with the average PC counterparts, the Synology RS812+/RS812RP+ consume relatively low amount of power at 46.2 watts only in operation. The support of Wake on LAN/WAN and scheduled power on and off can further reduce power consumption and operation cost. HDD hibernation can be configured to take effect automatically when the system has been inactive for a specified period of time. This not only saves energy but also extends the lifespan of the hard disks.
All Synology products are produced with RoHS compliant parts and packed with recyclable packing materials. Synology acknowledges the responsibility as a global citizen to continually work to reduce the environmental impact of every product produced.
Features:
DSM Highlight
Synology continues to seek solutions to smooth out the challenges users are confronted with. As a result, DSM is continually evolving to fulfill user expectation. The following topics are our commitment to quick remote connection, easy storage configuration, support in virtualization, and multi-function NAS application.

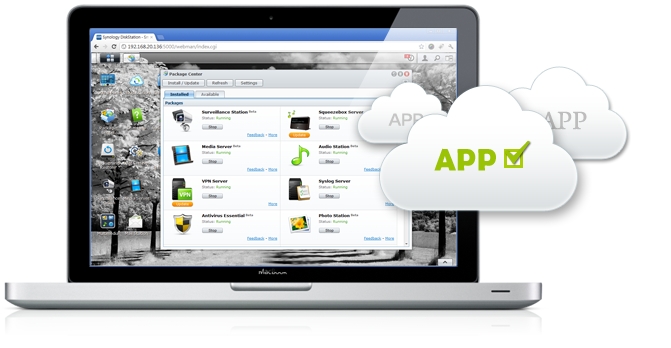

Apps On-Demand
In Synology, we believe in the potential of NAS servers, that it should be flexible and multi-functional. Therefore we have developed a suite of apps for users to install them freely and instantly. A simple click and you are done.
Cloud Station
Each one of us may regularly work with more than one PCs. Use Cloud Station to ensure that a copy of the latest file is always available, no matter which PC you are using. Even when theres no internet connection, your access will not be down.
Synology ezCloud
Synology ezCloud helps first-time users to open up smooth remote connection service. With QuickConnect Service, you can get files anywhere and no router set up is required. You can also register a free domain name with Synology DDNS Service.

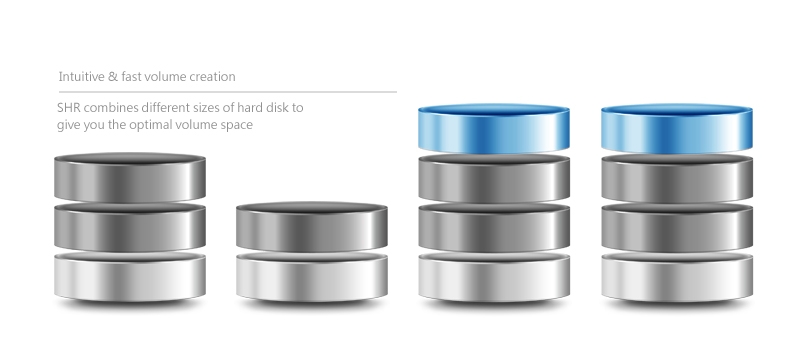

Synology Hybrid RAID
Synology Hybrid RAID (SHR) is an optimized volume type. No need to study the difference between RAID types and requirements, SHR helps you keep everything simple and instant.
Virtualization Support
DSM supports all major virtualization solutions. We strive to provide the most up to date support, including VMware vSphere 5. Such commitment allows businesses to be more flexible with their IT infrastructure deployment.
DSM for Home
TV, DLNA devices, computers, and stereos, what do these have in common with you and your family? Connection. DSM makes sharing files between family members a breeze and allows living room TV to play out the same file that your bro is watching on his laptop. In short, its all about connection.
Home Applications
Install applications via Package Center to enrich your digital life. Make all multimedia contents connected with Audio Station, Media Server, iTunes, Photo Station, and Download Station. Print out hard copies wirelessly since DiskStation connects the printer for you.
Easy Setup
DSM simplifies every step for you to construct a DiskStation ready to use. Just follow the step-by-step guidelines to intuitively set up the network, apply account & privileges, and establish accessible storage. Synology makes considerate DiskStations for you.
File Sharing
Share files across Windows, Mac & Linux platforms and navigate seamlessly. Use File Station and FTP to share resources across the network. For files stored on Cloud Station, all changes made can be automatically synced and pushed to any PC computer at hand.
Backup
Back up important files or the system image directly using Windows and Mac computers. You can easily backup data from external storage devices and vice versa with a few clicks. Time Backup snapshots particular points of time to keep multiple versions. Its that easy.
Mobile Support
Carry terabytes of music, videos, photos, and documents with you all the time. With DS audio, DS photo+, and DS file, you can always access files stored on DiskStation on-the-go. And, print off a photo or a document is just a tap on your mobile device.
DSM for Business
Business's requirement for efficiency and productivity is at an all-time high. This means seamlessly integration with existing infrastructure, different ways to access data, and comprehensive data protection scheme. DSM offers complete support for Windows ADS and LDAP, a suite of value add applications to facilitate business need, as well as tools to secure the system's health.
Storage & iSCSI
Use Storage Manager to create multiple volumes on a RAID and iSCSI LUN, expand storage space, setup RAID redundancy. Raise storage utilization and deploy effectively - make every inch of your storage space count.
File Sharing
Synologys file sharing solution works on Windows, Mac & Linux platform, so your business will have a seamless sharing environment. Use File Station, remote folder, virtual drive and FTP to share resources across network and the Internet.
Data Backup
Back up important data in different ways with server backup. Keep configuration settings intact and restore them for migration or upgrade. Time Backup offers snapshot, version control and an intuitive interface that makes backup easy.
Business Applications
Install applications via Package Center to enhance your business operations. Whether its building a VPN environment, setting up a mail service, hosting printer server or managing server logs. Antivirus Essential is a full-fledged shield to protect your system without any cost.
Advanced Account & Privileges
Synologys Windows ADS and LDAP support allows DiskStation to join your directory service, so IT administrator can manage user accounts, groups and network resources effortlessly. With Windows ACL, businesses can have advanced access control to maintain integrity.
Network Configuration
DiskStation supports all network connection modes depending on your business IT structure by PPPoE, router or wireless dongle. Register a Synology domain name with ezCloud. IPv6 support makes you compatible with the shift in Internet-wide infrastructure.
Server Management
DiskStation is equipped with a variety of management tools for your IT administrator. Monitor and manage connections with Connection Manager. Setup notifications so you always know whats up and down. Examine system status with built-in S.M.A.R.T, resource monitor, DSM auto update, logs and much more. Secure your DiskStation with Antivirus Essential, firewall, HTTPS and IP auto block.

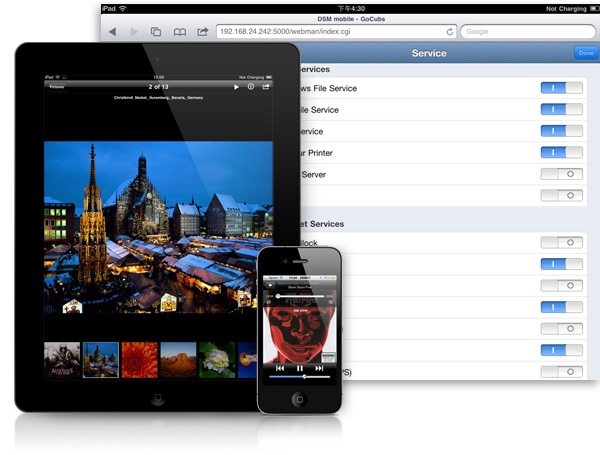

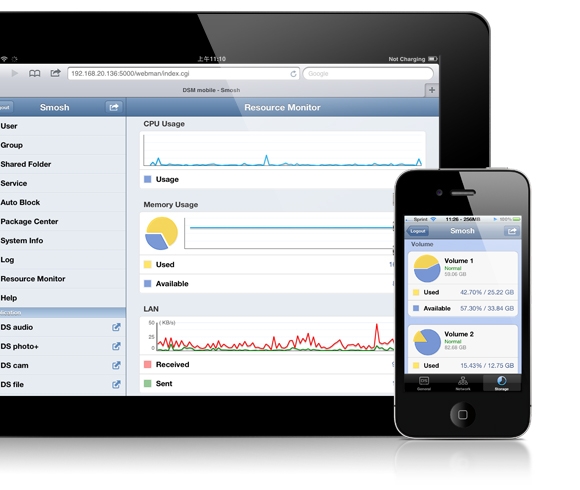

Mobile Support
Increase work mobility with Synology mobile support. Use DSM mobile to manage your DiskStation, including accounts, shared folder privilege, services & applications, security settings and many more. Use DS finder to monitor system status and find a problematic server among hundreds.

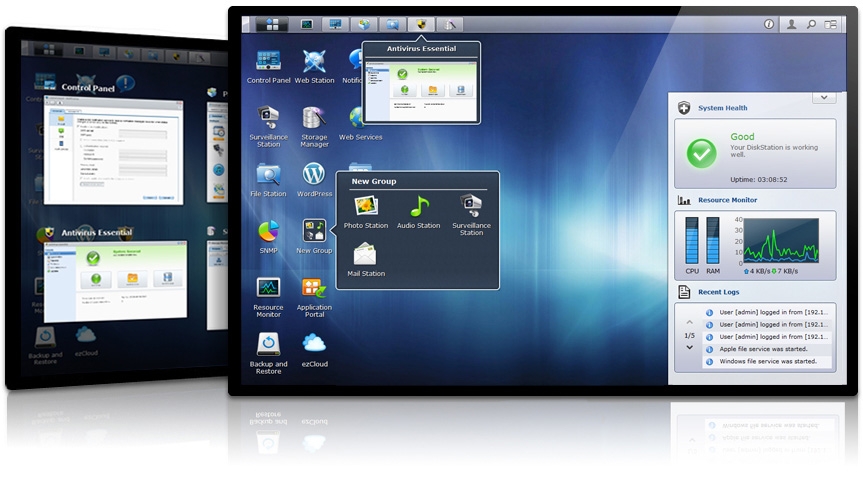

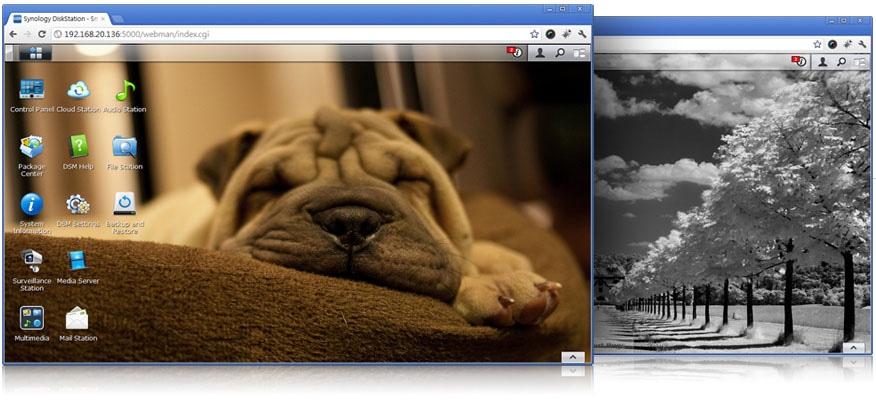

User Interface
See how the next generation NAS operating system looks. Learn how to multitask and how desktop tools can help you gain productivity.
Full Customization
From creating a new look for login page to deciding the application services within DiskStation, administrators are granted with every bit of customization option for top-class user experience.
Multitasking
DiskStation Manager is long-proven to be good at multitasking. See how exactly you can apply this great multitasker to facilitate administration work more effectively. Advantages like uploading files in the background grants you smooth using experience.
Desktop Management Tools
Discover Grouping, Instant View, Pilot View, Widget, and others. The web-desktop is full of tools to help you increase productivity and efficiency.
Specifications:
Hardware
- CPU Frequency : Dual Core 2.13GHz
- Floating Point
- Memory : DDR3 1GB (Expandable, up to 3GB)
- Internal HDD/SSD : 3.5" or 2.5" SATA(II) X4(Hard drive not included)
- Max Internal Capacity : 16TB (4X 4TB HDD)(Capacity may vary by RAID types) (See All Supported HDD)
- Hot Swappable HDD
- External HDD Interface : USB 2.0 Port X 2, eSATA Port X 1
- Rail Kit: Synology 1U Rail Kit Sliding / Synology 1U Rail Kit Fixed (optional)
- Size (HxWxD) : (RS812+) 44 X 430.5 X 457.5, (RS812RP+) 44 X 430.5 X 570.5mm
- Weight : 7.1kg (RS812+), 9.42kg (RS812RP+)
- LAN : Gigabit X2
- Link Aggregation
- Wake on LAN/WAN
- System Fan : 40x40mm x3
- Wireless Support
- Noise Level : 25.1 dB(A) (RS812+), 52.6 dB(A) (RS812RP+)
- Power Recovery
- AC Input Power Voltage : 100V to 240V AC
- Power Frequency : 50 / 60Hz, Single Phase
- Power Consumption : 46.2W (Access) ; 25.3W (HDD Hibernation)
- Redundant Power Supply : RS812RP+ only
- Operating Temperature : 5C ~ 35C (40F ~ 95F)
- Storage Temperature : 15 to 155F (-10 to 70C)
- Relative Humidity : 5% to 95% RH
- Maximum Operating Altitude : 10,000 feet
- Certification : FCC Class A, CE Class A, BSMI Class A
- Warranty : 3 Years
Notes :
- Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the DiskStation front and rear; Background noise: 17.2 dB(A); Temperature: 23.6C; Humidity: 58.2%; More details about dB(A) value, check https://www.memtechacoustical.com/facts.asp
- Power consumption is measured when fully loaded with Western Digital 3TB WD30EZRS hard drive(s).
- Support for Wake on WAN needs switch and routers which recognize Magic Packet.
Applications
- File Station
- Virtual Drive
- Remote Folder
- Mail Server
- Supported Protocols : POP3, SMTP, IMAP
- FTP Server
- Bandwidth Control, Custom FTP Passive Port Range, Anonymous FTP, Transfer Log
- Web Station
- Virtual Host (up to 30 websites)
- PHP/MySQL
- 3rd-Party Applications Support
- Print Server
- Max Printer # : 2
- Printing Protocols : LPR, CIFS, Appel AirPrint, Google Cloud Print, Multi Functional Print Server(Only PostScript USB printers are supported in MAC environment)
- iOS/Android Applications
- DS photo+
- DS audio
- DS cam
- DS file
- DS finder
- Windows Phone Applications
- DS finder
Add-on Packges
- Surveillance Station
- MAX IP cam # (Licenses required) : 20(1 Free License) (See All Supported IP Cameras)
- Total frame rate (FPS) : 200 FPS @ WXGA (1280x800).
- Directory Server
- LDAP Directory Server
- Backup and Restore LDAP Database
- VPN Server
- Maximum Connections : 20
- VPN Method: PPTP, OpenVPN
- DHCP Server
- Independent DHCP Server on Different Network Interfaces
- Multiple Subnets Support
- Address Reservation
- Syslog Server
- SSL Connection
- Log Rotation: 6 months, 1 year, 2 years, 3 years
- Email Notificaiton
- Mail Station
- Webmail Interface for Mail Server
- Receiving Mails from Multiple POP3 Mailboxes
- Customizable SMTP Server
- Antivirus Essential
- Full System Scan
- Scheduled Scan
- White List Customization
- Virus Definition Auto Update
- Time Backup
- Maximum Task Number : 8
- Multiple File Versions Retained
- Instant File Restoration
- Cloud Station
- Maximum User Accounts : 8
- Retain Historical and Deleted File Versions
- HiDrive Backup
- Backup DiskStation data to STRATO HiDrive online storage
- Photo Station
- Supported Image Format : BMP, JPG (jpe, jpeg), GIF, RAW (arw, srf, sr2, dcr, k25, kdc, cr2, crw, nef, mrw, ptx, pef, raf, 3fr, erf, mef, mos, orf, rw2, dng, x3f)
- Supported Video Format : 3G2, 3GP, ASF, AVI, DAT, DivX, FLV, M4V, MOV, MP4, MPEG, MPG, QT, WMV, XviD, RM, RMVB, VOB, RV30, RV40, AC3, AMR, WMA3
User can click and download the following video formats: RM, RMVB, VOB, RV30, RV40, AC3, AMR, WMA3, but not able to play it in Photo Station as compressed Flash video.
- Audio Station
- Supported Audio Format (USB Mode) : AAC, FLAC, M4A, MP3, Ogg Vorbis, WMA, WMA VBR
- Supported Audio Format (Streaming Mode) : MP3, M4A, M4B
- Supported Playlist Format : M3U, WPL
- Internet Radio : SHOUTcast, Radioio
- iTunes Server
- Supported Audio Format : MP3, M4A, M4P, WAV, AIF, The music in WAV and AIF format can be streamed, but the metadata (ex: title, album) may not be indexed on the iTunes
- Supported Video Format : M4V, MOV, MP4
- Supported Playlist Format : M3U, WPL
- DLNA/UPnP Media Server
- PS3/Xbox 360 Support
- Supported Audio Format : AAC, FLAC, M4A, MP3, Ogg Vorbis, PCM, WAV, WMA, WMA VBR, WMA PRO, WMA Lossless
- Supported Video Format : 3GP, 3G2, ASF, AVI, DAT, DivX, DVR-MS, ISO, M2T, M2TS, M4V, MKV, MP4, MPEG1, MPEG2, MPEG4, MTS, MOV, QT, SWF, TP, TRP, TS, VOB, WMV, XviD, RMVB (The actual playback capabilities may vary depending on the DLNA/UPnP client)
- Supported Image Format : BMP, JPG (jpe, jpeg), GIF, ICO, PNG, PSD, TIF (tiff), UFO
- Download Station
- Supported Download Protocols : BT/HTTP/FTP/NZB/eMule
- Maximum Concurrent Download Tasks : 80
- Packages by 3rd Party
- HASP
- phpMyAdmin
- Webalizer
- Logitech Media Server
- WordPress
- OpenERP
Notes :
- Surveillance Station throughput is tested with Axis M1011 (640X480) and Axis M1054 (1280X800); FPS set to 10 at every channel; Compression rate: 30%; Video Codec: MJPEG, MPEG4 (640X480 only), H.264; Recording Type is conducted with Motion Detection Recording and Continuous Recording; Actual performance may vary depending on camera settings and DiskStation loading.
General
- Networking Protocols
- CIFS
- AFP
- NFS
- FTP
- WebDAV
- iSCSI
- Telnet
- SSH
- SNMP
- VPN (PPTP, OpenVPN)
- File System
- EXT4
- EXT3(External Disk Only)
- FAT (External Disk Only)
- NTFS (External Disk Only)
- Storage Management
- Max File System Size : 108TB
- Max Internal Volume # : 512
- Max iSCSI Target # : 32
- Max iSCSI LUN # : 256
- Supported RAID Type : Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 5+Spare, RAID 6, RAID 10
- RAID Migration : Basic to RAID 1, Basic to RAID 5, Basic to RAID 5+Spare, RAID 1 to RAID 5, RAID 1 to RAID 5+Spare, RAID 5 to RAID 5+Spare, RAID 5 to RAID 6
- Volume Expansion with Larger HDDs : RAID 1, RAID 5, RAID 5+Spare, RAID 6
- Volume Expansion by Adding a HDD : RAID 5, RAID 5+Spare, RAID 6
- Synology Expansion Unit Support : RX410
- File Sharing Capability
- Max User Accounts : 2048
- Max Groups : 256
- Max Shared Folder : 256
- Max Concurrent CIFS/AFP/FTP Connections : 512
- Windows Access Control List (ACL)
- Windows ADS Domain Integration
- Domain Users login via Samba/AFP/FTP/File Station
- Backup Solutions
- Network Backup
- Local Backup
- Desktop Backup (Window: Synology Data Replicator 3, Mac: Apple Time Machine backup application)
- Shared Folder Sync - Max task number : 8
- Configuraiton Backup
- Security
- FTP over SSL/TLS
- IP Auto-Block
- Firewall
- Encrypted Network Backup over Rsync
- HTTPS Connection
- Management
- Auto DSM Upgrade
- Administrator Group
- Push Notification MSN/Skype/Mobile Devices
- Email/SMS Notification
- Customized User Quota
- Syslog Support
- DDNS Support
- IPv6 Support
- VLAN support
- PPPoE
- Hotspot
- Resource Monitor
- Connection Manager
- UPS Management
- Scheduled Power On/Off
- Custom Management UI HTTP/HTTPS Ports
- HDD Management
- HDD Hibernation
- S.M.A.R.T.
- Dynamic Bad Sector Mapping
- Utilities
- Synology Assistant
- Synology Data Replicator
- Supported Clients
- Windows XP onward
- Mac OS X 10.5 onward
- Ubuntu 9.04 onward
- Supported Browsers
- Chrome
- Firefox
- Internet Explorer : 7, 8, 9
- Safari (MAC) : 4, 5
- Language
- English, Deutsch, Franais, Italiano, Espaol, Dansk, Norsk, Svensk, Nederlands, , Polski, Magyar, Portugus do Brasil, Portugus Europeu, Trke, esk, , , ,
Environment and Packaging
- Environment
- RoHS Compliant
- Package Content
- Main Unit X 1
- Installation Disc X 1
- Welcome Note X 1
- Assembling Kit X 1
- AC Power Cord X 1 (RS812RP+: X 2)
- Optional Accessories
- Remote
- Camera License Pack
- Rail Kit
- RAM Module : 2GB DDR3 RAM Module
- Expansion Unit : RX410 x 1
- VS80
(Updated : 2012/03/28)
