Introduction

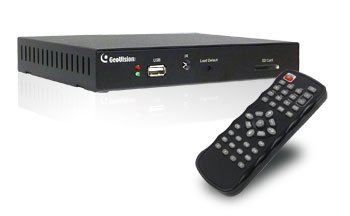

The GV-IP Decoder Box is designed to decode incoming IP streams from GeoVision and third-party IP devices, and displaying them on a digital or an analog monitor. To be used with only a monitor, the GV-IP Decoder Box provides a cost-effective solution for video surveillance as opposed to the traditional DVR and PC setup. The security administrator can monitor channels, take snapshots of critical moments, and pause at a channel when events occur, all through the supplied remote control. Connected GeoVision PTZ cameras such as GV-PTZ010D, GV-PT110D and GV-IP Speed Dome can also be controlled through GV-Joystick.
Features
- Decode video streams in H.264 codec at a maximum frame rate of the IP device
- Decode up to 5 megapixel IP cameras
- Decode up to 64 IP streams
- Support for 3rd party IP cameras that adhere to RTSP, ONVIF or PSIA
- Support for 10/100 Ethernet over LAN
- Support for single and sequential display
- VGA and High Definition Video outputs
- Video output resolution up to 1080p
- Support for GV-Joystick control of GV PTZ cameras (GV-PTZ010D and GV-PT110D) and GV-IP Speed Dome
- Support for remote firmware upgrade, IP address configuration and addition of new channel
- Display of Matrix view through GV-Mobile Server
- IR remote control
- SD card and USB drive for snapshot storage and firmware upgrade
- No SD/SDHC card slot & local storage function for Argentina

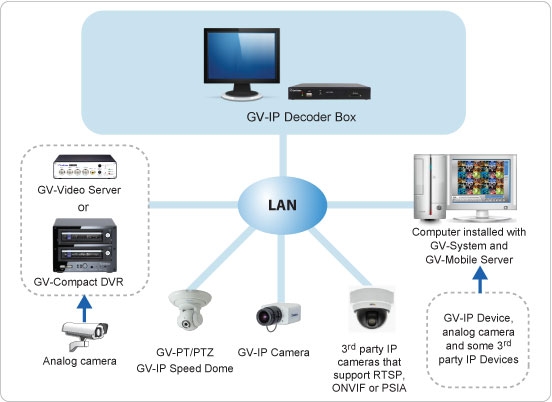

The GV-IP Decoder Box is compatible with:
1. Most GeoVision IP devices (of the indicated firmware versions) using H.264 codec, and
2. Third-party IP devices that support H.264 and adhere to RTSP, ONVIF or PSIA.
| Supported GeoVision IP Devices |
| Device Type |
Models |
Firmware Versions |
| Box Camera |
GV-BX110D |
V1.08 or later |
All models
(except GV-BX110D) |
V1.06 or later |
| Bullet Camera |
GV-BL110D |
V1.08 or later |
All models
(except GV-BL110D) |
V1.06 or later |
Cube Camera
Fixed Dome
Vandal Proof IP Dome |
All models |
V1.06 or later |
| Mini Fixed Dome |
GV-MFD110 |
V1.08 or later |
All models
(except GV-MFD110) |
V1.06 or later |
PT Camera
PTZ Camera |
GV-PT110D
GV-PTZ010D |
V1.08 or later |
| Speed Dome |
All models |
V1.02 or later |
| Video Server |
GV-VS04H |
V1.04 or later |
| Video Server |
GV-VS11 |
V1.0 or later |
| Video Server |
GV-VS12 |
V1.05 or later |
| Compact DVR |
GV-Compact DVR V3 series only |
V1.0 or later |
| IMPORTANT: The connected GeoVision and third-party channels must be set with H.264 codec to be compatible. |
To decode and display non-H.264 IP channels or analog channels, connect the devices to GV-System and access them through GV-Mobile Server. The supported devices are listed below.
| Supported Devices Connected to GV-System |
| Analog cameras |
| All models of GeoVision IP cameras, GV-Video Server, GV-Compact DVR, GV-IP Speed Dome, GV-Smart Box and GV-DSP LPR |
| 11 brands of third-party IP cameras. For detail, see https://www.geovision.com.tw/english/4_21.asp |
Specifications:
| Video |
| Video Codec |
H.264 |
| Video Output at 60 Hz |
High Definition |
VGA |
| 480p |
640 x 480 |
| 720p |
1024 x 768 |
| 1080i |
1280 x 768 |
| 1080p |
1366 x 768 |
| Network |
| Interface |
10/100 Ethernet |
| Protocol |
TCP, RTSP, ONVIF, PSIA |
| Mechanical |
| IR Remote Control |
Yes |
| Connectors |
Power |
12V DC Jack |
| Ethernet |
RJ-45 |
| Monitor Output |
High Definition, VGA |
| Local Storage & Firmware |
USB slot (2.0 backward compatible, FAT32 format) |
| Upgrade |
SD card slot (for Class 6 or above, FAT32 format) |
| General |
| Operating Temperature |
0 C ~ 40 C / 32 F ~ 104 F |
| Operating Humidity |
20 % ~ 80 % |
| Dimensions (W x H x D) |
182.5 29 141.5 mm / 7.19 1.14 5.58 in |
| Net Weight |
615 g / 1.36 lb |
| Power |
DC 12 V |
| Power Consumption |
36 W (max. 3 A at 12V DC) |
| Regulatory |
CE, FCC compliant |
