MSI mainboards maintains the commitment to product stability and reliability by introducing Military Class III components! In addition to the use of Hi-c CAP, SFC, and Solid CAP, MSI now incorporates DrMOS II, the next-generation DrMOS that provides an integrated Double Thermal Protection to maximize the lifespan of components. All Military Class III components have passed MIL-STD-810G certification, making MSI's Military Class III components synonymous with premium quality and ultimate stability.

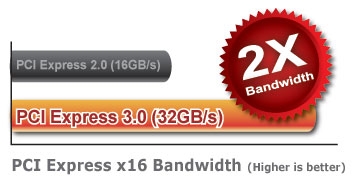

With ultra-high 32GB/s transfer bandwidth, PCI Express Gen 3 provides a 2X faster transfer rate than the previous generation, this delivers amazing capabilities for true next generation extreme gaming.



2X bandwidth
Increased efficiency and compatibility
Extreme performance for current and next gen PCI Express cards

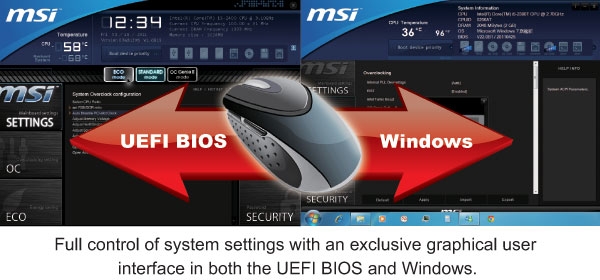

MSI ClickBIOS II provides a consistent user interface both in the UEFI BIOS and in Windows, it provides the most convenient way for users to control system settings and supports touchscreen control.


Graphical User Interface, with touchscreen support
Simply click or touch and move to change settings
Full system control, including overclocking, security and information

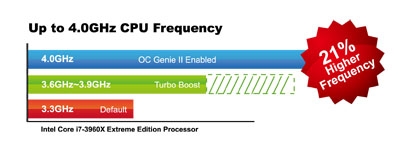

OC Genie II can achieve amazing performance increases in just one second! CPU and memory performance are optimized without compromising system stability, significantly saving the time required by overclockers for fine-tuning. Once the user enables OC Genie on MSI's X79 mainboards, the clock rate on a 2^nd generation unlocked Intel Core i7 processors pumped from the default frequency to 4.0GHz. The highly increase enables users to enjoy the performance boost from overclocking with ease.







SLI technology allows using multiple Nvidia graphics cards in a single computer system with a mainboard equipped with an nForce SLI MCP. Users need an a mainboard with two PCI-Express 16x graphics slots and two matching GeForce graphics cards which are "SLI Ready". Most NVIDIA's PCI-Express graphics cards starting from the 6600 GPU can enjoy the benefits of SLI.







Increasing the thickness of the gold-plated layer in the 2-in-1 PS/2 and optimized USB ports to 30um to meet the demand of professional gamers. Besides enhancing mouse sensitivity in games, these improved interfaces deliver a longer lifespan and better stability of connectors and total solution for e-sports mouse control in UEFI BIOS.







AMD CrossFire™ is the ultimate multi-GPU performance gaming platform. Enabling game-dominatig power, AMD CrossFire technology enables two or more discrete graphics processors to work together to improve graphics performance. AMD CrossFire technology allows you to expand your system's graphics capabilities. It allows you the ability to scale your system's graphics horsepower as you need it, supporting up to four AMD Radeon™ HD graphics cards, making it the most scalable gaming platform ever. With an AMD CrossFire gaming technology, the traditional graphics limitation exists no more, allowing you to enjoy higher performance as well as visual experience.







The Sound Blaster X-Fi MB2 is an audio total solution equipped with many outstanding audio technologies. Sound Blaster X-Fi MB2 offers premium audio quality, effects and features for gamers and PC entertainment enthusiasts.


EAX stands for environmental audio extensions. The aim of EAX is to create more vivid ambience with 3D sound in games.


THX TruStudio PRO stereo standard is most commonly used in Hollywood movies. Whether its for games or video playback, it can achieve the best sound performance and clarity.







Mobile consumer appliances are getting more and more attention in current day fast moving life style, with smart phones and tablets almost becoming a fashion accessory. However, many ordinary personal computers cannot charge some of these devices, making it difficult to stay connected. The MSI Super Charger is a Windows resident program capable of revising the power supply mode of your USB port to become more powerful. Once your phone or tablet is connected to your USB port, theSuper Charger sends a signal to initiate its charging circuit, making it a really smart and convenient charging solution for mobile computing needs.





SATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your mainboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. Its also the current trend for upcoming high-speed internal storage devices to to break the existing bottleneck of a PCs performance.



2X Faster Than SATA 3Gb/s
Up to 6Gb/s Data Transfer Bandwidth
Unleash True Performance of New HDDs/SSDs





M-Flash



Compared to common mainboard which need extra BIOS chips, MSIs M-Flash has a double advantage which doesnt need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover it can also be seen as a portable BIOS chip which is actually able to boot up your PC.



Backup/Restore Your BIOS to/from Any USB Flash Disk
Avoid Unnecessary Repair Due to Accident Failures During The Upgrading Process
Earn more BIOS Lifespan by Reducing Unnecessary Rewriting Process





Compared to the 480Mbps provided by traditional USB 2.0, the all-new USB 3.0's 5Gb/s offers 10 times the transfer bandwidth, so transferring a Blu-ray movie takes less than one minute.


10X Faster Than USB 2.0
Up to 5Gb/s Data Transfer Bandwidth
Boost Transfer Rate Between Your PC and External Storage Devices







Active Phase Switching, APS, technology is an intelligent design that helps to save energy on MSIs mainboards. The underlying idea is to switch off the power supply as soon as no electricity is needed, and when the system needs more resources again, APS will automatically adjust electricity supply accordingly. APS will automatically detect your processors loading at any given time and save energy accordingly. This is only possible by means of a very advanced power controlling technology. Other than software-based solutions, APS technology stands out from MSI's own research. The specially developed IC chip can operate automatically depending on the demands of the power supply, which is to reduce the total power usage.







Onboard PC audio gets better! MSI is the first to implement the most high-end HD Audio codecs available. Dont be fooled by other inferior audio solutions onboard (sometimes you cant even find the driver!) Only MSI offers the Loss-less 24-bit/192KHz HD Audio function with an incredible 109 SNR dB value to provide the most clear & vivid HD audio quality and support 7.1 channels surround sound playback with a 2-channel independent stereo output (multiple streaming) through the front panel 3.5 inch phone jack.





Winki3 is a free Linux-based O/S which is based on the Linux core. With an ultra-fast booting speed and a multi-language interface, the built-in Winki3 provides an easy-to-use internet environment that includes the most popular functions such as internet surfing, web mail, instant messaging, picture browsing, and more. It's the most practical way to be online in the shortest time.



User friendly & totally free applications
Power on to run applications in 25 seconds
Multi-language interface support







USB Safeguard can prevent mainboards and USB devices from being damaged by short-circuit and ESD (Electro-Static Discharge) with Anti-ESD chips built-into the mainboards. Additionally, the safeguard can protect against such dangers multiple times, and greatly improves product lifespan.



All MSI mainboards use USB Safeguards anti-ESD chip for thorough protection against ESD damage
USB Safeguard is protected against a short circuit and/or ESD without the need for a fuse. It also supports stand-by power supply





Live Update 5



MSI Live Update5 is a powerful and useful application for updating the latest BIOS and Drivers, saving you time and lowers the risk of updating. End-users can install and run the Live Update5 software on their computers with the companion CD or downloading the app from the MSI website.



Automatically Detect the BIOS/Driver/VGA/Utility Update
Support Microsoft Windows XP/Vista/7 32/64bit







Instant MB info monitor
Intelligently auto set clock/voltage of CPU and memory
Smart Mode: 4 instant OC modes





The V-Check Points function provide power measurement pins for users to measure the CPU and RAM voltages with a multimeter. The feature can help save advanced overclockers valuable time by eliminating the need for manual circuit modification. The feature can be indispensable during overclocking competitions.







3TB+ Infinity is not only breaking through the limit of traditional BIOS, but also enhancing the utilization of hard drives efficiently. In addition to supporting the latest 3TB hard drives, MSI 3TB+ Infinity technology can use the 3TB hard drive as boot disk when installing a 64-bit operating system. Compared to competitors, MSI 3TB+ Infinity is an industry-leading technology which substantially presents an advantage of development and application in the future.


All the latest 3TB hard drivers on the market can be supported
Make the 3TB hard drive as boot disk when installing a 64-bit operating system







MSI Exclusive Direct OC push button, designed for the ultimate overclocker , provides low latency hardware frequency for your processor's base clock to attain the best performance. Direct OC is an attractive function for ultimate overclockers - by pressing the +/- buttons, users can instantly adjust the CPU frequency on-the-fly. Its pure hardware design allows Direct OC to work in any situation without restriction, and, when coupled with OC Genie technology, offers a noticeable performance increase.





Superpipe



MSI introduces the SuperPipe cooling design that utilizes 8mm full copper heat-pipe, 60% thicker than traditional pipes, and is also the thickest heat-pipe in the market. According to tests, the MSI mainboards with SuperPipe run 50 cooler than those without, proving that MSIs SuperPipe offers the most effective chipset cooling in the market.




8mm Extra Thick HeatPipe
60% Thicker Than Traditional HeatPipe
Thickest HeatPipe Used on Motherboard
