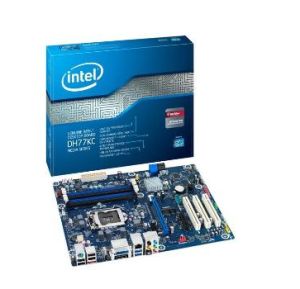

Intel DH77KC Motherboard - Retail
  • LGA1155, H77, 4xDDR3-1333, 1xPCI-Ex16 v3.0, 2xSATA-III, 3xSATA-II, 1xeSATA-II, GigLAN, 10Chl-HD, USB3.0, DVI, HDMI, DisplayPort, ATX

IMG 1 of 1
No Longer Available
Part Number:
190073
(?) Brand:
Intel Web Site
Manuf No:
BOXDH77KC
Shipping Weight:
2.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
11/4/2012
Details Files Images & Video
All stock codes associated to this product
BOXDH77KC, 735858241830

Intel Desktop Board DH77KC


The Intel  Desktop Board DH77KC supports the 2nd generation and 3rd generation Intel Core i7, Intel  Core i5 processors, and other Intel processors in the LGA1155 package. The board is featured with DVI-I, HDMI*, and DisplayPort* connectors and supports dual independent display for processors with Intel  HD Graphics. The Intel  Desktop Board DH77KC supports Intel  HD Graphics with the LucidLogix Virtu* Universal software, which combines best-in-class media processing features of the Intel  Core processors with the 3D gaming performance of graphics add-incards.

Intel  Desktop Board DH77KC also offers a PCI Express* Mini Card connector with support for mSATA Solid-State Drive for Intel  Smart Response Technology.

Specifications:

Features and Configurations

Form factor

ATX

AA# (Altered Assembly)

G39641-XXX

BIOS ID string

KCH7710H.86A

Processor

At product launch, this desktop board supports:

  • Intel Core i7 processor series in an LGA1155 socket
  • Intel Core i5 processor series in an LGA1155 socket

View all compatible Intel processor numbers

Memory
  • Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR3 16001/1333/1066 MHz DIMMs
  • Support for up to 32 GB of system memory

Chipset
  • Intel  H77 Express Chipset with Intel  Rapid Storage Technology

Graphics
  • DVI-I, HDMI, and DisplayPort for processors with Intel HD Graphics
  • Support for PCI Express 3.0 x16 add-in graphics card2

Audio

Intel High Definition Audio3 subsystem in the following configuration:

  • 10-channel (7.1+2 independent multi-streaming) audio subsystem using the Realtek* ALC892 audio codec
  • Five analog audio outputs and one optical S/PDIF out port
  • Internal S/PDIF header and front panel audio header

LAN support
  • Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel  82579V Gigabit Ethernet Controller

Peripheral interfaces
  • Two Serial ATA 6Gb/s ports
  • Three Serial ATA 3Gb/s ports
  • One eSATA 3Gb/s port
  • Ten USB 2.0 Ports , four back panel ports, four ports via internal headers, and two ports via Mini PCI
  • Express* connectorFour USB 3.0 Ports , two back panel ports, and two additional ports via internal headers

Expansion capabilities
  • One PCI Express 3.0 x 16 discrete graphics card connector
  • One PCI Express 2.0 x 1 connector
  • One PCI Express 2.0 x 4 connector
  • Three PCI Conventional* bus connectors
  • One PCI Express Mini Card connector with support for mSATA Solid-State Drive

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (Intel) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
