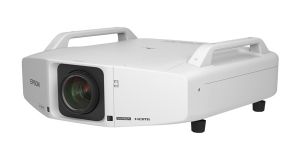

PRJ-EBZ8350W | Epson EB-Z8350W LCD Projector - WXGA, 8500 Lumens, 5000:1





Powerful performance with easy maintenance and management features, Epson’s EB-Z8350W projector is capable of creating captivating presentations in virtually any venue. Native WXGA resolution, and boasting innovative features that deliver unparalleled image quality, The EB-Z8350W is in a class of its own.





Cinema Quality Image – C2Fine LCD Panels, Cinema Filter, DCDi chip, Super Resolution and more combine to deliver phenomenal image quality
Edge Blending – Combine multiple individual images to create one seamless giant image
2X HDMI connections – Digital quality and flexibility
Tool Free Replacements – Replace lamps and filters without using any tools
360° Installation – Install on any plane, from horizontal to vertical and everything in between
Arc and Point Correction – Fine tune image geometry to perfection





Cinema Quality Images
Powered by 3LCD technology, and capable of producing White Light and Colour Light Output of 8,500 lumens, the EB-Z8350W delivers captivating images in virtually any venue.



C2Fine Technology for blacker blacks
C2Fine technology offers smooth, uniform images with exceptional contrast for better image quality. Based on this new phase-compensation technology, light leakage is eliminated, allowing for the reproduction of blacker blacks. C2Fine technology is combined with an auto iris, which allows for a contrast ratio up to 5,000:1



Enhanced Super Resolution technology for sharp, rich images
Epson’s Super Resolution technology makes standard, and high definition content come alive via its mixed colour separation techniques and imaging simulation. It delivers crisp, clear images with super high-quality resolution, and sharpens blurry images that have been enlarged by a general upscaling process.



Award-winning Faroudja DCDi® Cinema for advanced video
The EB-Z8350W features a Faroudja DCDi Cinema chipset, a video enhancement technology that produces exceptional image quality without introducing artefacts. Faroudja DCDi (Directional Correlational Deinterlacing) was developed to eliminate jagging, using a unique algorithm. This technology, in combination with decoding, Deinterlacing and enhancement technologies, won an Emmy Award from the National Academy of Television Arts and Sciences.





For special projection material such as high-quality photographs or artwork, users can adjust the hue, saturation and brightness for six colours: RGBCMY (Red, Green, Blue, Cyan, Magenta, Yellow)

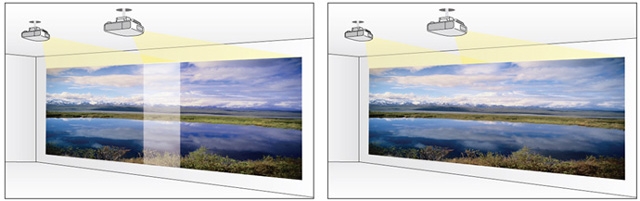

Edge blending makes it easy to use multi-screen projection and achieves a seamless panoramic image, in which colour and brightness match.





Split Screen
Split Screen allows users to display content from two inputs simultaneously, side by side, on a single screen with the option of three different layouts. This makes it possible to display video and presentation materials simultaneously, or run video on both screens.



Multi-PC Projection
Epson Multi-PC Projection allows you to display four individual PC screens simultaneously over the network (wired or wireless), with another 12 users connected to the same projector on Standby mode. You can drag and drop participants into or out of one of the four quadrants. This feature is a great tool for meetings or classroom projects where multiple users want to present and compare their screens. You can also connect up to four remote projectors at the same time and show the same multi-screen image; another great tool for remote meeting setups.



360° Projection
The EB-Z8350W can be rotated 360° in any direction for off-axis positioning flexibility. As a result, they can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.

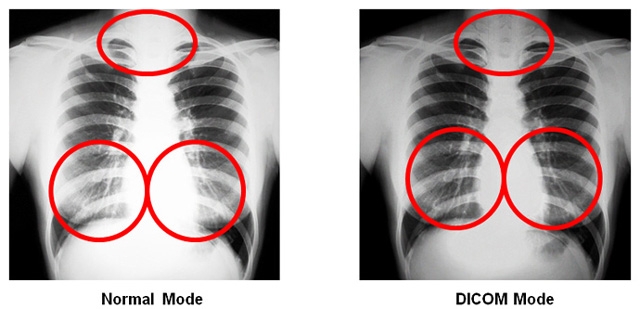

DICOM Simulation Mode
DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. The projector’s DICOM Simulation Mode enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14. This mode is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes.





Epson EasyMP
EasyMP technology makes it easy to monitor and control all networked Epson projectors. You can use the utility while performing help desk services and proactively manage your projector assets. Remotely power down your projector(s) to extend the lamp life and produce energy savings. The utility also allows you to set up email notification, verify and change internal settings, and more. The utility is packaged on a CD with the projector and can be used with a PC to check the status of a projector. It is also available online at www.epson.com.au .



Uninterrupted Operation
The EB-Z8350W boasts a dual lamp system that eliminates the risk of interruption. If one lamp were to fail, operation would continue, using the other lamp. And replacements are made easy with tool-free and unobstructed access to the rear control panel.



Protect your investment – long-life electrostatic air filter
The EB-Z8350W filter is designed to protect the optical engine, lamp and electronics from small dust particles that can enter any projector. It has a recommended 10,000-hour filter cleaning schedule. The Epson electrostatic filter captures particles as small as three microns, due in part to its pleated, expanded design. With one air intake and one exhaust path, the new Z-Series offer an efficient airflow system for optimum cooling of key components and a reduction in dust-related problems. Additionally, they have the capability to send an email notification out through the Epson monitor utility when an increase in temperature is detected, due to clogging.

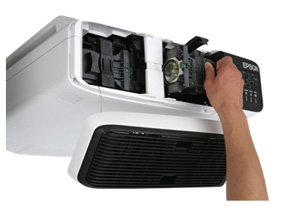

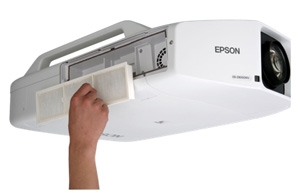

Easy Maintenance
Offering convenient access to the lamps and filter, the EB-Z8350W makes maintenance easier than ever, even if the projector is ceiling mounted. The lamp cover is located on the rear side panel and there are no screws, so the lid can be removed without any special tools. In addition to easy lamp and filter replacements, the EB-Z8350W includes features that make it easy to monitor and control. With EasyMP Monitor, users can access advanced status functions over the LAN.



Quiet, reliable liquid cooling system
Epson’s innovative system uses liquid to cool the LCD chips directly. The liquid absorbs the heat and is then cooled by a peltier device, which is then cooled by a fan, thereby keeping the overall optical engine cool. This system design promotes greater reliability and enables stable operation in temperatures up to 50°C. In addition, it offers quiet, unobtrusive operation and allows for off-axis installation orientations.





Lens Shift
Epson lens shift technology enables outstanding installation flexibility with an incredible range of up to + or – 70% on the vertical axis and up to + or – 20% on the horizontal axis. Users can operate the lens shift functions using the remote control, the projector control panel, or control commands.

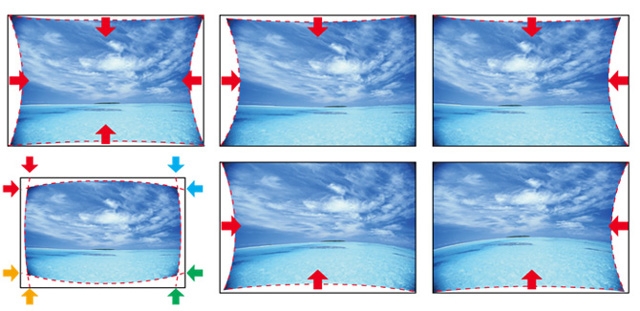

Arc Correction
Using arc correction, you can adjust each side of a projected image in an arch or barrel-shaped way, making it easier than ever to get a perfectly rectangular image.





Test Patterns
The EB-Z8350W also includes six test patterns with precise setup features, including detecting distortion, checking linearity, colour reproduction and bleeding, and tone production check.



Centered lens design
Featuring a centered lens design, the EB-Z8350W makes installation easy to plan. Positioning the ceiling mount, screen and projector can be performed individually and independent of one another.

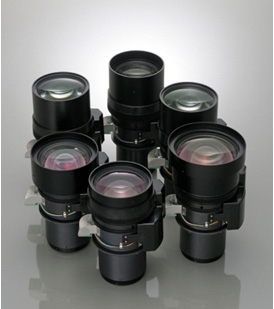

Six Powered Lens Options
For great flexibility, the EB-Z8350W offers a total of six lenses including short, wide, and rear, along with mid to long throw lenses that allow users to choose the motorized lens most suited for their environment. A quick release lever allows for a fast, easy lens exchange. (Lens not included with ‘NL’ models)









PRODUCT NAME	EB-Z8350WU - White Case
PRODUCT CODE	V11H460053
PRODUCT NAME	EB-Z8355WU - Black Case
PRODUCT CODE	V11H460153
WHAT'S IN THE BOX
	Epson EB-Z8350WU - White Case, or EB-Z8355WU - Black Case,1.8m Computer Cable, Remote Control, Foot Cover, 3m Power Cord, Manual
TECHNOLOGY
Projection System	Epson 3LCD, 3-chip technology
LCD Panel	0.95-inch wide panel with MLA (D7, C2 Fine)
OPTICAL
Zoom	1 - 1.61 (Powered Optical Zoom)
Screen Size	60" to 500"
Projection Distance	100" screen 3.68 m - 5.97 m
Throw Ratio	1.71 (Zoom:Wide), 2.78 (Zoom:Tele)
Projection Lens F Number	1.65 - 2.51
Projection Lens Focal Length	36.00mm-57.35mm
Focus Method	Powered Focus
Offset	Lens dependant
Colour Light Output	8,500 Lumens
White Light Output	8,500 Lumens
Resolution	WXGA
Native Aspect Ratio	16:10
Contrast Ratio	5,000:1
Lamp Hours	Normal/Eco: 2,500/3,500 Hours
Lamp Type	2 x 340 W UHE
Keystone Correction	Vertical: -30 to +30 degrees Horizontal: -20 to +20 degrees
Lens Shift	Vertical: -70% to +70% (Powered) Horizontal: -20% to +20% (Powered)
Tilt Angle	-3.5 to 3.5 degrees

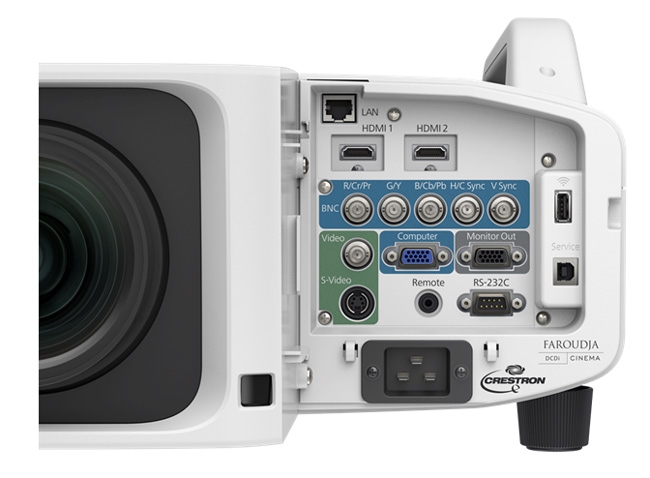

CONNECTIVITY
Input: Video	1 x RCA (Yellow), 1 x S-Video, 1 x 5BNC, 1 x Component (via D-sub 15-pin)
Input: Computer	1x D-sub 15-Pin (RGB)
Input: USB Memory Device	-
Input: Three-In-One USB Display	-
Input: Digital	2 x HDMI
Input: SDI	-
Input: Audio	2 x HDMI
Input: Control	1 x RS-232C, 1 x RJ45, 1 x Remote (Stereo mini Jack)
Wireless Connectivity	Optional
Output: Video	1 x Monitor Out (via D-sub 15-pin)
Output: Audio	-
Speaker Output	-
ADVANCED FEATURES
EasyMP Network & Control	Yes
EasyMP Network Projection	Yes
Split Screen	Yes
Edge Blending	Yes
Arc Correction	Yes
Super Resolution	Yes
Frame Interpolation	No
360 Degrees Projection	Yes
Instant Off	Yes
Direct Power On/Off	Yes
Security	Kensington -style lock provision Padlock & Security cable hole Password protect function
Colour Modes	Photo, Presentation, Theatre, Dynamic, sRGB, Multi-Projection, DICOM SIM
GENERAL
Dimensions D x W x H	534 x 734 x 167 mm (not including foot, projection lens and handle)
Weight	Approx. 22 kg (Including lens)
Lamp Warranty	12 months or 750 hours*
Projector Warranty	4 Years or 10,000 Hours*
Power Consumption: Lamp on	Normal/Eco: 911/738W
Power Consumption: Standby	0.49W (communication off)
Noise Level	Normal: 40dB / Eco: 35dB
* Whichever comes first. For more information visit Epson Projector Warranty
PRODUCT OPTIONS	Item Code	Description
	V13H010L72	Replacement lamp to suit EB-Z Series
	V13H010L73	Replacement lamp to suit EB-Z Series (Twin pack)
	V13H134A23	Replacement Electrostatic Filter (10,000 hours)
	V12H418P13	Wireless LAN adaptor to suit EB-Z Series
	V12H003B25	Ceiling Mount for EB-Z Series (Flush)
	V12H003B26	Ceiling Mount for EB-Z Series (Telescopic)
	V12H004S04	Standard Zoom Lens for EB-Z series
	V12H004R04	Rear Projection Wide Lens for EB-Z Series
	V12H004W04	Wide Zoom Lens for EB-Z Series
	V12H004M06	Middle Throw Lens for EB-Z Series
	V12H004M07	Middle Throw Zoom Lens for EB-Z Series
	V12H004L07	Long Throw Zoom Lens for EB-Z-Series
