All stock codes associated to this product
HD77501GD5V2, HD7750-1GD5-V2
- GPU Tweak utility helps you modify and tune clock speeds, voltages, and fan performance via an intuitive interface.
- AMD Eyefinity technology extends your viewing landscape across multiple monitors.
- New PCIe 3.0 delivers double the bandwidth per lane of PCIe 2.0 for faster GPUCPU communication.
Overview
28nm GPU power and efficiency unit!
ASUS Exclusive Innovation
Super Alloy Power
Super Alloy Power blends selected elements under ASUS exclusive formula, resulting in a 15 % performance increase, 2.5 times longer product lifespan and 35C cooler operation
Dust-proof Fan
Dust-proof Fan efficiently dissipates heat while extending lifespan by 25%
GPU Tweak
GPU Tweak co-developed with the most authoritative GPU-Z to provide the most accurate information
820 MHz Overclock
For better performance and outstanding gaming experience
Graphics GPU Features
 |
Powered by AMD Radeon HD 7750
|
 |
28nm GPULess power consumption & more efficient transistor
|
 |
PCIE3.0Delivers double the bandwidth per lane of PCIe Gen 2 for faster GPU CPU communication
|
 |
AMD Eyefinity Technology Extends your visual horizon across 3 displays to immerse yourself in gameplay and entertainment
|
 |
AMD HD3D TechnologyOptimize stereoscopic 3D gaming and movie-watching entertainment.
|
 |
DirectX 11 SupportBring new levels of visual realism to gaming on the PC and get top-notch performance
|
 |
Software CrossFire X SupportMulti-GPU technology for extreme performance
|
 |
Microsoft Windows 7 CompatibleEnable PC users to enjoy an advanced computing experience and to do more with their PC
|

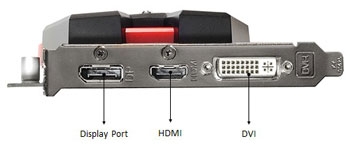

I/O Ports Highlight
Specifications:
| Graphics Engine |
AMD Radeon HD 7750 |
| Bus Standard |
PCI Express 3.0 |
| Video Memory |
GDDR5 1GB |
| Engine Clock |
820 MHz |
| Memory Clock |
1150 MHz ( 4600 MHz GDDR5 ) |
| RAMDAC |
400 MHz |
| Memory Interface |
128-bit |
| Resolution |
D-Sub Max Resolution : 2048x1536
DVI Max Resolution : 2560x1600 |
| Interface |
D-Sub Output : Yes x 1 (via DVI to D-Sub adaptor x 1)
DVI Output : Yes x 1
HDMI Output : Yes x 1
Display Port : Yes x 1 (Regular DP)
HDCP Support : Yes |
| Accessories |
1 x DVI to D-Sub adaptor |
| Software |
ASUS Utilities & Driver |
| ASUS Features |
Super Alloy Power |
| Dimensions |
7.8 " x 5 " x 1.7 " Inch |
| Note |
To ensure optimum performance and stability, avoid using ASUS HD 7700 Series cards with Windows XP, as official AMD driver support will not be added until April 2012. For best results on Win 7/Vista 32bit/64bit, download drivers from the links below:https://support.amd.com/us/kbarticles/Pages/hd7700series7support.aspx |
