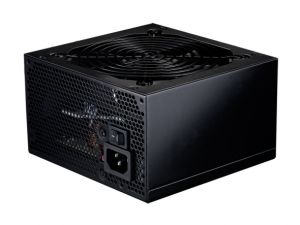

Extreme 2 525
(RS-525-PCAR)
Introduction
The new release Extreme2 series packs a powerful punch by delivering stable streams of power through dual +12V outputs which will operate better and more efficient to your system. With the highly durable capacitor that can resist the heat up to 105 ? as well as the multiple protection designs and reliable 3 year warranty service, there’s no doubt it’s a great choice for home or office PC build or upgrade.
Features
Intel Compliant
ATX12V v 2.3 and EPS version 2.91 compliant.
Dual 12 V Power Rail
Tackling challenges from the most power-intensive peripherals head on, this solitary 12 V power rail provides ample power and strong resistance to any overloading.
Double-Layer EMI Filter
Dual protection from electromagnetic interference, thus restraining noise and interference for greater protection for you and your connections.
Intelligent Fan Speed Control
120 mm silent fan with built-in fan control provides first class airflow and low noise level.
Massive Bulk Capacitor
Producing hold times >17ms upon full loading.
And More
Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP), Short Circuit Protection (SCP) and Over Current Protection (OCP)
MTBF 100,000 hours for high reliability.
Three years warranty worldwide.
Specifications:
| Model |
RS-525-PCAR |
| |
| Type |
Intel Form Factor ATX 12V V2.3 |
| |
| Dimension (W / H / D) |
150 x 140 x 86mm
5.9 x 5.5 x 3.4 inches |
| |
| Input Voltage |
110-120 / 220-240 Vac |
| |
| Input Current |
10 / 5A |
| |
| PFC |
Non PFC |
| |
| MTBF |
100,000 Hours |
| |
| Protection |
OVP/UVP/OCP/OPP/OTP/SCP |
| |
| Regulatory |
TUV / CE / UL / FCC / BSMI / GOST / C-tick / KC / CCC |
| |
| Fan |
120 mm |
| |

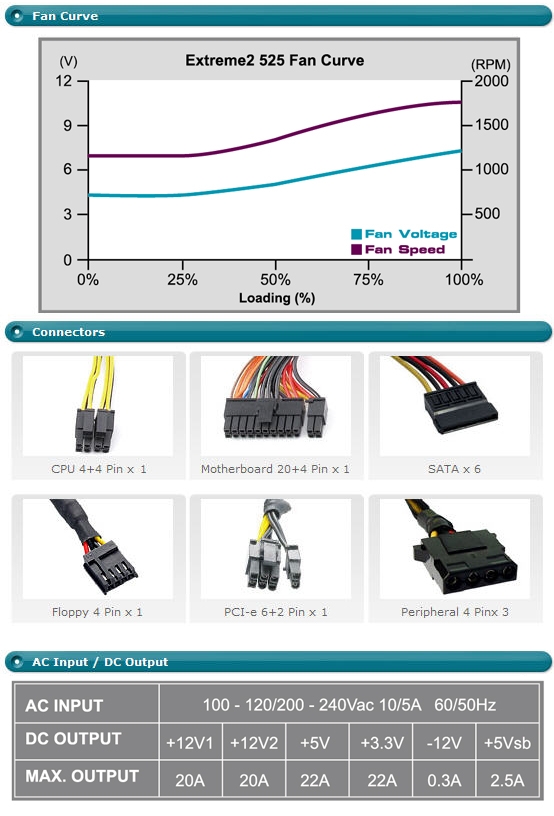

| Connector |
M/B 20+4 Pin Connector x 1
CPU 4+4 Pin x 1
PCI-E 6+2 Pin x 1
SATA x 6
4 Pin Peripheral x 3
4 Pin Floppy x 1
|
| |
