AX7950-3GBD5-2DHV2 | PowerColor Radeon HD 7950 - 3GB GDDR5 - (800MHz, 5000MHz)

Computer parts - Techbuy Home Computers Custom PC Systems Tablets Networking Printers Phones Point of Sale Gaming

HOME / Back -> Video Cards -> Radeon PCI-Ex 7xxx Series -> PowerColor

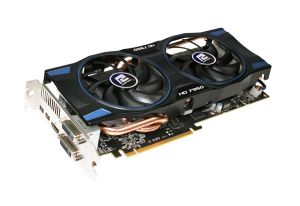

PowerColor Radeon HD 7950 - 3GB GDDR5 - (800MHz, 5000MHz)
384-bit, 2xDVI, HDMI, 2xMini-DisplayPort, PCI-Ex16 v3.0, Fansink - V2 Edition

No Longer Available

Part Number:

195486

(?) Brand:

PowerColor

Manuf No:

AX7950-3GBD5-2DHV2
AX79503GBD52DHV2

Shipping Weight:

2 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

AX79503GBD52DHV2, AX7950-3GBD5-2DHV2

PowerColor HD7950 3GB GDDR5 (V2)

Part Number: AX7950 3GBD5-2DHV2

Graphics Engine: RADEON HD7950

Video Memory: 3GB GDDR5

Engine Clock: 800MHz

Memory Clock: 1250MHz x 4 (5.0 Gbps)

Memory Interface: 384bit

DirectX Support: 11.1

Bus Standard: PCIE 3.0

Display Connectors: DL-DVI-I/ SL-DVI-D / HDMI / MINI DPx2

Features:

PCI Express 3.0 x16 bus interface

DirectX 11-compatible graphics
- 9^th generation programmable hardware tessellation units
- Shader Model 5.0
- DirectCompute 11
- Accelerated multi-threading
- HDR texture compression
- Order-independent transparency

OpenGL 4.2 support

Image quality enhancement technology
- Up to 24x multi-sample and super-sample anti-aliasing modes
- Adaptive anti-aliasing
- Morphological Anti-Aliasing (MLAA)
- DirectX 10/11 Super-Sample Anti-Aliasing (SSAA)
- 16x angle independent anisotropic texture filtering
- 128-bit floating point HDR rendering

AMD Eyefinity multi-display technology¹
- Up to 6 displays supported with DisplayPort 1.2 Multi-Stream Transport
- Independent resolutions, refresh rates, color controls, and video overlays
- Display grouping
  - Combine multiple displays to behave like a single large display

AMD App Acceleration²
- OpenCL 1.2 Support
- Microsoft C++ AMP
- DirectCompute 11
- Double Precision Floating Point
- AMD HD Media Accelerator
  - Universal Video Decoder (UVD)
    - H.264
    - VC-1
    - MPEG-2 (SD & HD)
    - MVC (Blu-ray 3D)
    - MPEG-4 Part 2 (DivX/Xvid)
    - Adobe Flash
    - DXVA 1.0 & 2.0 support
  - Enhanced Video Quality features
    - Advanced post-processing and scaling
      - Deblocking
      - Denoising
      - Automatic deinterlacing
      - Mosquito noise reduction
      - Edge enhancement
      - 3:2 pulldown detection
    - Advanced video color correction
      - Brighter whites processing (Blue Stretch)
      - Independent video gamma control
      - Flesh tone correction
      - Color vibrance control
      - Dynamic contrast
      - Dynamic video range control
- AMD HD3D technology⁴
  - Stereoscopic 3D display/glasses support
  - Blu-ray 3D support
  - Stereoscopic 3D gaming
  - 3^rd party Stereoscopic 3D middleware software support
- AMD CrossFire multi-GPU technology⁵
  - Dual, triple or quad-GPU scaling
- Cutting-edge integrated display support
  - DisplayPort 1.2
    - Max resolution: 4096x2160 per display
    - Multi-Stream Transport
    - 21.6 Gbps bandwidth
    - High bit-rate audio
    - Quad HD/4k video support
  - 3GHz HDMI 1.4a with Stereoscopic 3D Frame Packing Format, Deep Color, xvYCC wide gamut support, and high bit-rate audio
    - Max resolution: 4096x2160
    - 1080p60 Stereoscopic 3D
    - Quad HD/4k video support
  - Dual-link DVI with HDCP
    - Max resolution: 2560x1600
  - VGA
    - Max resolution: 2048x1536
- Integrated HD audio controller
  - Output protected high bit rate 7.1 channel surround sound over HDMI with no additional cables required
  - Supports AC-3, AAC, Dolby TrueHD and DTS Master Audio formats
- AMD PowerPlay power management technology³
  - Automatic power management with low power idle states
- AMD PowerTune technology³
  - Intelligent TDP management technology
  - Dynamic clockspeed/performance enhancement for games
- AMD Catalyst graphics and HD video configuration software
  - Software support for Windows 7, Windows Vista, and Windows XP
  - AMD Catalyst Control Center - AMD Catalyst software application and user interface for setup, configuration, and accessing features of AMD Radeon products.
  - Unified Graphics display driver - AMD Catalyst software enabling other PC programs and devices to use advanced graphics, video, and features of AMD Radeon products.
1. AMD Eyefinity technology works with games that support non-standard aspect ratios, which is required for panning across multiple displays. To enable more than two displays, additional panels with native DisplayPort? connectors, and/or DisplayPort^TM compliant active adapters to convert your monitors native input to your cards DisplayPort^TM or Mini-DisplayPort^TM connector(s), are required. SLS (Single Large Surface) functionality requires an identical display resolution on all configured displays.
2. AMD EyeSpeed is a set of technologies designed to improve video quality and enhance application performance. Full enablement of some features requires support for AMD Accelerated Parallel Processing (APP) technology and/or AMDs Universal Video Decoder (UVD).
3. AMD PowerPlay^TM and AMD Accelerated Parallel Processing (APP) are technology platforms that include a broad set of capabilities offered by certain AMD Radeon^TM HD GPUs. Not all products have all features and full enablement of some capabilities and may require complementary products.
4. Requires application support for AMD Accelerated Parallel Processing (APP) technology. AMD Accelerated Parallel Processing technology works with applications designed to take advantage of its GPU acceleration capabilities.
5. AMD HD3D is a technology designed to enable stereoscopic 3D support in games, movies and/or photos. Requires 3D stereo drivers, glasses, and display.
6. AMD CrossFireX^TM technology requires an AMD CrossFireX Ready motherboard, an AMD CrossFireX^TM Bridge Interconnect (for each additional graphics card) and may require a specialized power supply.

The entire information provided herein are for reference only. PowerColor reserves the right to modify or revise the content at anytime without prior notice.

Specification

Feature Support
Graphics Engine	RADEON HD7950
Video Memory	3GB GDDR5
Engine Clock	800MHz
Memory Clock	1250MHz x 4 (5.0 Gbps)
Memory Interface	384bit
DirectX Support	11.1
Bus Standard	PCIE 3.0
Standard Display Connecors	DL-DVI-I/ SL-DVI-D / HDMI / MINI DPx2
OpenGL	Support
CrossFireX Technology	Support
ATI Stream Technology	Support
ATI Eyefinity Technology	Support
ATI Hypermemory Technology
Display Support
VGA Output	Via Adapter
DVI Output	DL-DVI-I/ SL-DVI-D
DisplayPort	On Board(Mini DP)
HDMI	On Board
TV Output
HDTV Output
HDCP Support	Support
Maximum Resolution
VGA	2048x1536
DVI	2560x1600
DisplayPort	4096x2160
HDMI	4096x2160
Power Specs + Board Dimensions
Board Dimensions	265mmx135mmx38mm
Minimum System Power requirement (W)	500W
Extention Power Connector	Two 6-Pin PCI Express Power Connectors

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
