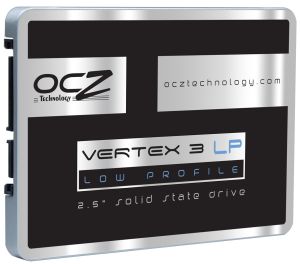

VTX3LP-25SAT3-120G







OCZ Vertex 3 Low Profile Solid State Drives are built to unleash the full potential of the 6Gbps SATA III interface in a new sleeker form factor designed for high performance computing applications.



With increasingly thinner notebooks dominating the industry, the new 7mm height form factor easily integrates into the latest mobile computing platforms. The OCZ Vertex 3 LP features incredible data transfer rates and responsiveness, significantly improving your gaming, multimedia, and overall computing experience over traditional mechanical hard drives. Using leading controller and flash technology, Vertex 3 LP SSDs are ideal for next generation platforms and operating systems to deliver a faster, more versatile storage solution.



Built with the quality, reliability, and durability that lives up to the OCZ name, the Vertex 3 LP Series easily integrates into todays mobile and desktop platforms and features TRIM support to optimize performance over the drives lifespan as the ultimate Windows 7 companion. Vertex 3 SSDs are available in 60GB to 480GB capacities and come backed by a 3-Year Warranty.



Important SSD notes: Solid State Drives DO NOT require defragmentation. It may decrease the lifespan of the drive. Consumers may see a discrepancy between reported capacity and actual capacity; the storage industry standard is to display capacity in decimal. However, the operating system usually calculates capacity in binary format, causing traditional HDD and SSD to show a lower capacity in Windows. In the case of SSDs, some of the capacity is reserved for formatting and redundancy for wear leveling. Rated speeds may vary slightly depending on the benchmark used, drivers, windows version, bios version and file size. We recommend using ATTO, IOMeter, and PC Mark Vantage for benchmarking SSDs and to achieve maximum rated specifications. Maximum performance is achieved by using the P67 chipset with Native SATA 6Gbps.



• Available in 60GB, 120GB, 240GB, 480GB Capacities
• MLC NAND Flash
• Interface: SATA 6Gbps / Backwards Compatible 3Gbps
• Native TRIM support
• Seek Time: .1ms
• Low Profile 2.5" Design
• 99.7 x 69.75 x 7mm
• Lightweight: 116g
• Operating Temp: 0C ~ 70C
• Ambient Temp: 0C ~ 55C
• Storage Temp: -45C ~ 85C
• Low Power Consumption: 3W Active, 1.65W Idle
• Shock Resistant up to 1500G
• RAID Support
• Compatible with Windows 7, Vista, XP 32-bit/64-bit, Mac OSX
• MTBF: 2 million hours
• 3-Year Warranty

• Max Read: up to 535MB/s
• Max Write: up to 480MB/s
• Random Write 4KB: 60,000 IOPS
• Maximum 4K Random Write: 80,000 IOPS

• Max Read: up to 550MB/s
• Max Write: up to 500MB/s
• Random Write 4KB: 60,000 IOPS
• Maximum 4K Random Write: 85,000 IOPS

• Max Read: up to 550MB/s
• Max Write: up to 520MB/s
• Random Write 4KB: 60,000 IOPS
• Maximum 4K Random Write: 85,000 IOPS

• 60GB: VTX3LP-25SAT3-60G
• 120GB: VTX3LP-25SAT3-120G
• 240GB: VTX3LP-25SAT3-240G
• 480GB: VTX3LP-25SAT3-480G
