Our Price:
$101.15
RRP:
$119.00
You Save:
$17.85

Part Number:
197620
Usually Ships:
1-3 Days More info
(?) Brand:
Manuf No:
TL-WDR4300
TLWDR4300
Shipping Weight:
2 KG (Includes product packaging)
N750 Wireless Dual Band Gigabit Router

TL-WDR4300

Highlights:

  • Simultaneous 2.4GHz 300Mbps and 5GHz 450Mbps connections for 750Mbps of total available bandwidth
  • 2*USB Ports - Easily share printers, files or media with your friends or family locally or over the internet
  • Full gigabit ports ensure ultimate transfer speeds
  • Achieves blazing WAN to LAN throughput of over 800Mbps with hardware NAT

Overview

What This Product Does

TP-LINKs TL-WDR4300 is a performance optimized simultaneous dual band wireless router combining the blazing fast speeds of 450Mbps using the crystal clear 5GHz band and 300Mbps using the traditional 2.4GHz band. With simultaneous dual band, users have 750Mbps of total bandwidth to power numerous bandwidth intensive applications at the same time around a large home or office setting, where simple tasks such as e-mail or web browsing can be handled by the 2.4GHz band at 300Mbps and more latency sensitive tasks such as online gaming or HD video streaming can be processed over the 5GHz band at 450Mbps, at the same time. With five Gigabit ports and 800Mbps+ hardware NAT, your wired devices will have lightning-fast, lag-free connections and, in addition to 2 USB 2.0 ports capable of sharing flash storage, printers, ftp servers and media players, users can power a robust home media network.

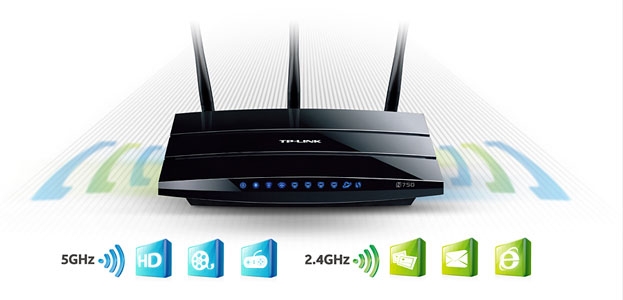

5GHz 450Mbps + 2.4GHz 300Mbps - Concurrent Dual Band Wireless

The TL-WDR4300 broadcasts and receives both 2.4GHz and 5GHz connections simultaneously at 300Mbps and 450Mbps respective speeds. Like two wireless routers in one, this allows users to run day-to-day applications, such as e-mail and web browsing over the 2.4GHz band at 300Mbps while using bandwidth intensive or latency sensitive applications, such as streaming HD video or playing online games, over the clearer 5GHz band at 450Mbps, at the same time.

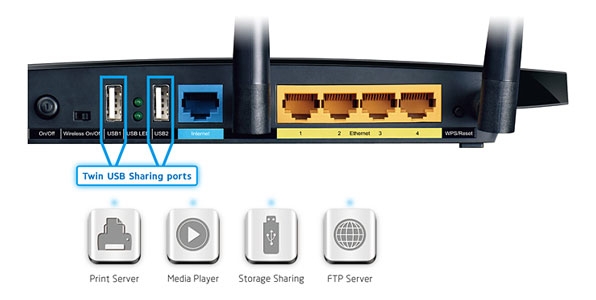

Versatile 2* USB Sharing Ports

Using the TL-WDR4300s two multi-functional USB 2.0 ports, users can share printers, files and media either throughout the network at home with several different computers or even away, using the devices ftp server functions so that you never have to part with your files.

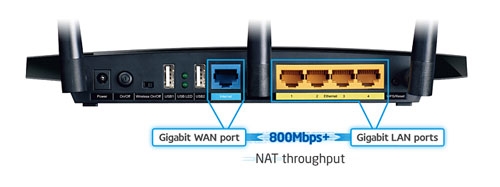

Blazing Wired Speeds 5 Gigabit Ports + 800Mbps Hardware NAT

With one Gigabit WAN port and four Gigabit LAN ports, the TL-WDR4300 is able to support a robust and extremely fast wired network, ideal for latency-sensitive applications such as HD media and online gaming. With built-in gigabit Ethernet switch and a Hardware NAT function, the wireless router provides powerful data processing capabilities. Its NAT WAN to LAN throughput can achieve up to 800Mbps+ allowing users to unleash the full potential of their networks.

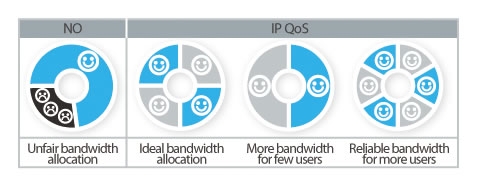

IP QoS Control Your Bandwidth

TL-WDR4300 supports IP QoS (Quality of Service), allowing optimum utilization of bandwidth and offering bandwidth control over congestion, preventing bandwidth abuse. In this way, users of a small network receive committed and specific bandwidth, preventing non-critical applications from degrading network performance.


One Button Security Setup

Compatible with Wi-Fi Protected Setup (WPS), TL-WDR4300 features Quick Security Setup that allows users to almost instantly setup their security simply by pressing the WPS button on the router and automatically establishing a WPA2 secure connection, which is more secure when compared with WEP encryptions.

Not only is this faster than normal security setups but more convenient in that users neednt remember a password!

Easy to Use

The device comes with a CD featuring an Easy Setup Assistant that leads users through the setup process step-by-step, and even helps with wireless network settings and security configurations. With setups this easy, even novice users can have their networks up and running in mere minutes.

Features:

  • Simultaneous 2.4GHz 300Mbps and 5GHz 450Mbps connections for 750Mbps of total available bandwidth
  • 2*USB 2.0 port convenient for network-connected users to share files through the devices FTP server
  • Built-in media server allows users to share music, video and photos with Windows Media Player, PS3 or X-BOX 360
  • The devices built-in print server supports wireless printing from different computers by connecting a USB printer to the router
  • Full gigabit ports ensure ultimate transfer speeds
  • Achieves blazing WAN to LAN throughput of over 800Mbps with hardware NAT
  • Simple wireless security encryption at a push of the WPS button
  • WDS wireless bridge provides seamless bridging to expand the wireless network
  • IP-based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC
  • Live Parental Controls allow parents or administrators to establish restricted access policies for children or staff
  • External detachable antennas allow for better alignment and stronger antenna upgrades

Specifications:

HARDWARE FEATURES
Interface 4 10/100/1000Mbps LAN Ports
1 10/100/1000Mbps WAN Port
2 USB 2.0 Port
Button WPS/Reset Button
Wireless On/Off Switch
Power On/Off Button
External Power Supply 12VDC / 1.5A
Dimensions (W X D X H) 9.6x6.4x1.3 in.(243x160.6x32.5mm)
Antenna 3 external detachable dual band antennas (RP-SMA)
WIRELESS FEATURES
Wireless Standards IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency 2.4GHz & 5GHz
Signal Rate 5GHz: Up to 450Mbps
2.4GHz: Up to 300Mbps
EIRP <20dBm
Reception Sensitivity 300M_2.4G: -70dBm
270M_2.4G: -70dBm
195M_2.4G: -71dBm
130M_2.4G: -74dBm
54M_2.4G: -79dBm
6M_2.4G: -94dBm
450M_5G: -64dBm
405M_5G: -64dBm
270M_5G: -67dBm
195M_5G: -70dBm
130M_5G: -73dBm
54M_5G: -79dBm
6M_5G: -92dBm
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
SOFTWARE FEATURES
WAN Type Dynamic IP/Static IP/PPPoE/
PPTP (Dual Access)/L2TP (Dual Access)/BigPond
DHCP Server, Client, DHCP Client List,
Address Reservation
Quality of Service WMM, Bandwidth Control
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec
Access Control Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
USB Sharing Support Samba(Storage)/FTP Server/Media Server/Printer Server
Management Access Control
Local Management
Remote Management
OTHERS
Certification CE, FCC,IC, RoHS
Package Contents TL-WDR4300
3 detachable dual band antennas
Power supply unit
Resource CD
Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.
Environment Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
