CoolerMaster HAF-XM Midi-Tower Case - NO PSU, Full Midnight Black
  • 2xUSB2.0, 2xUSB3.0, 1xHD-Audio, 3x200mm Fan, 1x140mm Fan, Side-Window, Mesh, Synthetics, Steel, ATX

IMG 1 of 6
No Longer Available
Part Number:
197690
(?) Brand:
CoolerMaster Web Site
Manuf No:
RC-922XM-KWN2
RC922XMKWN2
Shipping Weight:
20 KG (Includes product packaging)
Estimate Shipping
Date Added:
30/5/2012
Details Files Images & Video
All stock codes associated to this product
RC922XMKWN2, RC-922XM-KWN2, CACMRC922XMKWN, CACM-RC922XMKWN
HAF XM (side window panel version) (APAC only)

(RC-922XM-KWN2)

Introduction

HAF XM - a "mid tower" version of the HAF X, which comes with full tower features for PC enthusiasts. The side window panel offers the best inner view for built system. It supports up to four 200mm fans to keep constant cooling while housing high-end components, such as AMD Radeon HD 7970 and NVIDIA GTX 680. It also supports up to 9 HDDs and 8+1 expansion slots for 3-Way SLI/CF. The smart design of latch on side panel and sliding PSU cable cover ensures the convenience and neatness of system building. The two USB 3.0 Super Speed ports are located on front panel for faster data transfer and easy access.

Features

  • Enthusiast case with the support for four 200mm fans

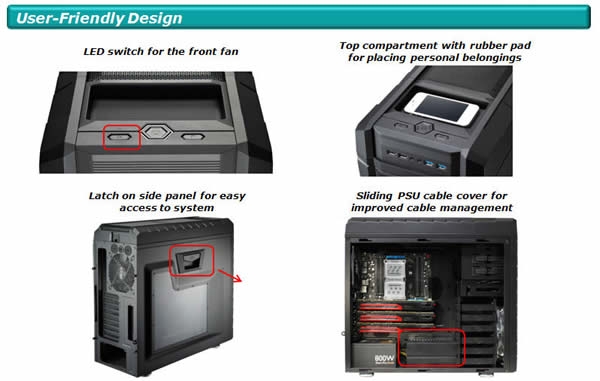

  • Latch on 90 rotated side panel for easy system access

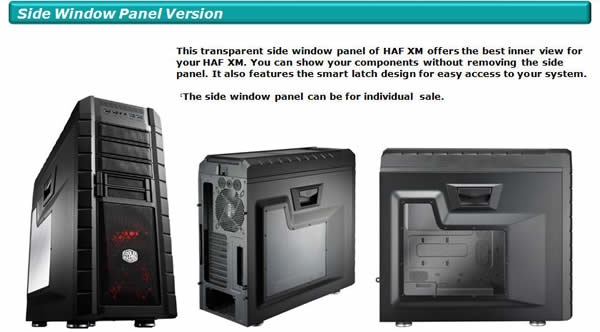

  • Side window panel offers the best inner view for system
  • Rich I/O panel with two USB 3.0 super speed ports

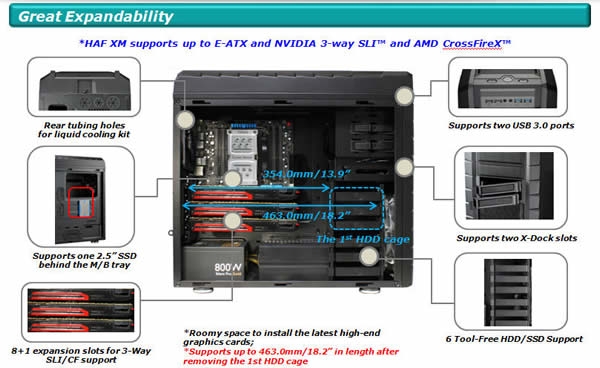

  • 8+1 expansion slots for NVIDIA 3-way SLI and AMD CrossFireX
  • Supports up to 9 HDDs, including two X-Dock slots and one behind the motherboard tray
  • Sliding PSU cable cover for improved cable management
  • Top compartment with rubber pad for placing personal belongings
  • Mesh on front panel, top cover, and bottom vents for excellent cooling


Specifications:

Available Color Full Midnight Black

Material Appearance: Mesh, Synthetics; Case body: Steel

Dimension (W / H / D) 252 x 530.5 x 579 mm / 9.9 x 20.9 x 22.8 inch

Weight 10.5 kg / 23.1 lb

M/B Type Micro-ATX, ATX, E-ATX

5.25" Drive Bay 3

3.5" Drive Bay 8 (hidden:6, X-Dock:2)

2.5"/3.5"- SATA HDD Drive Bay 9 (6 are converted from 3.5" bays, X-Dock x 2, 1 is behind the M/B tray)

I/O Panel USB 3.0 x 2 (int.), USB 2.0 x 2, Audio In & Out x 1
(supports HD Audio), LED switch for the front fan

Expansion Slots 8+1

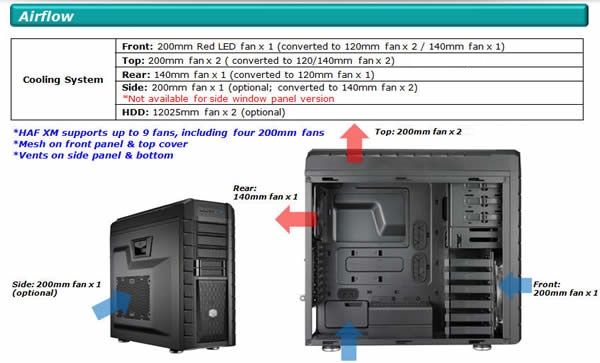

Cooling System Front: 200mm Red LED fan x 1
(converted to 120mm fan x 2 / 140mm fan x 1)
Top: 200mm fan x 2 ( converted to 120/140mm fan x 2)
Rear: 140mm fan x 1 (converted to 120mm fan x 1)
HDD: 120mm fan x 2 (optional)

Power Supply Standard ATX PS2 / EPS (optional)

Maximum Compatibility VGA card length : 354.0 mm / 13.9 inch (with HDD cage)
463.0 mm / 18.2 inch (without HDD cage)
CPU cooler height: 196.0 mm / 7.7 inch
