Part Number:
198285
Usually Ships:
No Longer Available More info
(?) Brand:
Manuf No:
24EPG-E50AC1-21R
24EPGE50AC121R
Shipping Weight:
3 KG (Includes product packaging)

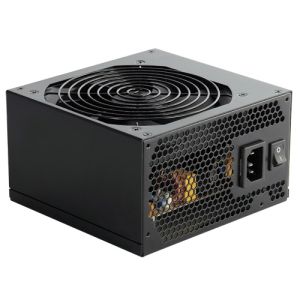

Superb E620

Key Features


Intel Specification

Complies with Intel ATX 12V v2.3 power supply design guide.


Japan Made Main Capacitor


Best reliability Japan made main capacitor, prolonging the life cycle of each power supply unit and provide a more steady output.


Dual +12V rails


2rails +12V design, capable of supplying high power output.


12cm Cooling Fan

12cm silent cooling fan with smart fan control sensor.


Multi-Protection

Over-voltage, over-current, under-voltage and short-circuit protection to ensure the sytem stability.


Sleeve Cable

Sleeve cable for good air convection and tidiness.


PCI-E 2.0 Ready


Support the latest specification (6+2)-Pin.


EUP Ready

Complies with newest Europe EUP energy saving specifiction.


80 Plus Certified

High efficiency circuit design, save both the energy and your bill.


RoHS Certified


Environment friendly, complying with RoHS & WEEE regulations.

Specifications:

Model no. GE-E620A-C3
Dimension ( L x W x H ) 86 x 140 x 150mm
Weight 2 kg
Connector
(20+4)-pin Motherboard Connector 1
(4+4) +12V CPU Connector 1
(6+2)-pin PCI-E 2.0 Connector 2
SATA Connectors 4
4-pin Peripheral Connectors 4
4-pin Floppy Connector 1
Info
AC INPUT 100-240Vac 7.5-4A
FREQUENCY 50-60Hz
PFC TYPE Active PFC
DC OUTPUT +3.3V +5V +12V1 +12V2 -12V +5Vsb
OUTPUT CURRENT 24A 24A 18A 18A 0.5A 2.5A
123W 36A
Certifications 80Plus, SLI
Safety Approval cUL, CSA, TUV, CB, CE, FCC, BSMI, CCC, C-Tick


No additional files, specification sheets, guides or documentation found for product.

No related products found.

Warranty: 2-year Manufact.

Full manufacturers warranty details are available at the manufacturers (Gigabyte) web site.
