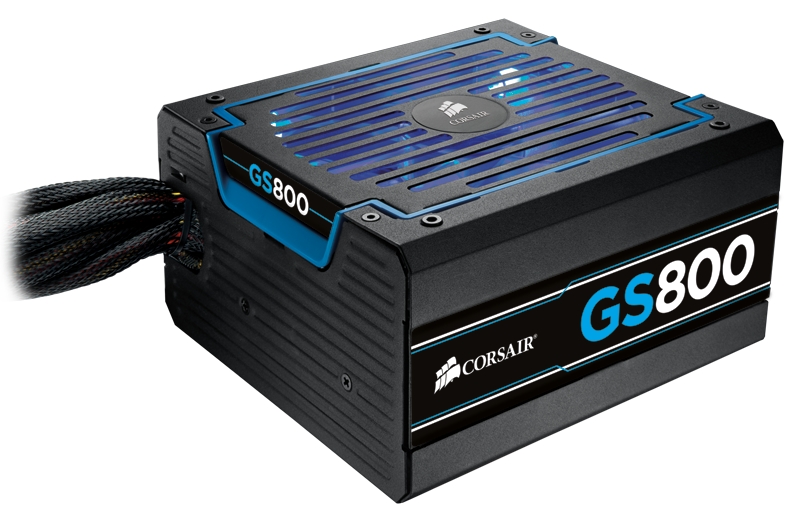

GS Series™ GS800 — 80 PLUS® Bronze Certified Power Supply
GS Series is a great price/performance choice for gamers who need an efficient and reliable power supply that’s designed to look great in gaming rigs.
SKU# CP-9020014-AU
Overview
Customize your look
If you're serious about building gaming PCs, your PC's look is important. The color ring accessory pack, available separately, lets you match your GS Series PSU's accent color to your system's look, and the fan has red, white and blue LEDs (blue only on the GS600) to bathe the inside of your system in soft light. Running in stealth mode? You can turn off the lighting with a hardware switch that's accessible from outside the case.
GS Series provides renowned Corsair reliability and efficiency in a distinctive design.
Quiet Operation
A good gaming power supply must provide the cooling you need when you're pushing it hard, but it should be quiet when you're not. GS Series PSUs accomplish this through excellent efficiency — it generates less heat, so it requires less cooling — and a temperature-controlled 140mm fan that automatically adjusts its speed to meet demand. It doesn't even spin up until it's needed.

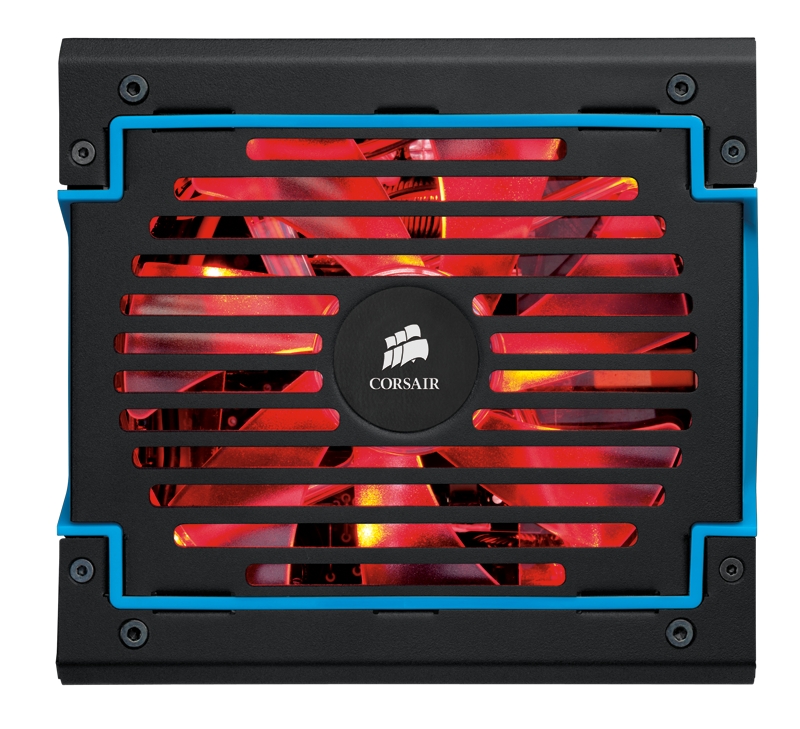

The fan LEDs can be turned on and off, with your choice of red, blue, or white. The color accessory pack (available separately) allows you to swap out the blue accent ring to match your PC's color scheme.
Reliable
No matter what your budget, your PC's power supply shouldn't go before its time. GS Series PSUs are built with carefully selected components to deliver a temperature rating of 40° C, for years of service in punishing environments. The fan uses a double ball bearing design to help ensure that it lasts as long as the internal circuitry.
Compatible
GS Series PSUs are build-friendly, with enough connectors to power just about any gaming rig you can imagine, and extra-long cables for full-tower case support and creative cable routing. It fits any ATX PC case, and works with ATX, Micro ATX, Mini ITX, and E-ATX, and all other ATX-compatible motherboards.
Contents and Specifications
Package contents
GS Series power supply
AC power cord
Cable ties
Mounting screws
Technical Specifications
A dedicated single +12V rail offers maximum compatibility with the latest components
Fanless mode at low loads for quiet operation, with an ultra-quiet 140mm double ball-bearing fan that delivers excellent airflow when needed
Color adjustable LED fan can switch between red, blue, white, and off settings by pressing the button on the back (600W model – blue or off mode only)
80 PLUS Bronze certified, delivering up to 85% energy efficiency under real-world load conditions
Active Power Factor Correction (PFC) with PF value of 0.99
Universal AC input from 100~240VAV
Over-voltage, under-voltage, over-current, and short circuit protection provide maximum safety for your critical system components
High-quality capacitors provide uncompromised performance and reliability
A three year warranty and lifetime access to Corsair's legendary technical support and customer service
Safety Approvals: cTUVus, CE, CB, FCC Class B, TÜV, CCC, C-tick
Compatibility
Conforms to ATX12V v2.31 standard, and is backward compatible with the ATX12V 2.2 and ATX12V 2.01 standards
Specifications:
WarrantyThree years
Dimension5.9"(W) x 3.4"(H) X 6.3"(L); 150mm(W) x 86mm(H) x 160mm(L)
ModularNo
Power800 Watts
80 PlusBronze
ATX Connector1
EPS Connector1
PCI-E Connector4
4 Pin Peripheral Connector8
SATA Connector8
Floppy Connector2
MTBF100,000 hours
