All stock codes associated to this product
V11H474053, PRJEB1940W, PRJ-EB1940W, MNE-EB-1940W

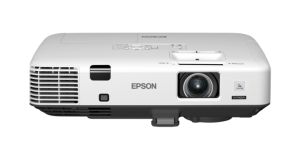

EPSON EB-1940W
BRIGHT 3LCD PROJECTOR
Affordable, compact and bright projection from a feature packed device
Overview
Epson EB-1940W
An ideal device for corporate or educational use, the EB-1940W is a great combination of quality output and features at an affordable price.
Convenient use
The Epson EB-1940W combines high-quality output, value-added features and affordability, into a compact and portable projector. It is perfect for corporate or educational use, as it can be easily installed in meeting rooms or used portably from a desktop.
High quality picture
Utilising Epson’s 3LCD technology to ensure clearly projected images, the EB-1940W produces vivid, natural colours and an equally high White and Colour Light Output, even in daylight.
Connectivity
The EB-1940W boasts a DisplayPort connector, allowing you to show high definition audio and video content with ease.
Enhanced productivity
Productivity can be greatly increased with a range of features available with the EB-1940W, such as Quick Corner.
Ultra bright output: 4,200 lumens White/Colour Light Output
Convenient: Can be installed or used portably
Clock / Schedule: Program projector actions in advance
PC free/Slide show: Read PDFs directly from a USB stick
Key Benefits
Specifications:
| Projection System |
3LCD Technology, RGB liquid crystal shutter |
| LCD Panel |
0,59inch with MLA (D7) |
| Color Light Output |
4.200lumen - 2.910lumen(economy) |
| White Light Output |
4.200lumen - 2.910lumen(economy) |
| Resolution |
WXGA, 1280 x 800, 16:10 |
| Contrast Ratio |
3.000: 1 |
| Lamp |
245W, 2.500hdurability, 4.000hdurability(economy mode) |
| Keystone Correction |
Auto vertical: 30, Manual horizontal 30 |
| Video Processing |
10Bits |
| Projection Ratio |
1,38 - 2,24:1 |
| Zoom |
Manual, Factor: 1, 1,6 |
| Projection Lens Zoom Ratio |
1 - 1,6 : 1 |
| Lens |
Optical |
| Projection Size |
29inches - 280inches |
| Projection Distance Wide |
0,8m - 8,4m (60inchscreen) |
| Projection Distance Tele |
1,4m - 13,9m (60inchscreen) |
| Projection Lens F Number |
1,51 - 1,99 |
| Focal Distance |
18m - 29m |
| Focus |
Manual |
| Offset |
10: 1 |
| USB Display Function |
3 in 1: Image / Mouse / Sound |
| Interfaces |
USB 2.0 Type B, USB 2.0 Type A, RS-232C, HDMI in, RGB in (2x), RGB out, Stereo mini jack audio out, Stereo mini jack audio in (2x), 10 Base-T, VGA in (2x), VGA out, Composite in |
| Smartphone Connection |
Yeswith Epson iOS App |
| Security |
Kensington lock, Security bar, Control panel lock, Password lock |
| Features |
AV Mute Slide, Automatic input selection, Automatic keystone correction, Direct Power on/off, Document Camera Compatible, Freeze image, Instant on/off, JPEG Viewer, Network administration, PC Free, Quick Corner, Slide show, Split-Screen-Function |
| Video Color Modes |
Dynamic, Theatre, Blackboard, Photo, Presentation, sRGB, Whiteboard, DICOM SIM |
| Video Compatibility |
NTSC, NTSC 4.43, PAL, M-PAL, N-PAL, PAL-60, SECAM, SECAM up to 1080i, SECAM up to 1080p, 480i, 480p, 526i, 526p, 720i, 720p, 1080i, 1080p |
| Energy Use |
337W, 250W(economy), 0,44W(standby) |
| Supply Voltage |
AC100V - 240V,50Hz - 60Hz |
| Dimensions |
377mm x 108mm x 271mm (Width x Depth x Height) |
| Weight |
3,7kg |
| Noise Level |
Normal:37dB (A) - Economy:29dB (A) |
| Temperature |
Operation5 C - 35 C, Storage-10 C - 60 C |
| Humidity |
Operation20% - 80%, Storage10% - 90% |
| Included Software |
EasyMP Monitor, EasyMP Multi PC Projection, EasyMP Network Projection, EasyMP Slide Converter |
| Options |
Air filter ELPAF38 |
| Sound Pressure |
Operation:37dB (A)-standby:29dB (A) |
| Loudspeaker |
10W |
| What's in the box |
Computer cable, Power cable, Software (CD), User manual, User manual (CD), Remote control incl. batteries |
