All stock codes associated to this product
VN10008W2N

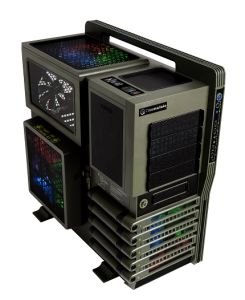

Level 10 GT Battle Edition
P/N: VN10008W2N
Features
- FrontSpeed 2: USB 3.0 SuperSpeed
- PitStop 5: EasySwap HDD bays
- TripleMax: Ready for extra-long graphics card up to 14.2”/36 cm
- QuadFan: Maximum ventilation and cooling
- Triple Colorshift: Adjustable fan ambience colors
- CableClear: Advanced cable management
- S.S.S.: Smart Lock Security System
- CoolFlux: Liquid cooling ready
Unique Design
Unique Easy Swap HDD bays
Ready for extra-long graphics card up to 14.2”/36 cm
Water cooling support for internal 120 & 240mm radiator
Ventilation
20cm Front Colorshift Fan
20cm Side Colorshift Fan
20cm Top Colorshift Fan
14cm Rear Fan
Optional 12cm bottom fan
Colorshift Fan
Fan Speed & Light Control Knob
Fan speed & color mode controller
 |
 |
 |
|
Red Color Mode
|
Blue Color Mode
|
Green Color Mode
|
 |
 |
 |
|
Off
|
Single Color Flash Mode
|
Mixed Color Flash Mode
|

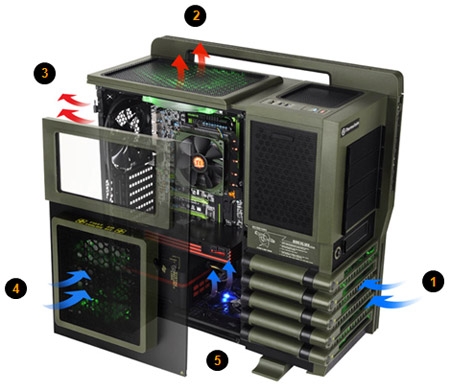

The Cooling System - Air Cooling
 |
HDD Air Cooling System
1. Front (intake) : 200 x 200 x 20 mm Colorshift fan (600~800rpm, 13~15dBA)
CPU Air Cooling System
2. Top (exhaust) : 200 x 200 x 30 mm Colorshift fan (600~800rpm, 13~15dBA)
3. Rear (exhaust) : 140 x 140 x 25 mm Turbo Fan (1000rpm,16dBA)
VGA Air Cooling System
4. Side (intake) : Plug&Play 200 x 200 x 30 mm Colorshift fan (600~800rpm, 13~15dBA)
5. Bottom (intake) : 120 x 120 x 25 mm fan (Optional)
|
Specifications:
| P/N |
VN10008W2N |
| Case Type |
Full Tower |
| Dimension (H x W x D) |
584 x 282 x 590 mm
(23 x 11.1 x 23.2 inch)
|
| Net Weight |
12.7Kg / 28lb |
| Side Panel |
Window |
| Color |
Exterior & Interior : Black & Green |
| Material |
SECC |
| Cooling System |
Front (intake) :
200 x 200 x 20 mm Colorshift fan x 1 (600~800rpm, 13~15dBA)
Rear (exhaust) :
140 x 140 x 25 mm Turbo fan (1000rpm,16dBA)
Top (exhaust) :
200 x 200 x 30 mm Colorshift fan (600~800rpm, 13~15dBA)
Side (intake) :
Plug&Play 200 x 200 x 30 mm Colorshift fan (600~800rpm, 13~15dBA)
Bottom (Intake) : 120 x 120 x 25 mm (optional)
|
| Drive Bays |
- Accessible: 4 x 5.25 , 1 x 3.5
- HDD Easy swap: 5 x 3.5 or 2.5 |
| Drive Bays |
8 |
| Motherboards |
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX) , 12 x 13 (Extend ATX) |
| I/O Ports |
USB 3.0 x 2, USB 2.0 x 4, eSATA x 1, HD Audio x 1 |
| PSU |
Standard PS2 PSU |
| LCS Upgradable |
Supports 1/23/81/4 water tube |
| Other |
CPU cooler height limitation: 190mm
VGA length limitation: 360mm
|
