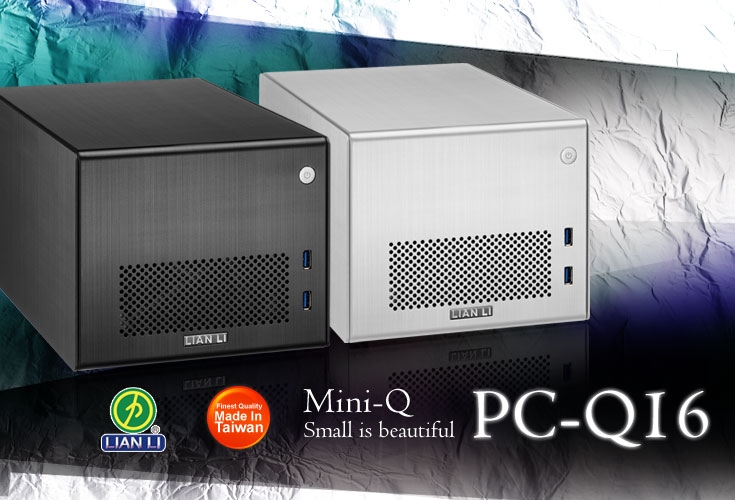

Lian Li PC-Q16 HTPC Case - 300W PSU, Black
  • 2xUSB3.0, 1x 3.5" HDD, 3x 2.5" HDD Bay, Aluminum, Mini-ITX

IMG 1 of 3
No Longer Available
Part Number:
199799
(?) Brand:
Lian Li Web Site
Manuf No:
PC-Q16B
PCQ16B
Shipping Weight:
7 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
PCQ16B, PC-Q16B, LLPCQ16B, LL-PC-Q16B
PC-Q16

Mini-Q Small is beautiful


Thermal

There is a 140mm intake fan input high air flow volume with lower RPM to push the cold air through the HDD cage.

Removable HDD Cage

HDD cage, using the thumb screws with rubber suspension, support three 2.5 inch HDDs.

3.5" inch hdd

The HDD rack supports 3.5" HDDs secured using thumb screws with rubber suspension.

Dual LEDs switch (Blue LED for Power) (Red LED for HDD)

USB3.0 Multi-Media I/O Ports x2

High Quality Aluminum Stand

60mm CPU Cooler Space about 60mm Height

Tool-less Side Panel installation

There are jointer for join the side panel to the chassis, for easy removment and attachment of the side panel.

Specifications:

Model
PC-Q16

Case Type
Mini Tower Chassis

Dimensions
(W) 199mm x (H) 160mm x (D) 290mm

Front bezel Material
Aluminum

Color
Black / Silver

Side Panel
Aluminum

Body Material
Aluminum

Net Weight
1.8KG

5.25" drive bay (External)
None

3.5" drive bay (External)
None

HDD bay
3.5-Inch HDD x1 / 2.5-Inch HDD x3

Expansion Slot
None

Motherboard
Mini-ITX

System Fan (Front)
140mm Fan x 1

System Fan (Top)
None

System Fan (Rear)
None

I/O Ports
USB 3.0 x 2

Maximum Compatibility

VGA Card length: --mm
PSU length: 105mm
CPU cooler height: 60mm

Package Dimensions
(W) 256mm x (H) 356mm x (D) 288mm

Gross Weight
KG

Power Supply
SFX PSU / OPTPUT : 300W / Efficiency : 80% (80-PLUS) Include

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Lian Li) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
