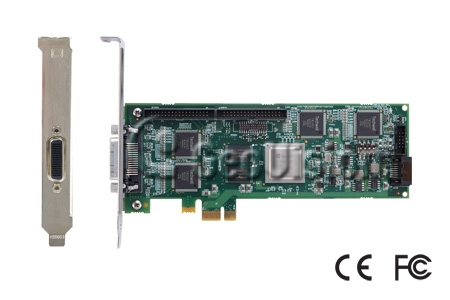

GeoVision GV-5016 Video Capture Card - PCI-Ex1

IMG 1 of 1
No Longer Available
Part Number:
200227
(?) Brand:
GeoVision Web Site
Manuf No:
55-G5016-160
55G5016160
Shipping Weight:
0.8 KG (Includes product packaging)
Estimate Shipping
Date Added:
13/7/2012
Details Files Finance Images & Video
All stock codes associated to this product
55G5016160, 55-G5016-160, GV5016, GV-5016


Specifications
  GV-5016 GV-5016 x 2
Interface PCI-E (x1) PCI-E (x1) x 2
Input Type LFH
Video Input 16 Cams 32 Cams
Audio Input 16 Channels 32 Channels
Recording Rate (D1) NTSC 480 fps 960 fps
PAL 400 fps 800 fps
Display Rate NTSC 480 fps 960 fps
PAL 400 fps 800 fps
Video Resolution NTSC H/W 704 x 480 704 x 480
S/W 352 x 240 352 x 240
PAL H/W 704 x 576 704 x 576
S/W 352 x 288 352 x 288
Video Compression Format S/W Geo MPEG4, Geo H264
H/W H264
Audio Compression Format AAC (16 kHz / 16 bit)
Bit Rate Range 5M ~ 10M
GV-Multi Quad Card Support No
GV-Loop Through Card Support No
GV-NET/IO Card Support Yes (Note 3)
Dimensions (W x H) 168 x 70 mm / 6.61 x 2.75 in
Installation Guide GV-5016

Note:
1. GV-5016 does not support the TV-Out function.
2. GV-5016 is currently not compatible with VIA series and ATI series chipset motherboards.
3. To work together with GV-5016, GV-NET/IO Card V3.1 must be set in the I/O Box Mode and connected to the PC through USB or DB9.
4. Specifications are subject to change without notice.

Minimum System Requirements For One Card
OS Supported 32-bit Windows XP / Windows Vista / Windows 7 / Windows Server 2008
64-bit Windows 7 / Windows Server 2008 R2
CPU Core 2 Quad, 2.4 GHz
RAM 2 x 1 GB Dual Channels
HDD 500 GB
Graphic Card AGP or PCI-Express, 800 x 600 (1280 x 1024 recommended),
32-bit color
DirectX 9.0c

Minimum System Requirements For Two Cards
OS Supported 32-bit Windows XP / Windows Vista / Windows 7 / Windows Server 2008
64-bit Windows 7 / Windows Server 2008 R2
CPU Core i5 650, 3.20 GHz
RAM 2 x 1 GB Dual Channels
HDD 1 TB
Graphic Card AGP or PCI-Express, 800 x 600 (1280 x 1024 recommended),
32-bit color
DirectX 9.0c
