Display
H-Scanning Frequency |
30 - 81 kHZ |
|
Maximum Pixel Frequency |
148.5 MHz |
|
V-Scanning Frequency |
48 - 75 HZ |
|
Panel
Diagonal Size |
32" |
|
Type |
60 Hz LED BLU |
|
Resolution |
1,920 x 1,080 (16:9) |
|
Pixel Pitch(mm) |
0.12125 (H) x 0.36375 (V)mm |
|
Active Display Area |
698.4 (H) x 392.85 (V)mm |
|
Brightness |
350 cd/ |
|
Contrast Ratio (Dynamic) |
100,000:1 |
|
Viewing Angle(Horizontal/Vertical) |
178 / 178 |
|
Response Time (G-to-G) |
8 ms |
|
Display Color |
16.7 M |
|
Color Gamut |
72% |
|
Contrast Ratio |
5,000:1 |
|
Connectivity
Input |
RGB |
Analog D-SUB, DVI-D (Dual Link) |
|
Video |
Component, CVBS, HDMI |
|
Audio |
Stereo Mini Jack |
Output |
Audio |
Stereo Mini Jack |
External Control |
RS232C (In/Out), RJ45 |
|
Specification

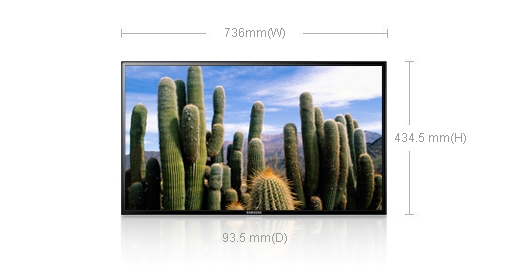

Dimension |
Set Dimension (WxHxD) |
736 x 434.5 x 93.5mm |
|
Package Dimension (WxHxD) |
826 x 530 x 162mm |
Weight (kg) |
Set Weight |
6.3kg |
|
Shipment Weight |
8.0kg |
VESA Mount |
200 x 200mm |
|
Stand Type |
Foot Stand (Optional) |
|
Media Player Option Type |
Embedded |
|
Operation
Operating Temperature |
0 - 40 |
|
Humidity |
10 - 80% |
|
Special Features
USB powered hub option |
Built in MagicInfo Lite, Built in Speaker(10W + 10W), Plug and Play (through USB), PIP/PBP, Narrow Bezel, Light Weight |
|
Power Consumption
Power Supply |
AC 100 - 240 V~ (+/- 10 %), 50 / 60 Hz |
|
Power Consumption |
Off Mode |
less than 1 W |
|
On Mode |
94 W (Max) / 50 W (Typ) |
|
Sleep Mode |
less than 1W |
Accessory
Included |
Quick Setup Guide, Warranty Card, Application CD, D-Sub Cable, Power Cord, Remote Controller, Batteries |
|
Optional |
Mount |
WMN4070SD (Mount) |
|
Specialty |
CML400D (Ceiling Mount) |
|
Stand |
STN-L32D (Stand) |
Features and specifications are subject to change without prior notification.
