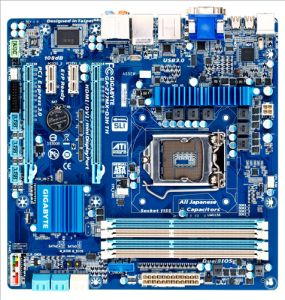

GA-Z77MX-D3H TH (rev. 1.0)

Overview

Dual Port Thunderbolt™ Motherboards


GIGABYTE motherboards, the very first to offer fully certified dual onboard Thunderbolt™ ports. Capable of connecting up to 12 devices plus 3 digital displays simultaneously, with breathtaking data transfer speeds that can transfer 1TB of data in only five minutes, GIGABYTE Thunderbolt™ motherboards offer the fastest connection interface ever on the desktop PC.

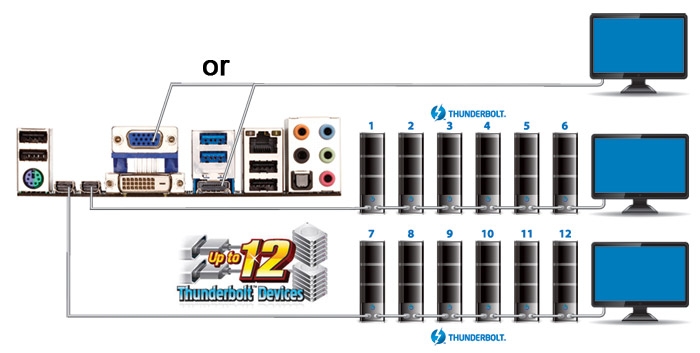

Daisy Chain Technology - Up to 12 devices + 2 Display monitors


Compatibility may vary according to system configuration and device specifications.

Requirement of 3 monitors output : Thunderbolt or display monitors plus 1 RGB or HDMI monitor.

GIGABYTE Thunderbolt™ motherboards allow users to daisy chain up to 12 devices simultaneously via an incredible bi-directional 10Gbps data pipeline that includes both PCIe and DisplayPort traffic. GIGABYTE Thunderbolt™ motherboards redefine desktop PC connectivity to make it far easier to connect multiple high speed storage devices and HD displays to your PC than ever before.


Performance may vary according to system configuration and device specifications.

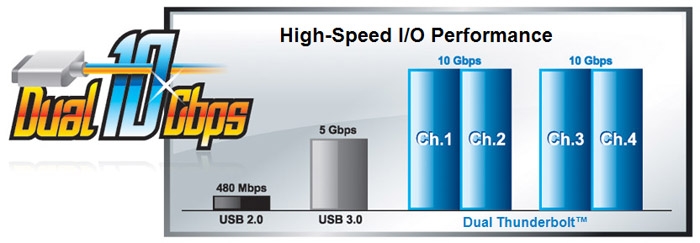

Dual Thunderbolt™ - Fast, Flexible and Simple Connectivity for your Motherboard

GIGABYTE Thunderbolt™ motherboards are the first to be certified by Intel featuring dual Thunderbolt™ ports directly on the motherboard back panel I/O, with each Thunderbolt™ port supporting a maximum data transfer speeds with simultaneous bi-directional data transfer at speeds of up to 10Gbps - this means you can transfer a full HD 1080p movie in under 30 seconds.

GIGABYTE's dual port Thunderbolt™ implementation ensures the absolute maximum potential connectivity, with support to connect up to 12 individual devices simultaneously, with each port offering full 10Gbps bandwidth.

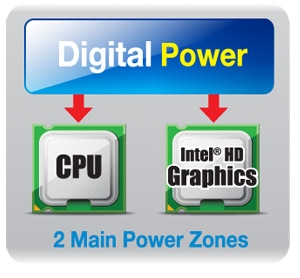

GIGABYTE 3D Power: Digital Voltage, Frequency and Phase Control


GIGABYTE 3D BIOS (patent pending)


The revolutionary GIGABYTE 3D BIOS application is based on GIGABYTE UEFI DualBIOS™ technology and is available to consumers in two exclusive modes of interaction, providing enthusiast and mainstream users with a choice of unique and powerful graphical interfaces.

UEFI DualBIOS™ Technology


At the heart of this exciting 3D BIOS technology is a pair of physical BIOS ROMs containing GIGABYTE's exclusive in-house designed UEFI BIOS technology. With a superior graphical interface capable of 32-bit color imaging and fluid user-friendly mouse navigation, UEFI DualBIOS™ makes BIOS configuration a new and exciting experience for novice and experienced users alike. UEFI BIOS also brings native support for large hard drives on 64-bit operating systems.

3D Mode


Designed to provide an extremely streamlined and user-friendly BIOS environment, GIGABYTE's exclusive 3D mode offers a fully interactive and illustrative GUI that allows users to easily and intuitively make key adjustments to the UEFI BIOS settings for optimum performance. 3D Mode allows novice or casual users to more clearly understand the areas of the motherboard that are being affected through the BIOS settings, gaining a clearer understanding of the BIOS functionality.

Advanced Mode


Advanced mode provides a more comprehensive UEFI BIOS environment that is designed specifically for overclockers and power users who want maximum control over their PC's hardware. GIGABTYE's signature M.I.T. tuning technology can be found alongside fully configurable parameters for GIGABTE's all new digital 3D Power engine. In short, advanced mode combines the signature GIGABYTE BIOS expertise you've come to expect, wrapped a slick, new and optimized graphical UEFI interface.

GIGABYTE Ultra Durable™ 4 Classic



Humidity Protection

Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.



Electrostatic Protection

GIGABYTE Ultra Durable 4 Classic motherboards feature High ESD Resistance ICs which help protect the motherboard against electrostatic discharge.



Power Failure Protection

Permanent damage from power surge or failure during BIOS update, can be avoided with GIGABYTE DaulBIOS, which automatically enables a secondary, back up BIOS.
GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.



High Temperature Protection

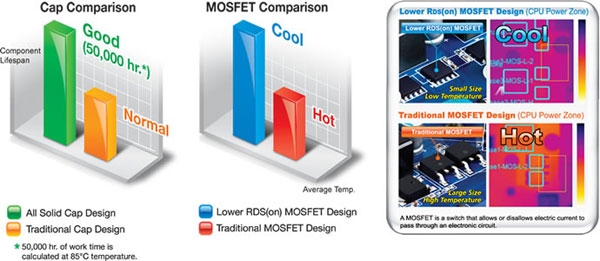

GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures, providing up to 50,000* hour component lifespan.


3rd Generation Intel® Core™ processors

New 3rd generation Intel® Core™ processors are based on the new 3rd generation Intel® Core™ processor architecture, manufactured using the latest 22nm process to create a visually optimized processor platform. Based on the mature LGA 1155 socket, 3rd generation Intel® Core™ processors feature up to four high-performance 64-bit processor cores and 8MB of L3 cache Smart Cache, and overall performance when you need it most.

Designed for PCI Express Gen.3 Support


GIGABYTE 7 series motherboards take advantage of the latest connectivity and expansion bus technologies available on the Intel platform. The 3rd generation Intel® Core™ processor platform debuts the new PCI Express gen. 3.0 expansion bus, allowing users to take advantage of the next generation, high-bandwidth discrete graphics card solutions.

PCIE Gen.3 is dependent on CPU and expansion card compatibility.

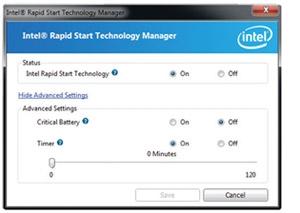

Intel® Rapid Start Technology


Intel® Rapid Start Technology™ gets your device up and running faster from even the deepest sleep. This means users will be able to experience almost zero power draw from their PC, but be able to resume Windows® 7 is a few seconds without having the PC go through a full system boot. With Intel® Rapid Start Technology the previous session resumes to the exact as it was, so that applications are still in the same state and no application data is lost.

Intel® Smart Connect Technology

Intel® Smart Connect Technology means that your email, favorite apps, and social networks are continually and automatically updated even when the system is asleep. No more waiting for the latest world news or friends' updates to be delivered—just press the 'on' button and you're up-to-date and ready to go.


Auto Sync with Cloud

No manual interaction required to synchronize with cloud services.

Data Ready

Email, social media, and cloud apps always updated and available at power on.

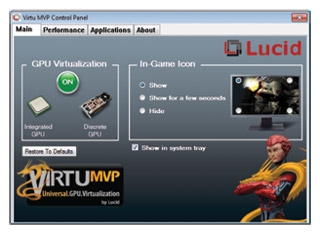

Lucid Universal MVP Support

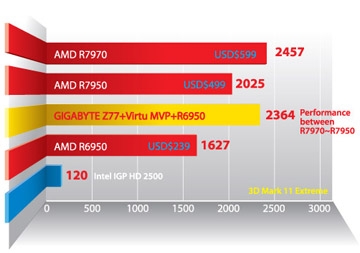

GIGABYTE 7 series motherboards support Lucid Virtu GPU virtualization technologies - optimized virtualization software that improves your PC's visuals, with faster response times, improved video processing and smoother media playback, all within a low power environment.
Lucid Universal MVP also features Hyperformance, which eliminates redundant rendering tasks and predicts potential synchronization issues in the graphics delivery pipeline, producing faster frame rates, sharper visuals and reduced tearing.

Free Upgrade for your Graphics


Test equip : 3rd generation Intel Core processor 3.2G/GA-Z77X-UD3H/DDR3 1333/Win7 64Bit. Prices are for reference only. Individual prices may vary by region.


Switchable Graphics

Allows users to dynamically switch between built-in graphics and high-end, 3D discrete graphics cards.


GIGABYTE EZ Smart Response


The GIGABYTE EZ Smart Response utility is a simple application that allows users to quickly and easily configure their system for Intel® Smart Response Technology. In the past, enabling Intel® Smart Response meant users needed to enter the BIOS in order to configure their system for RAID mode, which then required a complete reinstall of the operating system. Once that processes was complete, users then needed to install the Intel® Rapid Storage Utility as well as configure Intel's Smart Response Technology. GIGABYTE EZ Smart Response does all of this automatically, without users having to perform a complicated install process. This allows them to quickly and effortlessly enjoy a significant boost in system performance.

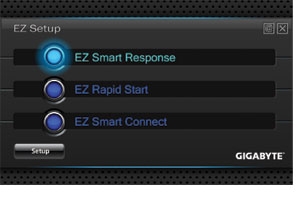

GIGABYTE EZ Setup


GIGABYTE EZ Setup is an exclusive application that allows GIGABYTE 7 series users to more easily configure and setup three important Intel Technologies on their new system; Intel® Smart Response, Intel® Rapid Start and Intel® Smart Connect. GIGABYTE EZ Setup makes it far easier to enjoy these technologies by greatly reducing the number of steps involved to install setup and configure your system.

GIGABYTE 333 Onboard Acceleration


GIGABYTE 7 series motherboards feature GIGABYTE 333 Onboard Acceleration , a range of the latest technologies that are designed help speed up data transfer, including SuperSpeed USB 3.0 technology, SATA Revision 3.0 (6Gbps) technology and an unprecedented 3x USB power boost on all USB ports for more power hungry USB devices.

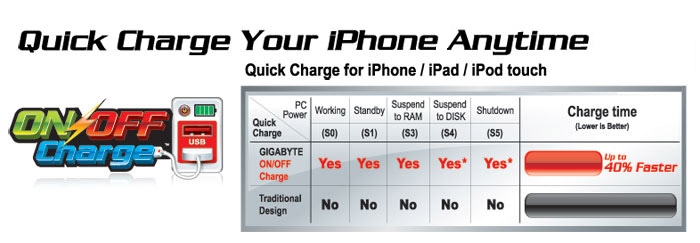

GIGABYTE On/Off Charge

GIGABYTE 7 series motherboards feature ON/OFF Charge, a unique GIGAYTE technology which allows you not only to charge your iPhone, iPad or iPod Touch, but also allows you to Quick Charge it. As an added bonus, it can even be charged when your PC is turned off, so even if you forget to plug it into your charger after you've synced up your music, it will be fully charged when you need it.


Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non ON/OFF Charge USB ports.

Charging results may vary by model.

Enhanced Built-in Visuals

With updated and improved processor graphics and multimedia, 3rd generation Intel® Core™ processors offer you the best possible media and entertainment experience. Native support for multiple digital displays, plus DirectX 11 capable graphics, Intel® Quick Sync Video 2.0 and Intel® HD Graphics 4000/2500 ensure you can enjoy new levels of 3D gaming and HD content manipulation.

Intel® Quick Sync 2.0

Faster media encoding performance

Saves your valuable time when create and edit video, synchronize it with other devices, and share it–at home and on the internet. Intel Quick Sync Video uses hardware on the processor, instead of software, to accelerate video encoding.

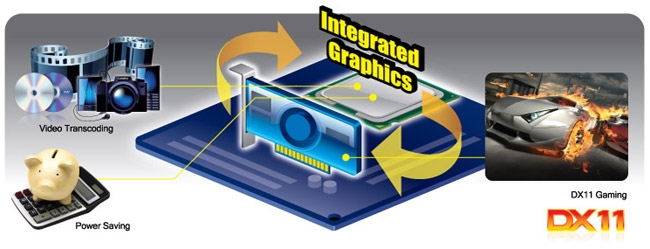

DirectX 11 Support

Better Visual Experience

Microsoft DirectX 11 provides eye-popping 3D visuals found for today's latest PC games and is designed to be more efficient, leverage the power of today's multi-core processors, and provide support for sophisticated shading and texturing techniques such as tessellation.


LAN Optimizer - Intelligent optimization network management tool

GIGABYTE LAN Optimizer is designed to allow the user to manage different types of network traffic so that data streams such as HD media, web browsing or online gaming can be prioritized, taking precedence over large data downloads that tend to strangle overall network bandwidth.


Multi-display support with CrossFireX and SLI™

Flexible graphics capabilities supported for either CrossFireX™ or SLI™ action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

Specifications:

CPU
  1. Support for Intel  Core i7 processors/Intel  Core i5 processors/ Intel  Core i3 processors/Intel  Pentium  processors/Intel  Celeron  processors in the LGA1155 package
  2. L3 cache varies with CPU
(Some Intel  Core processors require a graphic card, please refer "CPU support List" for more information.)
Chipset
  1. Intel  Z77 Express Chipset
Memory
  1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
    * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
  2. Dual channel memory architecture
  3. Support for DDR3 1600/1333/1066 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor:
  1. 1 x D-Sub port
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
    * The DVI-D port does not support D-Sub connection by adapter.
    * Simultaneous output for DVI-D and the MDP2 Thunderbolt port is not supported.
  3. 1 x HDMI port, supporting a maximum resolution of 1920x1200
Intel DSL3510L chip:
  1. 2 Thunderbolt ports (MDP1/MDP2) support for Mini-DisplayPort and Thunderbolt monitor(s), and supporting a maximum resolution of 2560x1600.
    * When a monitor connected to the DVI-D port, the MDP2 Thunderbolt port can support Thunderbolt storage device(s) only.
    * Due to PC architecture I/O resources limitation, the amount of the Thunderbolt devices can be used is dependent on the quantity of PCI Express and PCI devices be installed. (Refer to Chapter 1-7, "Back Panel Connectors", and Chapter 2, "Peripherals\Intel(R) Thunderbolt" for more information.)
Audio
  1. VIA VT2021 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF In/Out
LAN
  1. 1 x Atheros GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    (The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
    * Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility.
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
  3. 2 x PCI Express x1 slots
    (All PCI Express x1 slots conform to PCI Express 2.0 standard.)
Multi-Graphics Technology
  1. Support for AMD CrossFireX/NVIDIA SLI technology
Storage Interface Chipset:
  1. 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices
  2. 4 x SATA 3Gb/s connectors (SATA2 2~5) supporting up to 4 SATA 3Gb/s devices
  3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
USB Chipset:
  1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    * In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
  2. Up to 10 USB 2.0/1.1 ports (4 ports on the back panel, 6 ports available through the internal USB headers)
Thunderbolt Intel DSL3510L chip:
  1. 2 Thunderbolt ports on the back panel
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 2 x SATA 6Gb/s connectors
  4. 4 x SATA 3Gb/s connectors
  5. 1 x CPU fan header
  6. 2 x system fan headers
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x S/PDIF Out header
  10. 1 x S/PDIF In header
  11. 1 x USB 3.0/2.0 header
  12. 3 x USB 2.0/1.1 headers
  13. 1 x Clear CMOS jumper
  14. 1 x Trusted Platform Module (TPM) header
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 2 x Thunderbolt ports
  3. 1 x D-Sub port
  4. 1 x DVI-D port
  5. 1 x HDMI port
  6. 2 x USB 3.0/2.0 ports
  7. 4 x USB 2.0/1.1 ports
  8. 1 x RJ-45 port
  9. 1 x optical S/PDIF Out connector
  10. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller
  1. iTE I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
  4. CPU overheating warning
  5. CPU/System fan fail warning
  6. CPU/System fan speed control
    * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
BIOS
  1. 2 x 64 Mbit flash
  2. Use of licensed AMI EFI BIOS
  3. Support for DualBIOS
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Features
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress Install
  4. Support for Xpress Recovery2
  5. Support for EasyTune
    * Available functions in EasyTune may differ by motherboard model.
  6. Support for Auto Green
  7. Support for ON/OFF Charge
  8. Support for Q-Share
  9. Support for 3D Power
  10. Support for EZ Setup
Bundle Software
  1. Norton Internet Security (OEM version)
  2. Intel  Rapid Start Technology
  3. Intel  Smart Connect Technology
  4. Intel  Smart Response Technology
  5. LucidLogix Virtu MVP
    * Make sure the monitor cable has been connected to the integrated graphics port on the back panel.
Operating System
  1. Support for Microsoft  Windows 7/XP
Form Factor
  1. Micro ATX Form Factor; 24.4cm x 24.4cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
