56-RG128-000 | GeoVision GV-RSG-128CAM Recording Server - USB Dongle, Supports



The GV-Recording Server is a video streaming server designed for large-scale video surveillance deployments. It can receive and record up to 128 channels from various IP video devices. Through an intuitive Web interface, each IP camera can be configured to record video continuously, upon motion detection, upon I/O trigger or according to a schedule.

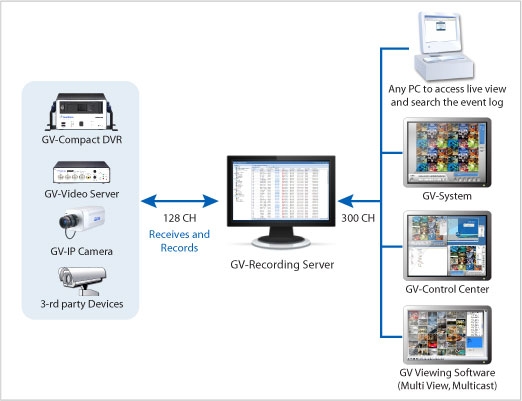

In addition, it can simultaneously distribute up to 300 channels to its clients which include GV-System (DVR/NVR system), GV-GIS (geographic information system), GV-Control Center (central monitoring system) and Multi View (viewing software). Using the GV-Recording Server, the desired frame rates can be reached while the CPU loading and the bandwidth usage of IP video devices are significantly reduced.





In some areas or countries, you may like to install 3G wireless Internet module (e.g. GPRS/UMTS) on the GV-Video Server or GV-Compact DVR but have the problem to obtain a public IP address from ISP. The Passive connection method of GV-Recording Server can solve the public IP issue by accepting the connection request from the GV-Video Server or GV-Compact DVR, and then distribute the video streaming to clients.



GV-USB Dongle

It is required to insert the GV-USB Dongle to the server to enable the GV-Recording Server software. The GV-USB Dongle supports connection with up to 128 IP channels and comes in internal dongles. You can select a dongle to enable GV-IP video devices only, or a dongle to include both thirdparty IP devices and GVIP devices.

GV-IP video devices only: 32, 36, 40, 44, 48, 52, 56, 60, 64, 68, 72, 76, 80, 84, 88, 92, 96, 100, 104, 108, 112, 116, 120, 124, 128 IP channels. Third-party IP devices (Includes GV-IP video devices): 32, 36, 40, 44, 48, 52, 56, 60, 64, 68, 72, 76, 80, 84, 88, 92, 96, 100, 104, 108, 112, 116, 120, 124, 128 IP channels.





Simultaneous receiving and recording up to 128 IP channels
Distributing up to 300 IP channels of video to clients
Video gateway between IP devices and receiving clients (GV-System, GV-Control Center and Multi View)
Support for third-party IP video devices (Sony, Axis, VIVOTEK, Panasonic, HikVision, Arecont Vision)
Support for ONVIF, PSIA and RTSP protocols
Different recording policies to set each channel to record continuously, upon motion detection, upon I/O trigger or by schedule (recording upon motion detection and I/O trigger are only for GV-IP devices)
Video playback using Remote ViewLog
Web interface to remotely configure and monitor GV-Recording Server using Internet Explorer, Firefox, Google Chrome and Safari
Passive and active connection methods with IP video devices (Passive connection only supported by GV-IP devices)
Solution for Mobile DVR (GV-Video Server, GV-Compact DVR) to obtain a public IP address
Bandwidth monitoring
Two-way audio communication (only for GV-IP devices through active connection)
Support for 16 languages





Minimum System Requirements

Servers meeting the minimum system requirements have the capacity to receive up to 128 channels and transmit up to 300 channels with the image settings of 1280 x 1024 resolution, 30 fps and H264 / MPEG4 codec for each channel.



OS	64-bit Windows 7 / Server 2008
CPU	Core i5 750, 2.67 GHz
Memory	4 GB Dual Channels (without recording) 6 GB Dual Channels (with recording)
Hard Disk	1 GB (for installation)
Browser	Internet Explorer 8.0.7600.16385 Internet Explorer 9.00.7930.16406 Firefox 3.6.13 Google Chrome 9.0.597.94 Safari 5.33.19.4
LAN	Gigabit Ethernet X 1
Hardware	Internal GV-USB Dongle
Note: In order to receive 128 channels and transmit up to 300 channels with the image settings of 1280 x 1024 resolution, 30 fps and JPEG codec for each channel, Gigabit Ethernet x 6 is required.



Feature Device Number of IP Video Device Connections 128 channels Number of Remote Client Connections 300 channels Active Connections Yes Passive Connections Yes (only for GV IP devices) 3rd Party IP Cameras Support Yes Live Viewing Single live view, multi-channel live view Recording Yes (up to 128 channels) Protocol HTTP, HTTPS, TCP, UDP, SMTP, UPnP, DynDNS, RTSP, PSIA, ONVIF E-Mail Notification Yes (for Active connection lost, passive connection lost, USB protection key removed, recycling of recorded video, start keep days operation, motion detection, disk full, disk error, I/O trigger, disk removed, recording failure) SMS Notification No 2-Way Audio Yes (only for GV-IP devices through active connection) GPS support Yes (only for GV-IP cameras) Number of Accounts Up to 1000 accounts Mobile Phone Support No Bandwidth Control No IE Live View Yes (up to 36 channels) IE Event Query Yes IE I/O Control No Language Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese
