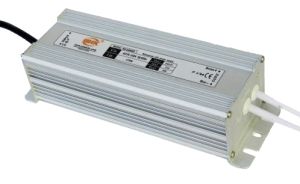

LEDware LED Driver Power Supply Constant Voltage 240V to 12V 60W 5.0A PFC EMC SAA IP67 Ext Use
LED-DRV-EXT-60W
An LED driver is a self-contained power supply that has outputs matched to the electrical characteristics of your LED or array of LEDs. There are currently no industry standards, so understanding the electrical characteristics of your LED or array is critical in selecting or designing a driver circuit. Drivers should be current-regulated (deliver a consistent current over a range of load voltages). Drivers may have more than one channel for separate control of different LEDs or arrays.
Application
Suitable for indoor & outdoor applications
Features:
- Aluminum mental housing
- easy for heat dissipation
- Low temperature rising
- high efficiency, energy saving and environmental protection
- Built-in protective circuit to ensure safety of power supply & lamps
Specifications:
INPUT
Voltage Range: 90-264VAC
Frequency Range: 47-63HZ
Input Power: =75W
Power Factor: PF=0.95(With PFC)
Efficiency:=83%
Inrush current: Cold Start:20A/115VAC, 40A/230VAC
Leakage current: =0.75mA/240VAC
OUTPUT
DC Voltage:12+/-0.5V
Rated Current: 5A
Rated Power:60W
Ripple & Noise: =300mVp-p
Hold Up Time=2s
PROTECTION
Over Loading:120~150%
Short Circuit: Protection type: Hiccup mode, recovers automatically after fault condition is removed
High Temp.:850C±50C(Shut down, re-power on to recover)
ENVIRONMENT
Working Temp.:-250C~+400C
Storage Temp.-400C~+600C,10~95%RH
VOLTAGE RESISTANCE
Input-Output: AC 3.75KV/5mA 5s
Input-Housing: AC 1.5KV/5mA 5s
CABLES
Input:VDE H03VV-F 3G0.75mm2 Black*300mm
Output: VDE H03VV-F 2*0.75mm2 White*300mm
Cable sets:2 Set
OTHERS
Housing Material: Aluminum Housing
IP Rating:IP67
Dimension:L179*W66*H52mm
Packing:325×225×185mm/10PCS
Weight:11kg/10pcs
Standard & Certification
Standard:IEC 61347, EN61000
Certification:CE, EMC
