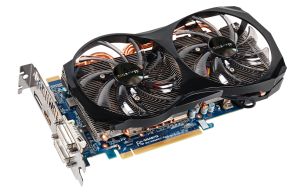

GV-N660OC-2GD | Gigabyte GeForce GTX660 - 2GB GDDR5 - (1098MHz, 6008MHz)

GIGABYTE Ultra Durable VGA Series









Powered by NVIDIA GeForece GTX 660 GPU
Integrated with the first 2048MB GDDR5 memory and 192-bit memory interface
Features Dual-link DVI-I / DVI-D / HDMI / DisplayPort
Core Clock: Base / Boost clock:1033 / 1098 MHz
Support PCI Express 3.0 x16 bus interface
Support NVIDIA 3D Vision™ Surround and SLI technologies
Support NVIDIA® CUDA™ Technology
Support NVIDIA® PhysX™ Technology
Support NVIDIA® FXAA / TXAA Technology
Support NVIDIA® Adaptive Vertical Sync Technology
System power supply requirement: 450W







Using high quality components on graphics cards is the key factor for having a long lasting, stable and reliable product. GIGABYTE is again setting a new standard by using Ferrite Core Chokes, Low RDS (on) MOSFET and Lower ESR Solid Capacitors, providing the stability and reliability from their high-end graphics solution. In addition, GIGABYTE Ultra Durable 2 Edition graphics cards now feature a sophisticated layout topology. This state-of-the-art power design from GIGABYTE delivers the ideal integration of thermal, electric characteristics, digital signals, power circuitry and optimum placement of components for enhanced graphics performance.





Ultra Cooling - Low RDS(on) MOSFET Design





Gold plated, durable large contact area connectors have been used for optimum signal transfer between connections



GIGABYTE introduces the latest exclusive WINDFORCE™ 2X 100mm Fansink equipped with "Triangle Cool" Technology to reach a better cooling performance. The latest patent pending technology combines fin with clip module in a special triangle shape. With the original anti-turbulence structure plus the new triangle cooling design, it enhances the efficiency of heat dissipation dramatically by minimizing the flow of turbulence between fans. Therefore, the WINDFORCE™ 2X 100mm Fansink equipped with "Triangle Cool" Technology design has 2 ultra quiet PWM fans and copper heat pipes to enlarge air channel on the graphics card vents and creates a more effective airflow system in chassis.





Brand-new instinctive user interface, easier to monitoring and adjusting all important settings. Users can set up MONITORING, GPU CLOCK, MEMORY CLOCK, FAN, GPU VOLTAGE, Memory VOLTAGE, OSD, ONLINE SUPPORT and update driver, BIOS directly.



NVIDIA® PhysX™ is the next big thing in gaming!Delivering physics in games is no easy task. It's an extremely compute-intensive environment based on a unique set of physics algorithms that require tremendous amounts of simultaneous mathematical and logical calculations. The best way to get real-time physics, such as explosions that cause dust and debris, characters with life-like motion or cloth that drapes and tears naturally is with an NVIDIA®PhysX™-ready GeForce® processor. PhysX software is widely adopted by over 150 games, is used by more than 10,000 registered users and is supported on Sony Playstation 3, Microsoft Xbox 360, Nintendo Wii and PC. PhysX™ technology will take gaming to a whole new level.




NVIDIA® CUDA™ technology unlocks the power of the hundreds of cores in your NVIDIA® GeForce® graphics processor (GPU) to accelerate some of the most performance hungry computing applications. The CUDA™ technology already adopted by thousands of programers to speed up those performance hungry computing applications.




Delivers up to 2X the performance of a single GPU configuration for unparalleled gaming experiences by allowing two graphics cards to run in parallel. The must-have feature for performance PCI Express graphics, SLI dramatically scales performance on 60 top PC games.



NVIDIA® 3D Vision™ brings a fully immersive stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses and advanced software 3D Vision transforms hundreds of PC games into full stereoscopic 3D. Users can even watch 3D movies and 3D digital photographs in crystal-clear quality.



Microsoft Windows 7 is the next generation operating system that will mark a dramatic improvement in the way the OS takes advantage of the graphics processing unit (GPU) to provide a more compelling user experience. By taking advangate of the GPU for both graphics and computing, Windows 7 will not only make todays's PCs more visual and more interactive but also ensure that they have the speed and responsiveness customers want



As a citizen of the global village, GIGABYTE exert ourselves to be a pioneer in environment care. Give the whole of Earth a promise that our products do not contain any of the restricted substances in concentrations and applications banned by the RoHS Directive, and are capable of being worked on at the higher temperatures required for lead free solder. One Earth and GIGABYTE Cares!





Chipset	GeForece GTX 660
PCB Form	ATX
Core Clock	Base clock: 1033 MHz Boost clock: 1098 MHz (standard Base clock: 980 MHz Boost clock: 1046 MHz)
Shader Clock	N/A
Memory Clock	6008 MHz
Process Technology	28 nm
Memory Size	2048MB
Memory Bus	192 bit
Card Bus	PCI-E 3.0
Memory Type	GDDR5
DirectX	11
OpenGL	4.2
I/O	Dual-link DVI-I*1 DVI-D*1 DisplayPort*1 HDMI*1
Digital max resolution	2560 x 1600
Analog max resolution	2048 x 1536
Multi-view	4
Tools	N/A
Card size	H= 42mm, L=256.3 mm, W=131 mm
Power requirement	450 W
