All stock codes associated to this product
VL300A2N1N, CASEVL300A2N1N, CASE-VL300A2N1N

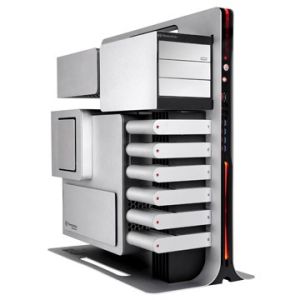

Level 10 Limited Edition
VL300A2N1N
Front fan x 1 (14 cm Red LED Fan)
Features:
- Design Collaboration by Thermaltake and BMW Group Designworks USA
- USB 3.0 Superspeed
- Asymmetrical Balance design
- Smart-lock Security System
- Removable Hard Drive Cases for 3.5" and 2.5" HDD/SSD
- Exposed Vertical Heatsink

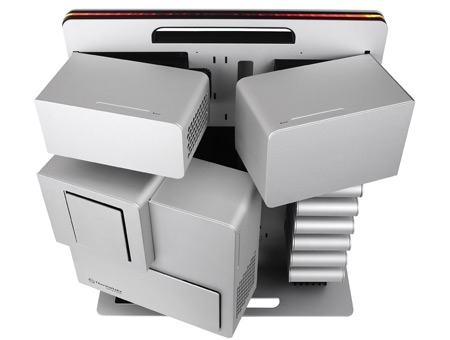

Open Compartment Architecture (O.C.A.)
The Level 10 Gaming Station enables the gamer in a unique way to experience the power of his high performance equipment and increases the usability through an innovative direct access concept. Designed as an Open Compartment Architecture (O.C.A.) with all individually encased system components exposed, all elements are visible and can easily be added or removed. These appear within the overall design in the form of an open modular structure that visually appeals to users, offering them additional functional benefits.
Smart-lock Security System (S.S.S.)
The Smart-lock Security System (S.S.S.) allows gamers to lock the tower enabling them to secure their valuable modules. Thus the design concept makes considerable allowances for the behavior of users who wish to use their equipment in many different places and are eager to get it there safely.
ODD/HDD key
PSU/MB/SIDE PANEL Key
System Security Lock
The Cooling System - Air Cooling
HDD Air Cooling System
(1) (2) Top (exhaust) : Dual 60 x 60 x 15 mm Silent fan (2500rpm, 19dBA)
System Air Cooling
(3) Front (intake) : 140 x 140 x 25 mm Red LED fan (1000rpm, 16dBA)
(4) Rear (exhaust) : 120 x 120 x 25 mm Red LED Fan (1000rpm,16dBA)
Specifications:
Model |
VL300A2N1N
|
Case Type |
Full Tower
|
Dimension (H x W x D) |
666 x 318 x 614 mm (26.2 x 12.5 x 24.2 inch) |
Net Weight |
21.37 kg / 47.11 lb
|
Color |
Black & Silver
|
Material |
Aluminum Extrusion
|
Cooling System |
Front (intake) : 140 x 140 x 25 mm Red LED fan x 1 (1000rpm, 16dBA) Rear (exhaust) : 120 x 120 x 25 mm Red LED fan x 1 (1000rpm, 16dBA) HDD (intake) : Dual 60 x 60 x 15 mm Silent fan (2500rpm, 19dBA) |
Drive Bays |
- Accessible 3 x 5.25 - HDD Easy swap 6 x 3.5 or 2.5
|
Expansion Slots |
8
|
Motherboards |
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX) |
I/O Ports |
USB 3.0 x 4, eSATA x 1, HD Audio x 1
|
PSU |
Standard PS2 PSU
|
LCS Upgradable |
Supports 1/23/81/4 water tube
|
Other |
CPU cooler height limitation: 150mm VGA length limitation: 310mm PSU length limitation: 210mm |
