All stock codes associated to this product
HDS721050DLE630, HIT0F13178

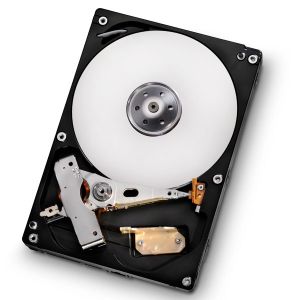

Deskstar 7K1000.D
250GB to 1TB
3.5-INCH HARD DISK DRIVE
- Capacity Choice – Range of popular capacities
- High Performance – 7200 RPM for fast data access
- Low Power – Best-in-class power management for cooler operation
The Deskstar™ 7K1000.D is HGST’s first one-disk, 1TB, 7200 RPM 3.5-inch hard drive for use in power-friendly consumer and commercial desktop computers. This fourth-generation 1TB hard drive from HGST uses Advanced Format, which increases the sector size on HDDs from 512 bytes to 4096 (4K) bytes, thereby increasing capacities and improving error correcting capabilities. Consult the HGST Advanced Format Technology Brief for more information on these drives. Leveraging eighth-generation power management technology, as well as power-saving HiVERT™ innovations pioneered on the popular 2.5-inch line of notebook hard drives from HGST, this new desktop drive provides up to 16% idle power savings over the previous model, delivering best-in-class power management and thermal emissions.
Specifications:
| Model(s) |
HDS721010DLE630
HDS721075DLE630
HDS721050DLE630
HDS721032DLE630
HDS721025DLE630
|
| Interface |
SATA 6Gb/s |
| Capacity (GB) |
1TB / 750 / 500 / 320 / 250 |
| Sector size (variable, Bytes/sector) |
512e |
| Max areal density (Gbits/sq. in.) |
569 |
| Performance |
| Data buffer (MB) |
32 |
| Rotational Speed (RPM) |
7200 |
| Media transfer rate (Mbits/sec, max) |
1822 |
| Interface transfer rate (MB/sec, max) |
600 |
| Reliability |
| Error Rate (non-recoverable, bits read) |
1 in 1014 |
| Load/Unload Cycles |
300,000 |
| Availability (hrs/day x days/wk) |
24x7 |
| Acoustics |
| Op (Bels, typical) |
2.5 |
| Power |
| Requirement |
+5 VDC (+/-5%)
+12 VDC (+/-10%) |
| Requirement: Start-up (W, peak, max) |
0.6 (+5V), 2.0 (+12V) |
| Performance Idle |
3.7 |
| Physical size |
| Z-height (mm) |
26.1 |
| Dimensions (width x depth, mm) |
101.6 x 147 |
| Weight (g, max) |
450 |
| Environmental (operating) |
| Ambient temperature |
0 to 60C |
| Relative Humidity |
8% to 90% |
| Shock (half-sine wave) |
70 |
| Vibration |
0.67 (XYZ) |
| Environmental (non-operating) |
| Ambient temperature |
-40 to 70C |
| Relative Humidity |
5% to 95% |
| Shock (half-sine wave) |
350 |
| Vibration |
1.04 (XYZ) |
