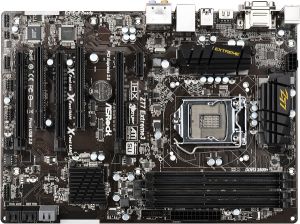

The easiest way to have your own Z77 mobo with SLI







ASRock DuraCap featuring all solid capacitor design, 100% Japan-made high-quality Conductive Polymer Capacitors which can last 2.5 times longer lifespan.











By adopting digital pulse-width modulation (PWM), the ASRock motherboard can provide CPU Vcore voltage more efficiently and smoothly. Compared to analog PWM, digital PWM can optimize the CPU power solution and provide a proper and stable Vcore for the processor.



This motherboard is designed with a 8 + 3 Power Phase design. It features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capability and enhanced performance with the lowest temperature for advanced gamers as well.





This motherboard unlocks maximum memory performance, coming with 4 DIMM slots for dual-channel memory, supporting up to DDR3 2800+ (OC) MHz!





The ASRock motherboards support the Next-Gen PCI-E 3.0! PCI Express 3.0 can maximize the bandwidth for the next-gen PCI Express 3.0 VGA cards, provide ultimate graphics performance.

Higher bit rate - 8.0GT/s
Higher bandwidth per lane - 1GB/s
Higher efficiency - 98.5% encoding efficiency
100% backward compatible with previous PCI-E 2.0 / 1.0 standard



PCI-E architecture	Raw bit rate	Bandwidth per lane per direction	Encoding Efficiency
PCI-E 2.0	5.0GT/s	500MB/s	80%
PCI-E 3.0	8.0GT/s	1GB/s	98.5%



Intel  HD Graphics, simplifies your designs by eliminating additional discrete graphics hardware, while integrating stunning visuals and performance for immersive gaming.









ASRock Interactive UEFI is a blend of system configuration tools, cool sound effects and stunning visuals. The unprecedented UEFI provides a more attractive interface and brings a lot more amusing.



XFast RAM will create a virtual disk from the system memory to boost the performance. For Photoshop, It can even perform 5X faster than before.



XFast LAN can lower latency in the game after setting online game priority higher.

Time latency in World of Warcraft: Cataclysm

ATTO Disk Benchmark 4K Read

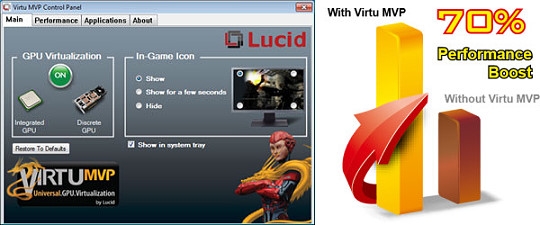

ASRock motherboard support Lucid Virtu Universal MVP technology that improves your PC’s visuals, with faster response times, improved video processing and smoother media playback, all with low power consumption. Brilliantly designed for gaming, Virtu Universal MVP™ switchable graphics software assigns tasks dynamically to the best graphics resource and features two exciting techniques – HyperFormance™ and Virtual Vsync™.



Game responsiveness is all about how fast your eye ? brain ? mouse click ? game response behaves. When interacting with your computer, the responsiveness is a key factor to your productivity and overall systems experience. When it comes to playing games, especially fast moving ones like First Person Shooters, responsiveness becomes critical for both mastering the game and enjoying and immersive experience.



HyperFormance intelligently removes redundant rendering tasks within the graphics pipeline, the CPU-GPU-Display system.





Boosts responsiveness and FPS of any game
Improves gaming frame rates 30-70%
Increases Vsync frame rates - 120 FPS+
Sharpens visual quality without tearing
Works seamlessly with hundreds of games



Lucid's Virtual Vsync technology takes visual quality and performance to the next level. A proprietary solution for Virtu Universal and Virtu MVP, Virtual Vsync enables games to run at any FPS, with no image tearing, stuttering, lags and latency artifacts.



Enhanced performance - when system has dGPU and iGPU
Unlimited frame rates - beyond traditional in-game Vsync
Flawless visual quality without tearing
Up to 250% better responsiveness vs. standard Vsync





Dynamically assigns tasks to the best graphics resource regardless of physical cable connections.



Users may prevent motherboard damages due to dampness by enabling “Dehumidifier Function”. When enabling Dehumidifier Function, the computer will power on automatically to dehumidify the system after entering S4/S5 state.





Users may prevent motherboard damages due to dampness by enabling “Dehumidifier Function”. When enabling Dehumidifier Function, the computer will power on automatically to dehumidify the system after entering S4/S5 state.









Fast, Easy and Free – ASRock OMG technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users. Normally, ISPs (Internet Service Provider) will charge for internet curfew service. The service controls “all” the PCs connected at home through network remotely but all the PCs in that network will be restricted to access the internet at pre-setup times. However, ASRock OMG is a free tool for controlling internet access of each single PC. Parents can easily control internet access through BIOS setup to protect their kids from using Internet at inappropriate time, and meanwhile, enjoy their own internet space.







Internet Flash searches for available UEFI firmware updates from ASRock servers. System can auto-detect the latest UEFI from our servers and flash them within UEFI setup without entering Windows® OS.



General
CPU	- Supports 3rd and 2nd Generation Intel  Core i7 / i5 / i3 in LGA1155 Package - Digi Power Design - 8 + 3 Power Phase Design - Supports Intel  Turbo Boost 2.0 Technology - Supports Intel  K-Series unlocked CPU - Supports Hyper-Threading Technology
Chipset	- Intel  Z77 - Supports Intel  Rapid Start Technology and Smart Connect Technology *Intel  Rapid Start Technology and Smart Connect Technology are only supported under Windows  7 OS or later versions.
Memory	- Dual Channel DDR3 memory technology - 4 x DDR3 DIMM slots - Supports DDR3 2800+(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 32GB* - Supports Intel  Extreme Memory Profile (XMP) 1.3 / 1.2 *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows  32-bit OS. For Windows  64-bit OS with 64-bit CPU, there is no such limitation.
BIOS	- 64Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 1.1 Compliance Wake Up Events - Supports jumperfree - SMBIOS 2.3.1 Support - CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment
Audio, Video and Networking
Graphics	- Supports Intel  HD Graphics Built-in Visuals : Intel  Quick Sync Video 2.0, Intel  InTru 3D, Intel  Clear Video HD Technology, Intel  Insider, Intel  HD Graphics 2500/4000 with Intel  Ivy Bridge CPU - Supports Intel  HD Graphics Built-in Visuals : Intel  Quick Sync Video, Intel  InTru 3D, Intel  Clear Video HD Technology, Intel  HD Graphics 2000/3000, Intel  Advanced Vector Extensions (AVX) with Intel  Sandy Bridge CPU - Pixel Shader 5.0, DirectX 11 with Intel  Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel  Sandy Bridge CPU - Max. shared memory 1760MB with Intel  Ivy Bridge CPU. Max. shared memory 1759MB with Intel  Sandy Bridge CPU - Multi VGA Output options: D-Sub, DVI-D and HDMI - Supports HDMI 1.4a Technology with max. resolution up to 1920x1200 @ 60Hz - Supports DVI with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required) - Supports HDCP function with DVI and HDMI ports - Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports *Intel  HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. **Due to chipset limitation, the Blu-ray playback of Intel  HD Graphics is only supported under Windows  Vista and Windows  7. ***Intel  InTru 3D is only supported under Windows  7 and Windows  7 x64.
Audio	- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) - Premium Blu-ray audio support - Supports THX TruStudio
LAN	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111E - Supports Wake-On-LAN - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Expansion / Connectivity
Slots	- 2 x PCI Express 3.0 x16 slots (PCIE2/PCIE3: single at x16 (PCIE2) / x8 (PCIE3) or dual at x8/x8 mode) - 1 x PCI Express 2.0 x16 slot (PCIE4 @ x4 mode) - 1 x PCI Express 2.0 x1 slot - 2 x PCI slots - Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX - Supports NVIDIA  Quad SLI and SLI *PCIe Gen3 is supported on 3rd Generation of Intel  Core i5 and Core i7 CPUs.
SATA3	- 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel  Rapid Storage and Intel  Smart Response Technology), NCQ, AHCI and "Hot Plug" functions
USB 3.0	- 2 x Rear USB 3.0 ports, support USB 1.0/2.0/3.0 up to 5Gb/s - 1 x Front USB 3.0 header (supports 2 USB 3.0 ports), supports USB 1.0/2.0/3.0 up to 5Gb/s
Connector	- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel  Rapid Storage and Intel  Smart Response Technology), NCQ, AHCI and Hot Plug functions - 2 x SATA3 6.0 Gb/s connectors - 1 x IR header - 1 x CIR header - 1 x COM port header - 1 x HDMI_SPDIF header - 1 x Power LED header - 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin) - 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin) - 1 x Power Fan connector (3-pin) - 24 pin ATX power connector - 8 pin 12V power connector - Front panel audio connector - 2 x USB 2.0 headers (support 4 USB 2.0 ports) - 1 x USB 3.0 header (supports 2 USB 3.0 ports)
Rear Panel I/O	I/O Panel - 1 x PS/2 Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 4 x Ready-to-Use USB 2.0 Ports - 2 x Ready-to-Use USB 3.0 Ports - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature	- ASRock Extreme Tuning Utility (AXTU) - ASRock Instant Boot - ASRock Instant Flash - ASRock APP Charger - ASRock XFast USB - ASRock XFast LAN - ASRock XFast RAM - ASRock Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock Internet Flash - ASRock UEFI System Browser - ASRock Dehumidifier Function - ASRock Interactive UEFI - Lucid Virtu Universal MVP - ASRock On/Off Play Technology - Hybrid Booster: - CPU Frequency Stepless Control - ASRock U-COP - Boot Failure Guard (B.F.G.) - Combo Cooler Option (C.C.O.) - Good Night LED *Lucid Virtu Universal MVP can be supported only with processors which are GPU integrated. **LucidLogix Virtu MVP only supports Windows  7 OS or later versions.
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - OEM
Accessories	- 1 x ASRock SLI_Bridge_2S Card - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables
Hardware Monitor	- CPU Temperature Sensing - Chassis Temperature Sensing - CPU/Chassis/Power Fan Tachometer - CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - CPU/Chassis Fan Multi-Speed Control - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor	- ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm - ASRock DuraCap (2.5 x longer life time) (100% Japan-made high-quality Conductive Polymer Capacitors)
OS	- Microsoft  Windows  7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit compliant
Certifications	- FCC, CE, WHQL - ErP/EuP Ready (ErP/EuP ready power supply is required)
