GAF2A75D3H, GA-F2A75-D3H

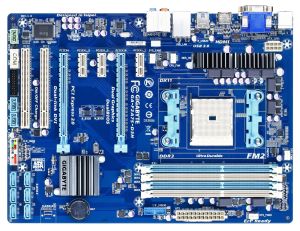

GA-F2A75-D3H (rev. 1.0)
AMD A75 chipset
Overview
GIGABYTE Ultra Durable 4 Classic
Humidity Protection
Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.
Electrostatic Protection
GIGABYTE Ultra Durable 4 Classic motherboards feature High ESD Resistance ICs which help protect the motherboard against electrostatic discharge.
Power Failure Protection
Permanent damage from power surge or failure during BIOS update, can be avoided with GIGABYTE DaulBIOS, which automatically enables a secondary, back up BIOS.
High Temperature Protection

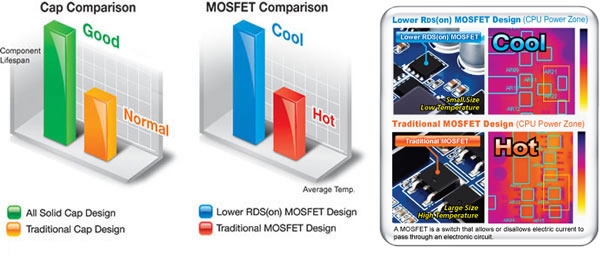

GIGABYTE uses Solid Caps (Capacitors) on CPU power zone and Low RDS(on) MOSFETs which are rated to work at higher temperatures.
Introduction
GIGABYTE FM2 motherboards are the latest range of next-generation desktop motherboards based on the AMD A75 chipset, supporting a new generation socket FM2 of 32nm AMD A-series APUs with DirectX11 graphics integrated. Not only delivering AMD’s industry-leading performance and advanced graphics capabilities, GIGABYTE motherboards are equipped with a comprehensive range of unique features that offer mainstream PC users the most compelling platform on the market today.
GIGABYTE 3D BIOS (patent pending)
The revolutionary GIGABYTE 3D BIOS application is based on GIGABYTE UEFI DualBIOS™ technology and is available to consumers in two exclusive modes of interaction, providing enthusiast and mainstream users with a choice of unique and powerful graphical interfaces.
UEFI DualBIOS Technology
At the heart of this exciting 3D BIOS technology is a pair of physical BIOS ROMs containing GIGABYTE's exclusive in-house designed UEFI BIOS technology. With a superior graphical interface capable of 32-bit color imaging and fluid user-friendly mouse navigation, UEFI DualBIOS makes BIOS configuration a new and exciting experience for novice and experienced users alike. UEFI BIOS also brings native support for large hard drives on 64-bit operating systems.
3D Mode
Designed to provide an extremely streamlined and user-friendly BIOS environment, GIGABYTE's exclusive 3D mode offers a fully interactive and illustrative GUI that allows users to easily and intuitively make key adjustments to the UEFI BIOS settings for optimum performance. 3D Mode allows novice or casual users to more clearly understand the areas of the motherboard that are being affected through the BIOS settings, gaining a clearer understanding of the BIOS functionality.
Advanced Mode
Advanced mode provides a more comprehensive UEFI BIOS environment that is designed specifically for overclockers and power users who want maximum control over their PC's hardware. It also combines the signature GIGABYTE BIOS expertise you've come to expect, wrapped a slick, new and optimized graphical UEFI interface.
AMD Eyefinity Technology
Supporting multiple independent display outputs simultaneously, AMD Eyefinity technology delivers innovative graphics display capabilities enabling massive desktop workspaces and ultra-immersive visual environments for the ultimate panoramic computing experience.
AMD Dual Graphics: Unrivalled Upgradability
The AMD A85X/A75/A55 series platform showcases AMD Dual Graphics technology, allowing users to further boost 3D graphics performance by adding an additional discrete AMD Radeon™ HD 6000 series graphics card* to the system. This unique Dual Graphics technology means users can enjoy higher frame rates on the latest gaming titles, utilizing the processing power of both discrete and integrated graphics processors.
Please use AMD Dual Graphics certified DX11 VGA card (i.e., Radeon HD 6670/6570/6450 etc.) and AMD Dual Graphics supported APU, detail information please refer to AMD
Official Website:
Multi-display support with AMD CrossFire
Flexible graphics capabilities - Up to 2 VGA cards are supported for 2 way AMD CrossFireX™ (running at x16, x4 bandwidth), delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
GIGABYTE 333 Onboard Acceleration
GIGABYTE motherboards feature GIGABYTE 333 Onboard Acceleration , a range of the latest technologies that are designed help speed up data transfer, including SuperSpeed USB 3.0 technology, SATA Revision 3.0 (6Gbps) technology and an unprecedented 3x USB power boost on USB ports for more power hungry USB devices.
Triple-Monitor support
This motherboard provides Dual-link DVI, HDMI and D-sub ports, allowing output your desktop to three displays at the same time!
Dual-link DVI port
Designed to leverage the awesome potential of the latest AMD Fusion A-series APUs, GIGABYTE motherboards deliver an enhanced visual experience that includes advanced DX11 gaming, incredibly smooth HD multimedia playback and support for high resolution displays of up to 2560 x 1600 pixels by Dual-link DVI port.
HDMI Interface
HDMI is latest High-Definition Multimedia Interface, which is able to provide up to 5Gb/s video transmitting bandwidth and also 8-channel high quality audio. Via transmitting uncompressed digital data, HDMI is able to reduce signal interference as transferring between digital and analog signal, seen and heard, direct from the source. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), which allowing playback of Blu-ray/ HD DVD and other protected contents.
On/Off Charge Technology
GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow,\ so that charging from your PC can be as fast as with a charger...more
Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
Whether to support 3X USB power design, it may vary by models.
ErP Lot 6 support
The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.
Specifications:
| APU |
FM2 Socket:
- AMD A series processors
- AMD Athlon series processors
(Please refer "CPU Support List" for more information.)
|
| Chipset |
- AMD A75
|
| Memory |
- 4 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory* The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
- Dual channel memory architecture
- Support for DDR3 1866/1600/1333/1066 MHz memory modules
- Support for AMD Memory Profile (AMP) memory modules
Memory support is dependent on memory module compatibility and system OS.
(Please refer "Memory Support List" for more information.)
|
| Onboard Graphics |
APU:
* To use the onboard graphics ports, you must install an AMD APU with integrated graphics.
- 1 x D-Sub port
- 1 x DVI-D port, supporting a maximum resolution of 2560x1600* Support for 2560x1600 resolution requires both a monitor and cable that support Dual Link DVI.
* The DVI-D port does not support D-Sub connection by adapter.
- 1 x HDMI port, supporting a maximum resolution of 1920x1200
|
| Audio |
- Realtek ALC892 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
|
| LAN |
- Realtek GbE LAN chip (10/100/1000 Mbit)
|
| Expansion Slots |
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
- 3 x PCI Express x1 slots(All PCI Express slots conform to PCI Express 2.0 standard.)
- 2 x PCI slots
|
| Multi-Graphics Technology |
- Support for AMD CrossFire technology
- Support for AMD Dual Graphics technology* Only A series APUs support AMD Dual Graphics.
|
| Storage Interface |
Chipset:
- 6 x SATA 6Gb/s connectors supporting up to 6 SATA 6Gb/s devices
- Support for RAID 0, RAID 1, RAID 10, and JBOD
|
| USB |
Chipset:
- Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
|
| Internal I/O Connectors |
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 1 x APU fan header
- 3 x system fan headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB 3.0/2.0 header
- 2 x USB 2.0/1.1 headers
- 1 x serial port header
- 1 x Clear CMOS jumper
- 1 x Trusted Platform Module (TPM) header
|
| Back Panel Connectors |
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x HDMI port
- 2 x USB 3.0/2.0 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
|
| I/O Controller |
- iTE I/O Controller Chip
|
| H/W Monitoring |
- System voltage detection
- APU/System temperature detection
- APU/System fan speed detection
- APU overheating warning
- APU/System fan fail warning
- APU/System fan speed control* Whether the APU/system fan speed control function is supported will depend on the APU/system cooler you install.
|
| BIOS |
- 2 x 64 Mbit flash
- Use of licensed AMI EFI BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
|
| Unique Features |
- Support for @BIOS
- Support for Q-Flash
- Support for Xpress Install
- Support for EasyTune* Available functions in EasyTune may differ by motherboard model.
- Support for Smart Recovery 2
- Support for Auto Green
- Support for ON/OFF Charge
- Support for 3TB+ Unlock
- Support for Q-Share
|
| Bundle Software |
- Norton Internet Security (OEM version)
|
| Operating System |
- Support for Microsoft Windows 8/7/Vista/XP
|
| Form Factor |
- ATX Form Factor; 30.5cm x 22.5cm
|
| Remark |
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
|
