Innovative technologies deliver easy expandability, complete storage and high power efficiency

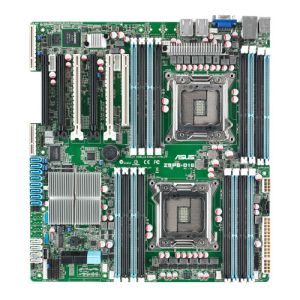

The ASUS Z9PE-D16/2L serverboard provides an ideal foundation for reliable performance and future upgrades. Through innovative ASUS design, it offers high power efficiency of up to 90%, dual Intel LAN ports with great virtualization support, and high I/O expandability. Users also obtain high manageability via the latest ASMB6, making this an ideal general purpose host server, AP server, mail server, and storage server.
Overview
Innovative technologies deliver easy expandability, complete storage and high power efficiency
Complete storage support
The Z9PE-D16/2L boasts multiple SAS/SATA implementation, from Intel AHCI to ASUS PIKE, supporting the latest SATA/SAS 6Gb/s technology. While ASUS optional PIKE provides slim-sized and flexible storage options, direct SAS RAID upgrades can be achieved via a unique slot without sacrificing expansion capability. ASUS PIKE further provides customers with multiple I/O options and RAID functionality, and various storage expansion choices for different applications.
Green and highly power efficient
Z9PE-D16/2L voltage regulation manages up to 90% peak power efficiency, with 88%+ during heavy CPU loading. This ensures high power efficiency for the entire system to help customers save operating costs.
Build in BMC engine, KVM-over-IP enabled by ASMB6 module for easy troubleshooting
The ASMB6-iKVM enables dashboard system health monitoring, remote power on/off and control, virtual media over LAN, and management LAN fail-over support. In addition, the ASMB6 function is based on BIOS-level access, so even if the server operating system is down or offline, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly web-based graphical interface through all major browsers.
Cutting-edge architecture
The Z9PE-D16/2L supports the latest Intel E5-2600 series processors (Sandy Bridge-EP). Through ASUS design and research expertise, it has been adapted to support upcoming E5-2600 V2 processors (Ivy Bridge-EP) to protect customer investment. Featuring 16-DIMM slots, it can take up to 512GB of DDR3 1600/1333/1066 RDIMM, and DDR3 1333/1066 UDIMM/LRDIMM memory, providing high computing capability. Additionally, with PCI Express 3.0 support, the Z9PE-D16/2L enables higher bandwidth to meet various demanding application requirements.
Server-class dual LAN connection
The new serverboard ships with the industrys first fully integrated Intel I350 dual-port Ethernet controller, which supports energy efficient Ethernet and DMA coalescing and offers reliable and fast network connections. With VT-d technology and new VMDq queuing, the Z9PE-D16/2Leasily manages virtualization applications while maintaining superior performance.
Specifications
Processor / System Bus |
2 x Socket 2011 Intel Xeon processor E5-2600 product family QPI 6.4 / 7.2 / 8.0 GT/s |
Core Logic |
Intel C602-A PCH |
Memory |
Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 512GB RDIMM Memory Type : DDR3, 1066/1333/1600, RDIMM DDR3, 1066/1333, UDIMM DDR3, 1066/1333, LRDIMM Memory Size : 2GB, 4GB, 8GB, 16GB RDIMM 2GB, 4GB, 8GB UDIMM 8GB, 16GB, 32GB LRDIMM |
Expansion Slots |
Total Slot : 6 Slot Location 1 : PCI-E x16 (Gen3 X8 Link) Slot Location 2 : PCI-E x16 (Gen3 X16 Link) Slot Location 3 : PCI-E x16 (Gen3 X16 Link) Slot Location 4 : PCI-E x16 (Gen3 X16 Link) Slot Location 5 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 6 is occupied Slot Location 6 : PCI-E x16 (Gen3 X8 Link), MIO supported Additional Slot 1 : PIKE Slot for Stroage expansion Follow SSI Location# |
Form Factor |
EEB (12"x13") |
ASUS Features |
Fan Speed Control Rack Ready (Rack and Pedestal Dual Use) ASWM Enterprise |
Storage |
SATA Controller : Intel C602-A AHCI 4 x SATA2 3Gb/s ports 2 x SATA3 6Gb/s ports Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) SATA Controller : Intel C602-A SCU 4 x SATA2 3Gb/s ports Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) SAS Controller : ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional) ASUS PIKE 2108 8-port SAS2 6G RAID card (Optional) |
Networking |
1 x Dual Port Intel Ethernet Controller i350-AM2 + 1 x Mgmt LAN |
Graphic |
Aspeed AST2300 with 16MB VRAM |
On Board I/O |
1 x TPM header 1 x PSU Power Connector , 24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector 1 x Management Connector , Onboard socket for management card 2 x USB pin header , Up to 4 Devices 1 x Internal A Type USB Port 8 x Fan Header , 4pin 1 x Chassis Intruder 2 x Serial Port Header 2 x SMBus |
Back I/O Ports |
2 x External USB Port 1 x VGA Port 2 * GbE LAN + 1 * Mgmt LAN 1 x PS/2, 1 KB/mouse |
Management Solution |
ASWM Enterprise ASMB6-iKVM for KVM-over-Internet |
EMI |
US (FCC, CFR47 Part 15, Class B) Europe (CE, EN55022 & EN55024) Australia (C-TICK) |
Environment |
Operation temperature: 10 ~ 35 Non operation temperature: -40 ~ 70 Non operation humidity: 20% ~ 90% ( Non condensing) |
Accessories |
Gift Box Pack : 1 x User's Guide 1 x ASUS Mainboard Support CD 1 x I/O Shield 1 x ASWM Enterprise SDVD 10 x SATA Data Cables 1 x ASMB6-iKVM Support CD 1 x ASMB6-iKVM User Guide 1 x USB to SATA DOM Power cable Bulk Pack : 1 x User's Guide 1 x ASUS Mainboard Support CD 1 x I/O Shield 1 x ASWM Enterprise SDVD 1 x ASMB6-iKVM Support CD 1 x ASMB6-iKVM User Guide |
Product SKUs |
Standard Gift Box Pack with ASMB6-ikvm Standard Bulk Pack with ASMB6-ikvm |
Monitoring |
CPU Temperature Fan RPM |
Note |
* Refer to ASUS Server AVL for latest update. ** Specifications are subject to change without notice |
