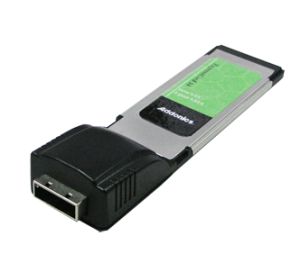

Addonics ADEC346G-MS Mini SAS - 4 Port SATA-III - ExpressCard34

No Longer Available

Part Number:

207896

(?) Brand:

Addonics Web Site

Manuf No:

ADEC346G-MS
ADEC346GMS

Shipping Weight:

0.5 KG (Includes product packaging)
Estimate Shipping

Date Added:

26/10/2012

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

ADEC346GMS, ADEC346G-MS

ADEC346G-MS

mini SAS / 4-port SATA ExpressCard 34

Overview

This mini SAS ExpressCar adapterr supports connecting up to four SATA devicesvia an external mini SAS (SFF-8088) connector.to a ExpressCard 34/54 slot on a Notebook computer. The controller supports throughput up to 6Gbps when installed into ExpressCard 2.0 slotson a Notebook computer. Together with Addonics' family of mini SAS cables, Notebook users can enjoy the fastest performance with any external storage devices using mini SAS connection.

Features:

Connect up to four SATA drive to ExpressCard slot via a single mini SAS cable
Fully compliant with SATA III, SATA II and SATA 1.0 standard
Maximum 6Gbits/sec*
Port Multiplier compatible
Support connecting up to 7 drives when combine with a Port Multiplier (limited to one PM that is set to individual drive configuration)
Maximum one RAID volume or 7 individual drives
RAID setting via the built-in RAID firmware utility during system boot up or via a Windows utility
Built-in RAID accelerator for fast performance
Includes an additional 34mm to 54mm bracket for solid fitting to ExpressCard/54 slot
Hot swappable - drive can be removed and added without system shut down or restart **
Supported OS:64bit / 32bitWindows 8, Win7, Vista, 2008, 2012, Linux and Mac 10.x with built-in AHCI inbox driver support, no additional driver required
Software driver for Windows XP 32/64-bit

Specifications:

6Gbps SATA III 4 Ports ExpressCard Adapter
Four SATA in one SFF-8088 external mini-SAS connector
Supports ExpressCard/34 and ExpressCard/54
Compliant with ExpressCard 2.0
Marvell 88SE9230
Supports SATA III transfer rate of 6.0Gbps, 3.0Gbps, 1.5Gbps
Supports SATA I & SATA II & SATA III HDD, SSD, Optical Drive and Blu-Ray Drive
Supports ATA and ATAPI commands
Supports Native Command Queuing (NCQ)
Supports totally max 7 drives or one RAID volume connected
Supports max one SATA FIS-based or Command-basedPort Multiplier and max 4 drives connected to PM for individual drive configuration
Hot-plug capability
64bit / 32bitWindows 8, Win7, Vista, 2008, 2012, Linux and Mac 10.x built-in AHCI inbox driver support, no additional driver required
Supports Windows XP driver
Fully RoHS compliant

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 year return to base

Full manufacturers warranty details are available at the manufacturers (Addonics) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
