TP-Link TD-VG3631 ADSL2+ Modem Wireless Router - 802.11n/b/g





TP-LINK's TD-VG3631 300Mbps Wireless N VoIP ADSL2+ Modem Router is the ultimate in home or office connectivity devices offering a plethora of functionality in one robust product. The device provides users with the ability to access and share an internet connection, using a wired or 300Mbps wireless connection. With its VoIP functions, users can save on phone costs using traditional land lines or VoIP telephony services with caller ID, call waiting, call holding, call forwarding, 3-way conference calls and voice mail functionality. Additionally, using the device's 2 USB sharing ports, users can share printers, files and media across the network or around the world with ftp functions as well as add USB storage to enable voicemail functions.





With ADSL2+ modem, 300Mbps wireless AP and VoIP telephony, the TD-VG3631 is everything your office needs to be fully connected. Users can share a high-speed wireless internet connection while holding conference calls and saving costs on long distance calls.

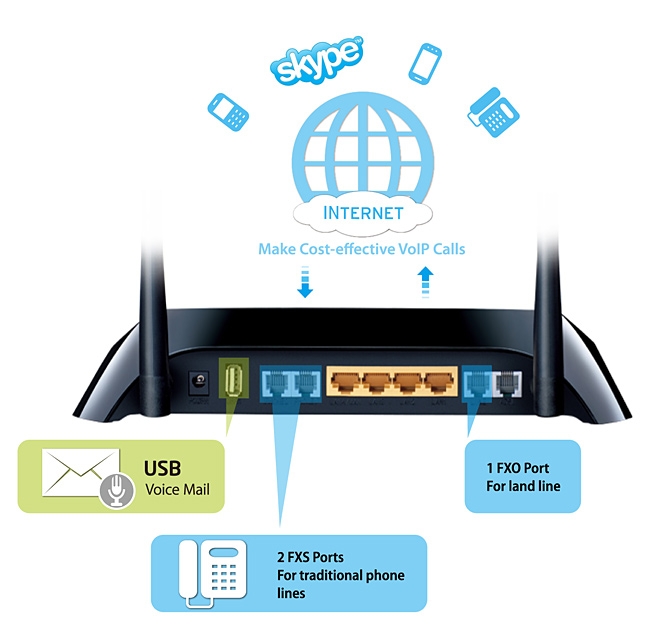

With 1 FXO Port and 2 FXS Ports, users can make the transition to VoIP with little to worry about in terms of backward compatibility with traditional land line phones. With the ability to access both VoIP networks and traditional land lines, users have the convenience of both worlds.







The TD-VG3631 is a fully functional telephony device supporting caller ID, call waiting, call holding, call forwarding, 3-way conference calls and voicemail functions, ensuring that users have access to all the features that they would enjoy with traditional telephone services while providing them with better management capabilities for those features.

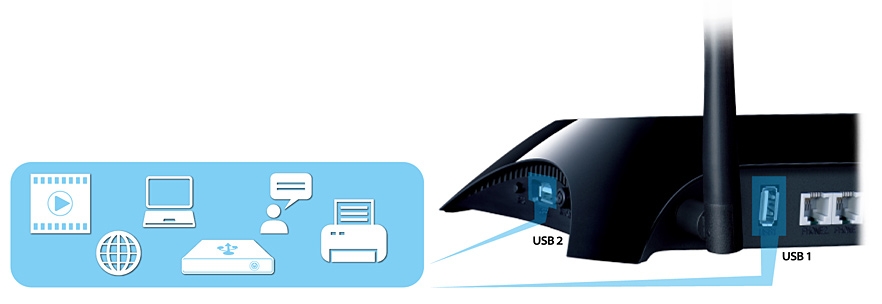

Using the TD-VG3631's multi-functional USB 2.0 ports, users can share printers, files and media either throughout the network at home with several different computers or even away, using the device's ftp server functions so that you never have to part with your files. Users have the added benefit of adding voicemail functionality to their device with attached USB storage that they can access over the internet.





Interchangeable LAN/WAN Port - Versatile Connectivity



The TD-VG3631 supports ADSL or Ethernet WAN connections (EWAN) that allow users to have the flexibility of different Internet connections among ADSL, cable or fiber modem using its interchangeable LAN/WAN port. This unique feature makes it easier when users need to change to fiber or cable services when necessary.

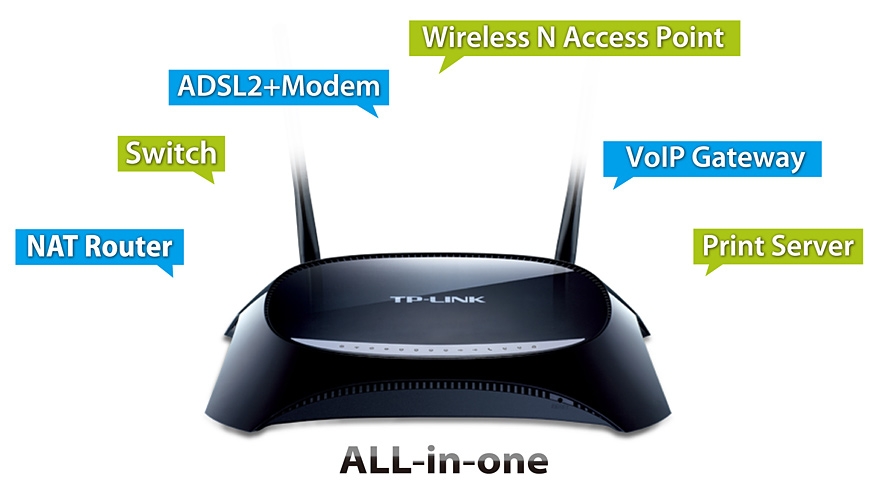

• High speed DSL modem, NAT router and wireless access point in one device providing a one-stop networking solution
• Wireless N speed up to 300Mbps makes it ideal for heavy bandwidth consuming or interruption sensitive applications like online gaming, Internet calls and even the HD video streaming
• Supporting both traditional land lines and VoIP network offers you a multiple choice when making phone calls.
• Various call features such as caller ID, call waiting, call holding, call forwarding, 3-way conference calls and voicemail
• USB 2.0 port supports Storage Sharing (Samba or FTP), Media Server, Print Server and multi accounts
• Ethernet WAN (EWAN) offers another broadband connectivity option for connecting to Cable, VDSL or Fiber modems
• IP based Bandwidth Control makes it easier for you to manage the bandwidth of devices that connected to the modem router
• Wi-Fi On/Off Button allows users to simply turn their wireless radio on or off
• Easy one-touch WPA wireless security encryption with the WPS button
• Easy Setup Assistant with multi-language support provides a quick & hassle free installation
• SPI and NAT firewall protects end-user devices from potential attacks from the Internet
• Interface Grouping binds specific LAN ports to PVCs for an enjoyable IPTV experience

HARDWARE FEATURES
Interface	4 10/100Mbps RJ45 Ports 4 RJ11 Ports 2 USB 2.0 Ports
Button	1 Power On/Off Button 1 WPS Button 1 Wi-Fi On/Off Button 1 RESET Button
External Power Supply	12VDC/1.5A
Dimensions (W X D X H)	256 177 51 mm (10.1 7.0 2.0 in.)
IEEE Standards	IEEE 802.3, 802.3u
ADSL Standards	Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT) ITU-T G.992.2(G.Lite) ITU-T G.994.1 (G.hs) ITU-T G.995.1
ADSL2 Standards	ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standards	ITU-T G.992.5
Antenna Type	Omni directional, Detachable, Reverse SMA
Antenna Gain	2 x 5dBi
VOIP Standards	SIP (RFC3261), ITU-T G.729/G.722/G.711a/G.711



WIRELESS FEATURES
Wireless Standards	IEEE 802.11b, 802.11g, 802.11n
Frequency	2.400-2.4835GHz
EIRP	<20dBm(EIRP)
Wireless Security	Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering





SOFTWARE FEATURES
Quality of Service	Bandwidth Control
Port Forwarding	Virtual server, DMZ, ACL(Access Control List)
VPN Pass-Through	PPTP, L2TP, IPSec Pass-through
ATM Features	ATM Forum UNI3.1/4.0 PPP over ATM (RFC 2364) PPP over Ethernet (RFC2516) IPoA (RFC1577/2225) PVC - Up to 8 PVCs
Advanced Features	Ethernet WAN (EWAN) Parent Control Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt VBR-nrt Dynamic Host Conguration Protocol (DHCP), DHCP relay Network Address Translation (NAT) PVC/Ethernet Port Grouping Static Routing, RIP v1/v2 (optional) DNS Relay, DDNS IGMP snooping V1/2 IGMP Multicast UPnP
Security	NAT Firewall SPI Firewall MAC / IP / Packet / URL Filtering
VOIP Features	Two RJ-11 FXS ports for connecting to regular telephones One RJ-11 FXO port for PSTN Fixed-line Call forwarding, Call waiting, Voice activity detection (VAD), 3-way conference call, etc. USB Voicemail
USB Sharing	Storage Sharing FTP Server Media Server Print Server
Management	Web Based Configuration(HTTP) Remote management Telnet management Command Line Interface SSL for TR-069 SNMP v1/2c SNMP over EOC Web Based Firmware Upgrade CWMP(TR-069) Diagnostic Tools



OTHERS
Certification	CE, FCC, RoHS
Package Contents	300Mbps Wireless N VoIP ADSL2+ Modem Router TD-VG3631 External Splitter RJ-11 Telephone Cable RJ-45 Ethernet Cable Telephony Feature Guide Quick Installation Guide Resource CD Power Adapter
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux
Environment	Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
